AHR 500 B420 , AHR500B420

Second. Nominal Signal[DC TRMS:Current 4-20mA]
  • MacroQuest Part#AHR 500 B420
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $268.28 - $307.80
    / Pieces
    |
    Pieces(Min. Order)
    1-9 Pieces $307.80
    10-99 Pieces $298.95
    >=100 Pieces $268.28
    Quantity:
    In Stock
    $268.28
    (0 In Stock)
    Available
    $268.28
    LT: 12-16 weeks
    (649 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

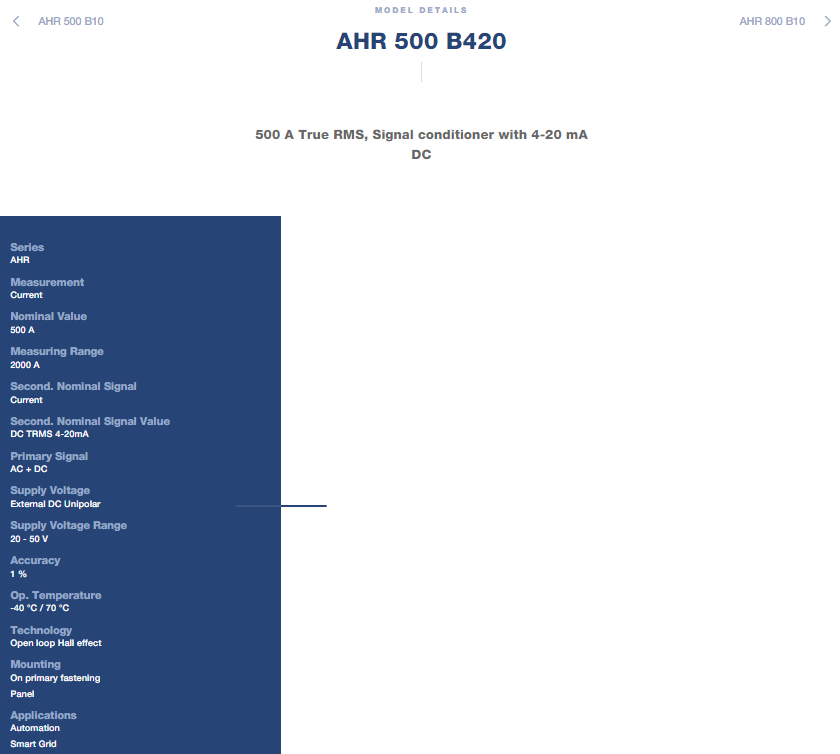

    LEM AHR 500 B420 AHR Series Split Core Current Transducer

    LEM AHR 500 B420 Product Overview

    The AHR 500 B420 is an open-loop Hall effect current transducer from LEM's AHR Series, designed for the electronic measurement of DC and distorted AC waveform currents with galvanic isolation between the primary circuit (power) and the secondary circuit (measurement). This split core transducer features a True RMS 4-20mA current output and a signal conditioner integrated into a single housing.

    Rated for 500 A nominal with a measuring range of ±2000 A peak, it outputs a DC 4-20 mA signal with ±1% accuracy. Response time is less than 150 ms and bandwidth is DC, 20 to 6000 Hz. Supply voltage range is +20 to 50 V DC. Mass is 260 g and operating temperature ranges from -40°C to +70°C. Insulation test voltage is 5.2 kV RMS at 50 Hz for 1 minute with 11 mm creepage and clearance. The large 104 x 40 mm aperture accommodates busbars for non-contact measurement.



    LEM AHR 500 B420 Key Specifications

    Parameter

    Value

    Rated current (IPN)

    500 A

    Measuring range (IPM)

    ±2000 A (peak)

    Output signal

    DC True RMS 4-20 mA

    Supply voltage (VC)

    +20 to 50 V DC

    Accuracy (X)

    ±1 %

    Linearity (εL)

    ±1.0 %

    Response time (tr)

    < 150 ms

    Bandwidth (BW)

    DC, 20 to 6000 Hz

    Insulation (Vd)

    5.2 kV RMS / 50 Hz / 1 min

    Creepage/Clearance (dCp/dCl)

    11 mm

    Aperture

    104 x 40 mm

    Operating temp (TA)

    -40°C to +70°C

    Mass (m)

    260 g

    Mounting

    Busbar or panel mounting



    LEM AHR 500 B420 Key Advantages

    The AHR 500 B420 employs open-loop Hall effect technology with ASIC signal conditioning, delivering ±1% accuracy for DC and distorted AC waveforms while providing high galvanic isolation between primary and secondary circuits. The split core construction with 104 x 40 mm aperture enables easy installation without disconnecting existing busbars, eliminating insertion loss in retrofit applications. The True RMS 4-20 mA output provides accurate measurement of non-sinusoidal waveforms typical in VFD and SCR applications. The 2000 A peak measuring range accommodates high overload conditions, while the wide -40°C to +70°C operating temperature range ensures reliable performance in harsh industrial environments. The 5.2 kV RMS isolation and UL94-V0 recognized insulating plastic case ensure safe operation and protection for downstream equipment.



    LEM AHR 500 B420 Typical Applications

    AC power supplies and motors: True RMS current sensing for accurate input power monitoring
    VFD controlled loads: output current monitoring to indicate motor and attached load operating conditions
    SCR or switch-mode rectifier output current measurement
    Renewable energy installations and backup batteries: continuous condition monitoring allowing automatic failure detection
    Energy management and smart grid systems
    Automation and process control applications
    Variable speed drive and frequency converter monitoring
    UPS systems and power quality monitoring



    Why Choose the LEM AHR 500 B420?

    The AHR 500 B420 combines a 500 A rated current and ±2000 A peak measuring range with a loop-powered True RMS 4-20 mA output in a compact split core package. Manufactured by LEM, it delivers stable, accurate, and safe current measurement for energy and automation applications. The split core design offers easy installation without system interruption, while the 4-20 mA process current output provides seamless integration with PLCs and control systems. The True RMS measurement capability ensures accurate monitoring of distorted AC waveforms found in modern variable speed drives and power electronics, making it an ideal choice for demanding industrial and renewable energy applications.



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Carlos
    Apr 12, 2026
    Reliable company and reliable guy.
    Varsha
    Feb 08, 2026
    Absolutely believe.
    Jazlyn
    Dec 05, 2025
    Great Supplier. No Problems, will order next time.
    Latisha
    Jul 22, 2025
    Satisfied as always!
    Madison
    Jun 02, 2025
    This is a highly efficient company that can solve customer problems in record time. They work tirelessly to provide prompt solutions that exceed expectations.
     123
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
