AK 50 B10 , AK50B10

Second. Nominal Signal[DC RMS:Voltage 0-10V]
  • MacroQuest Part#AK 50 B10
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $251.55
    / Pieces
    |
    Pieces(Min. Order)
    Contact us for quotation:
    quantity
    $0.00
    (0 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

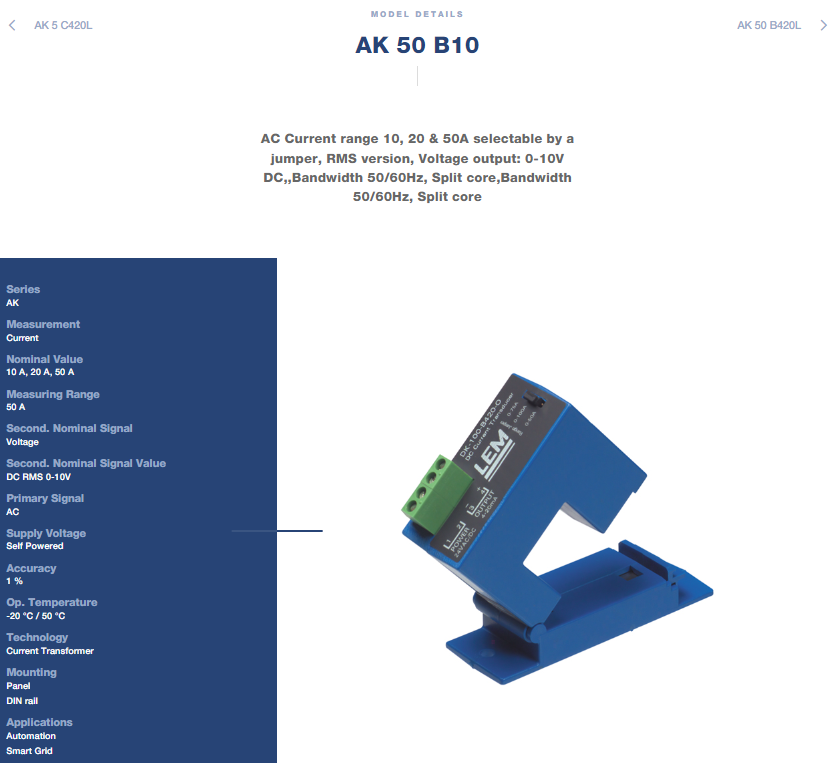

    LEM AK 50 B10 AK-B Series Split Core Current Transducer

    LEM AK 50 B10 Product Overview

    The AK 50 B10 is a split-core current transducer from LEM's AK-B Series, designed for the electronic measurement of AC sinusoidal waveforms with galvanic isolation between the primary (high power) and secondary (electronic) circuits. The transducer features jumper-selectable ranges and is self-powered, requiring no external supply voltage.

    Rated for 10 A, 20 A, or 50 A nominal via jumper selection, it outputs a 10 Vdc analog voltage signal with ±1% accuracy. Response time is less than 100 ms and bandwidth is 50-60 Hz. Operating temperature ranges from -20°C to +50°C with 0-95% RH. Mass is 120 g and insulation test voltage is 3 kV AC. The large aperture design simplifies installation without interrupting the primary circuit.



    LEM AK 50 B10 Key Specifications

    Parameter

    Value

    Rated current (IPN)

    10 A, 20 A, 50 A (jumper selectable)

    Output signal

    10 Vdc analog voltage

    Supply voltage (VC)

    Self-powered

    Accuracy (XG)

    ±1 %

    Response time (tr)

    < 100 ms @ 90% of IPN

    Bandwidth (BW)

    50-60 Hz

    Insulation (Vd)

    3 kV AC, 50 Hz, 1 min

    Rated voltage (Vb)

    150 V AC (CAT III, PD2)

    Aperture

    Large aperture design

    Operating temp (TA)

    -20°C to +50°C (0-95% RH)

    Storage temp (TS)

    -20°C to +85°C

    Mass (m)

    120 g

    Mounting

    Panel mounting



    LEM AK 50 B10 Key Advantages

    The AK 50 B10 employs average responding measurement technology, delivering ±1% accuracy for AC sinusoidal waveforms while providing galvanic isolation between primary and secondary circuits for enhanced safety. The jumper-selectable 10 A, 20 A, and 50 A ranges offer flexibility for various applications without requiring multiple transducers. The self-powered design eliminates the need for a separate supply voltage, simplifying installation and reducing system complexity. The split-core construction with large aperture enables easy mounting without disconnecting existing cables, minimizing system downtime. The 3 kV AC insulation ensures safe operation in industrial environments.



    LEM AK 50 B10 Typical Applications

    Automation and process control systems
    Panel meters for power consumption monitoring
    Data loggers for remote current recording
    Motor current monitoring and protection
    Building automation and energy management
    Imaging and vision system power monitoring
    Industrial control cabinets
    HVAC equipment monitoring



    Why Choose the LEM AK 50 B10?

    The AK 50 B10 combines jumper-selectable 10 A, 20 A, and 50 A current ranges with 10 Vdc analog output in a compact, split-core package. Manufactured by LEM, it delivers stable, accurate, and safe AC current measurement for industrial and automation applications. The self-powered design offers simplified installation and maintenance, while the large aperture and panel mount configuration provide flexible integration options.



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Osborn
    Apr 05, 2026
    Amazing quality!
    Zenia
    Jan 21, 2026
    Simon is the best. We've worked with him for a long time. Great company and one you can trust.
    Ompaa
    Aug 20, 2025
    Fixed supplier
    Vilma
    May 13, 2025
    Very reliable supplier, excellent communication
    Zandra
    Jul 25, 2024
    Great product and fast shipping!
     12
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
