AK 50 B420L , AK50B420L

Second. Nominal Signal[DC RMS:Current 4-20mA]
  • MacroQuest Part#AK 50 B420L
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $244.59 - $328.89
    / Pieces
    |
    Pieces(Min. Order)
    1-9 Pieces $328.89
    10-99 Pieces $272.55
    >=100 Pieces $244.59
    Quantity:
    In Stock
    $244.59
    (0 In Stock)
    Available
    $244.59
    LT: 12-16 weeks
    (456 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

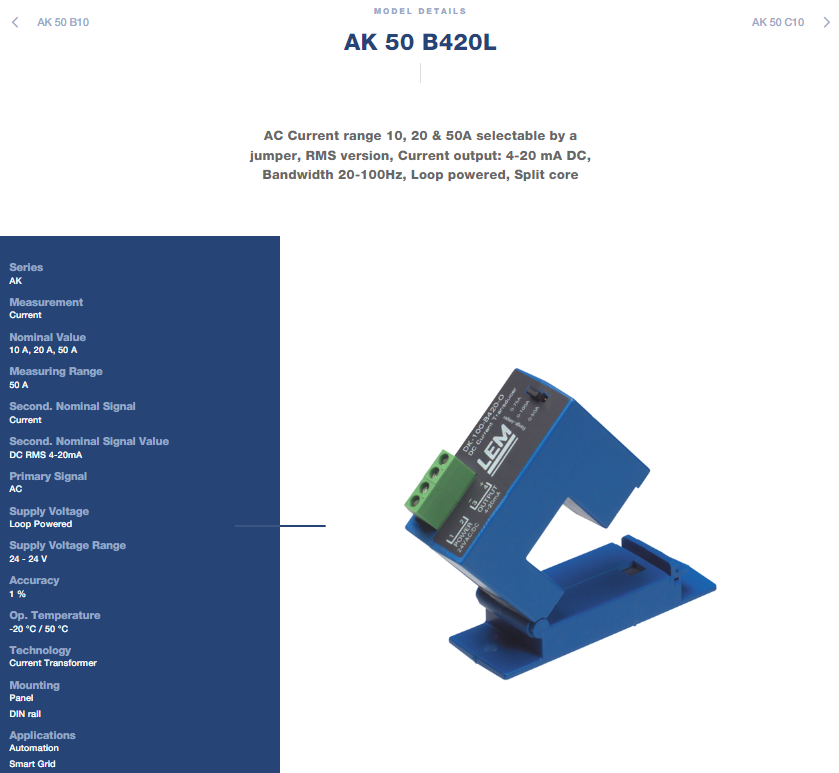

    LEM AK 50 B420L Split-Core AC Current Transducer

    LEM AK 50 B420L Product Overview

    The AK 50 B420L is a split-core AC current transducer from LEM's AK series, designed for the electronic measurement of AC sinusoidal currents with galvanic isolation between primary and secondary circuits. The B420L variant features jumper selectable measuring ranges (10A, 20A, 50A) and a loop-powered 4-20mA current output.

    Rated for 50 A nominal with selectable 10A/20A/50A measuring ranges, it outputs 4-20mA with ±1% accuracy. Bandwidth is 20Hz to 100Hz and response time is 300ms. Supply voltage is 24V DC (loop-powered). Mass is 120g and operating temperature is -20°C to +50°C. Insulation test voltage is 3kV with 150V AC rated voltage (CAT III, PD2).



    LEM AK 50 B420L Key Specifications

    Parameter

    Value

    Rated current (IPN)

    10A, 20A, 50A (Jumper selectable)

    Measuring range

    Jumper selectable (10/20/50A)

    Output signal

    4-20mA DC (Loop-powered)

    Accuracy (XG)

    ±1 %

    Response time (tr)

    300 ms

    Bandwidth (BW)

    20 ~ 100 Hz

    Supply voltage (UC)

    24V DC (Loop-powered)

    Insulation (Vd)

    3 kV RMS

    Rated voltage (Vb)

    150V AC (CAT III, PD2)

    Operating temp (TA)

    -20°C to +50°C

    Mass (m)

    120 g

    Mounting

    Panel mount (DIN rail optional)



    LEM AK 50 B420L Key Advantages

    The AK 50 B420L employs air-core technology delivering ±1% accuracy with average-responding (RMS calibrated) measurement for sinusoidal AC currents. The split-core design enables quick installation on existing cables without system interruption. The loop-powered 4-20mA output simplifies wiring and reduces installation costs for industrial control systems. Jumper-selectable ranges (10A/20A/50A) provide flexibility without hardware changes. The AK series provides average-responding (RMS calibrated) measurement for sinusoidal currents, distinguishing it from the AKR series which provides True RMS for non-sinusoidal or distorted VFD/SCR waveforms. The part is Active, RoHS compliant, and available through authorized distributors with a standard lead time of 10 weeks.



    LEM AK 50 B420L Typical Applications

    AC sinusoidal current measurement in automation systems and smart grid
    Panel meters and power management
    Data loggers and remote monitoring
    Renewable energy systems and power supplies
    Standard AC current monitoring applications



    Why Choose the LEM AK 50 B420L?

    The AK 50 B420L combines ±1% accuracy, jumper-selectable ranges 10A/20A/50A, loop-powered 4-20mA output, and split-core design in a compact panel-mount package weighing 120g. Manufactured by LEM, it delivers stable, accurate, and safe AC current measurement for sinusoidal current applications. The B420L variant is distinguished by its 4-20mA loop-powered output, designed for seamless integration with PLCs, DCS, and SCADA systems where a current loop signal is preferred.



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Galloway
    Feb 17, 2026
    Very good business partner
    Frank
    Oct 09, 2025
    Good Company&Business Partner
    Keila
    Mar 30, 2025
    I am very satisfied, good
    Irine
    Sep 02, 2024
    Great Company. Thank you Alice for your support.
    West
    Mar 07, 2024
    Global Distributor Partner!
     12
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
