AKR 5 C420L , AKR5C420L

Second. Nominal Signal[DC TRMS:Current 4-20mA]
  • MacroQuest Part#AKR 5 C420L
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $471.42 - $557.15
    / Pieces
    |
    Pieces(Min. Order)
    1-9 Pieces $557.15
    10-99 Pieces $514.28
    >=100 Pieces $471.42
    Quantity:
    In Stock
    $471.42
    (0 In Stock)
    Available
    $471.42
    LT: 12-16 weeks
    (536 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

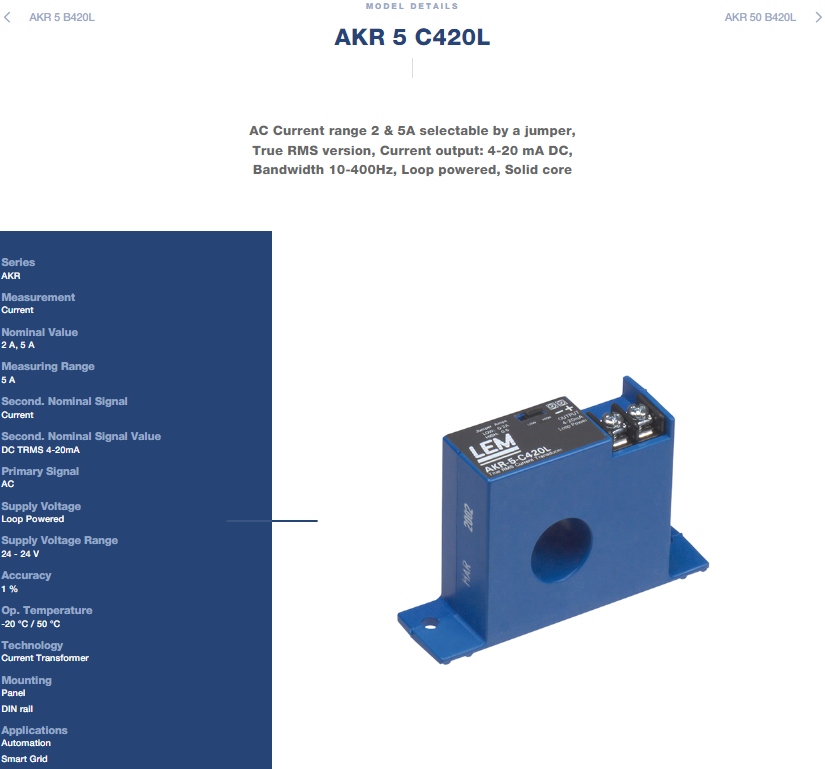

    LEM AKR 5 C420L True RMS Solid-Core AC Current Transducer


    LEM AKR 5 C420L Product Overview

    The AKR 5 C420L is a solid-core AC current transducer from LEM's AKR True RMS series, designed for the electronic measurement of AC currents with complex, non-sinusoidal waveforms (including distorted VFD and SCR outputs) and galvanic isolation between primary and secondary circuits . The C420L variant features jumper selectable measuring ranges (2A, 5A) and a loop-powered True RMS 4-20mA current output .

    Rated for 5 A nominal with selectable 2A/5A measuring ranges, it outputs 4-20mA with ±1% accuracy . Bandwidth is 10Hz to 400Hz and delay time to 90% of final output is <600ms . Supply voltage is 24V DC (loop-powered) . Mass is 90g and operating temperature is -20°C to +50°C . Insulation test voltage is 3kV with 150V AC rated voltage (CAT III, PD2) .



    LEM AKR 5 C420L Key Specifications

    Parameter

    Value

    Rated current (IPN)

    2A, 5A (Jumper selectable)

    Measuring range

    Jumper selectable (2/5A)

    Output signal

    4-20mA DC (Loop-powered, True RMS)

    Accuracy (XG)

    ±1 %

    Delay time to 90% (tD 90)

    <600 ms

    Bandwidth (BW)

    10 ~ 400 Hz

    Supply voltage (UC)

    24V DC (Loop-powered)

    Insulation test (Vd)

    3 kV RMS

    Rated voltage (Vb)

    150V AC (CAT III, PD2)

    Aperture

    19 mm

    Operating temp (TA)

    -20°C to +50°C

    Mass (m)

    90 g

    Mounting

    Panel mount (2 holes Ø4.5mm)



    LEM AKR 5 C420L Key Advantages

    The AKR 5 C420L employs True RMS responding technology, delivering accurate measurement on distorted VFD and SCR waveforms where conventional average-responding sensors fail . True RMS integrates the actual waveform over time, providing reliable readings even with numerous spikes and dips per cycle. The loop-powered 4-20mA output simplifies wiring and reduces installation costs for industrial control systems . Jumper-selectable ranges (2A/5A) provide flexibility without hardware changes. The solid-core design delivers precision measurement with no insertion losses, and 3kV isolation ensures safety in industrial environments . The device complies with IEC 61010-1 safety and EN 61326 EMC standards .



    LEM AKR 5 C420L Typical Applications

    VFD Controlled Loads (motor and load monitoring from VFD output)
    SCR Controlled Loads (phase angle fired or burst fired SCR systems)
    Switching Power Supplies and Electronic Ballasts
    Automation systems and data loggers
    Panel meters and power management



    Why Choose the LEM AKR 5 C420L?

    The AKR 5 C420L combines True RMS accuracy, jumper-selectable ranges 2A/5A, loop-powered 4-20mA output, and solid-core design in a compact panel-mount package weighing 90g. Manufactured by LEM, it delivers stable, accurate, and safe AC current measurement for VFD, SCR, and other non-linear loads. The C420L variant is distinguished by its True RMS capability and jumper-selectable ranges, designed for applications where waveform distortion is present . The part is Active, RoHS compliant, and available through authorized distributors.



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Jarred
    Mar 01, 2026
    Great company and responsible person,can be trust!look forward to doing more business with you.
    Patia
    Dec 08, 2025
    Perfect FPGAs.
    Zoe
    Mar 21, 2025
    Great Seller !
    Marcus
    Apr 30, 2024
    smooth order handling! Thanks
    Young
    Mar 14, 2024
    Good company, Elsa is professional, quote quickly with good price
     12
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
    pop_close
    pop_main
    Stay In The Know
    Enter your email to hear from us about Product list, Latest Products and Customer application examples!
