AKR 50 C420L , AKR50C420L

Second. Nominal Signal[DC TRMS:Current 4-20mA]
  • MacroQuest Part#AKR 50 C420L
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $471.42 - $557.15
    / Pieces
    |
    Pieces(Min. Order)
    1-9 Pieces $557.15
    10-99 Pieces $514.28
    >=100 Pieces $471.42
    Quantity:
    In Stock
    $471.42
    (0 In Stock)
    Available
    $471.42
    LT: 12-16 weeks
    (721 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

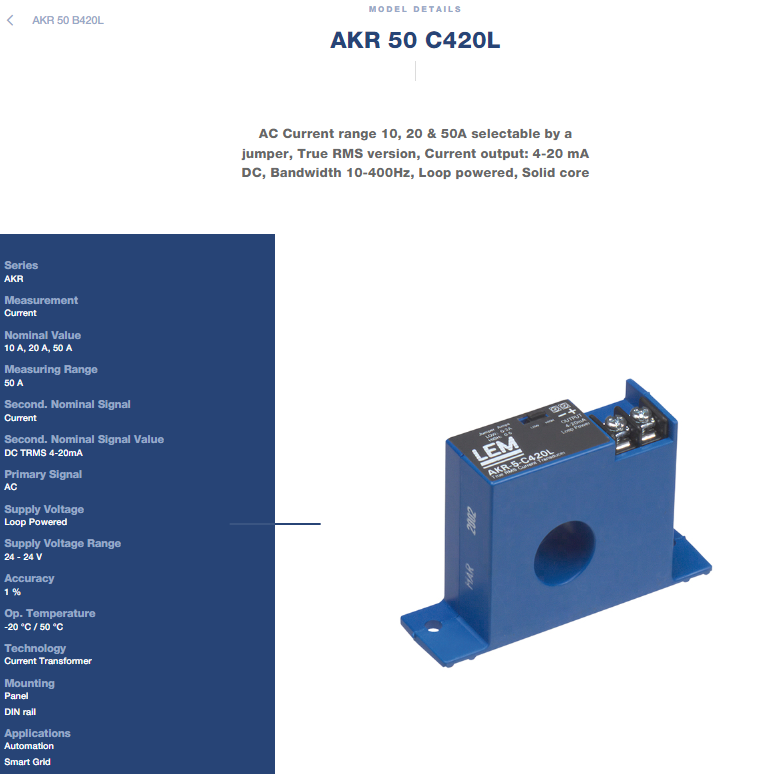

    LEM AKR 50 C420L AKR Series Solid Core Current Transducer

    LEM AKR 50 C420L Product Overview

    The AKR 50 C420L is a solid-core current transducer from LEM's AKR Series, designed for the electronic measurement of AC waveforms with galvanic isolation between the primary and secondary circuits . This True RMS transducer features a loop-powered 4-20mA output and jumper-selectable ranges for accurate measurement of non-sinusoidal waveforms .

    Rated for 10 A, 20 A, or 50 A nominal via jumper selection, it outputs a DC 4-20 mA signal with ±1% accuracy . Frequency bandwidth is 10 to 400 Hz . Supply voltage is 24 V DC loop-powered . Mass is 90 g and operating temperature ranges from -20°C to +50°C . Insulation test voltage is 3 kV AC . The 19 mm aperture accommodates standard conductors .



    LEM AKR 50 C420L Key Specifications

    Parameter

    Value

    Rated current (IPN)

    10 A, 20 A, 50 A (jumper selectable)

    Measuring range (IPM)

    50 A

    Output signal

    DC True RMS 4-20 mA

    Supply voltage (VC)

    24 V DC loop-powered

    Accuracy (X)

    ±1 %

    Response time (tr)

    < 600 ms

    Bandwidth (BW)

    10 to 400 Hz

    Insulation (Vd)

    3 kV AC

    Aperture

    19 mm

    Operating temp (TA)

    -20°C to +50°C

    Mass (m)

    90 g

    Mounting

    Panel mounting



    LEM AKR 50 C420L Key Advantages

    The AKR 50 C420L employs current transformer technology with True RMS responding, delivering ±1% accuracy for distorted AC waveforms while providing galvanic isolation between primary and secondary circuits . The jumper-selectable 10 A, 20 A, and 50 A ranges offer flexibility for various applications without requiring multiple transducers . The loop-powered 4-20 mA output simplifies wiring and integrates seamlessly with PLCs and control systems . The 19 mm aperture accommodates standard conductors, and the panel mounting design enables robust integration into control cabinets. The 3 kV AC insulation ensures safe operation in industrial environments .



    LEM AKR 50 C420L Typical Applications

    VFD controlled loads: output current monitoring to indicate motor and attached load operating conditions
    SCR controlled loads: accurate measurement of phase-angle fired or burst-fired SCR systems
    Switching power supplies and electronic ballasts: True RMS sensing for precise input power measurement
    Automation and process control applications
    Smart grid and energy management systems
    Panel meters for power consumption display
    Data loggers requiring loop-powered transducers
    Motor current monitoring and protection



    Why Choose the LEM AKR 50 C420L?

    The AKR 50 C420L combines jumper-selectable 10 A, 20 A, and 50 A current ranges with a loop-powered True RMS 4-20 mA output in a compact solid-core package . Manufactured by LEM, it delivers stable, accurate, and safe AC current measurement for industrial and automation applications. The True RMS measurement capability ensures accurate monitoring of distorted AC waveforms found in modern variable speed drives and power electronics, making it an ideal choice for demanding energy and automation applications .



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Emeline
    Apr 22, 2026
    Great company ! Very professional and parts always come new & original. Special thanks to Elsa !
    Xavier
    Mar 26, 2026
    Trustworthy, Recommend to All !
    Queenie
    Apr 04, 2025
    Good quality, good service.
    Mindy
    Dec 31, 2024
    Excellent and reliable company
    Warren
    Aug 27, 2023
    Good, Reliable, trustworthy people to deal with!
     123
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
