APR 400 B420L , APR400B420L

Second. Nominal Signal[DC TRMS:Current 4-20mA]
  • MacroQuest Part#APR 400 B420L
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $117.42 - $125.46
    / Pieces
    |
    Pieces(Min. Order)
    1-49 Pieces $125.46
    >=50 Pieces $117.42
    Quantity:
    In Stock
    $117.42
    (0 In Stock)
    Available
    $117.42
    LT: 12-16 weeks
    (1367 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

    LEM APR 400 B420L APR Series Split Core Current Transducer

    LEM APR 400 B420L Product Overview

    The APR 400 B420L is a split-core current transducer from LEM's APR Series, designed for the electronic measurement of distorted AC waveforms with galvanic isolation between the primary and secondary circuits . This True RMS transducer features a loop-powered 4-20mA output and incorporates PRiME (Rogowski) air-core technology for accurate measurement of non-sinusoidal waveforms .

    Rated for 200 A, 300 A, or 400 A nominal via switch selection, it outputs a DC 4-20 mA signal with ±1% accuracy and ±0.5% linearity . Response time is typically less than 150 ms and bandwidth is 30 Hz to 6 kHz . Supply voltage is 12 to 24 V DC loop-powered . Mass is 90 g and operating temperature ranges from -20°C to +60°C . Insulation test voltage is 5 kV RMS at 50 Hz for 1 minute . The 18 mm diameter aperture accommodates standard cables and eliminates insertion loss .

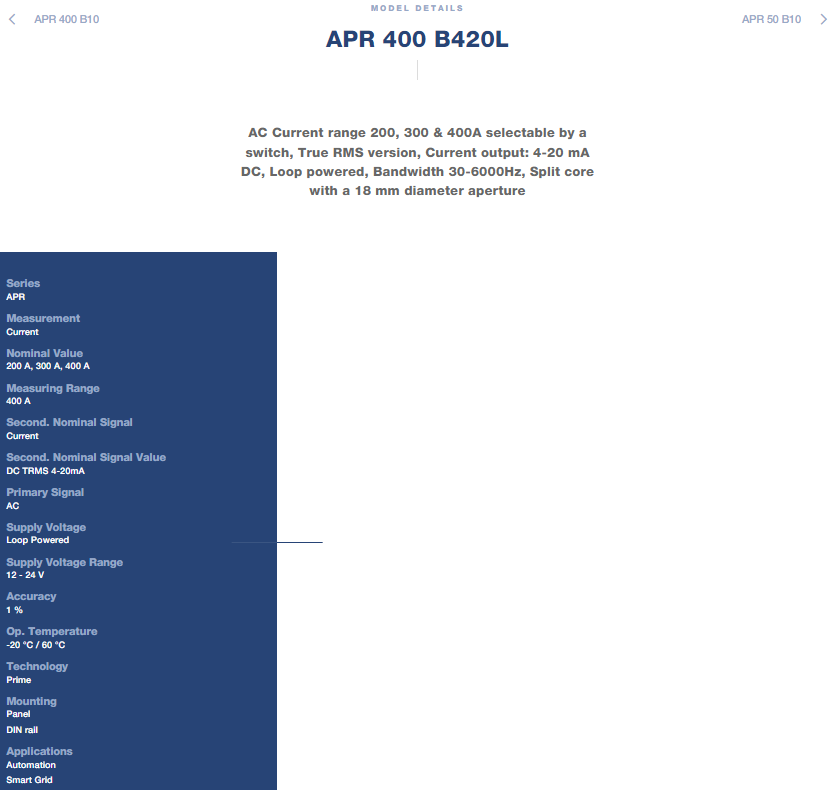

    LEM APR 400 B420L Key Specifications

    Parameter

    Value

    Rated current (IPN)

    200 A, 300 A, 400 A (switch selectable)

    Measuring range (IPM)

    400 A

    Output signal

    DC True RMS 4-20 mA

    Supply voltage (VC)

    12 to 24 V DC loop-powered

    Accuracy (X)

    ±1 %

    Linearity (εL)

    ±0.5 %

    Response time (tr)

    < 150 ms (typical)

    Bandwidth (BW)

    30 Hz to 6 kHz

    Insulation (Vd)

    5 kV RMS / 50 Hz / 1 min

    Aperture

    18 mm

    Operating temp (TA)

    -20°C to +60°C

    Mass (m)

    90 g

    Mounting

    Panel or DIN rail mounting



    LEM APR 400 B420L Key Advantages

    The APR 400 B420L employs PRiME Rogowski air-core technology, delivering True RMS measurement for accurate monitoring of distorted AC waveforms typical in VFD and SCR applications . The split core construction with 18 mm aperture enables fast, non-intrusive installation without disconnecting existing cables . The switch-selectable 200 A, 300 A, and 400 A ranges offer application flexibility without requiring multiple transducers . The loop-powered 4-20 mA output simplifies wiring and integrates seamlessly with PLCs and control systems . The 5 kV RMS insulation and UL94-V0 recognized insulating plastic case ensure safe operation and protection for downstream equipment .



    LEM APR 400 B420L Typical Applications

    VFD controlled loads: output current monitoring to indicate motor and attached load operating conditions
    SCR controlled loads: accurate measurement of phase-angle fired or burst fired SCR systems
    Switching power supplies and electronic ballasts: True RMS sensing for precise input power measurement
    Automation and process control applications
    Smart grid and energy management systems
    Panel meters for power consumption display
    Data loggers requiring loop-powered transducers
    Motor current monitoring and protection



    Why Choose the LEM APR 400 B420L?

    The APR 400 B420L combines switch-selectable 200 A, 300 A, and 400 A current ranges with a loop-powered True RMS 4-20 mA output in a compact split core package. Manufactured by LEM, it delivers stable, accurate, and safe AC current measurement for demanding energy and automation applications . The split core design offers easy installation without system interruption, while the PRiME Rogowski technology provides accurate measurement of distorted AC waveforms found in modern variable speed drives and power electronics .



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Ingrid
    Feb 11, 2026
    Elsa is a solid supplier. I have done business with them for at least the past 4-5 years. Always good product.
    Yolande
    Jan 26, 2026
    Worldway's Good partner
    Raija
    Nov 05, 2025
    the Parts are delivered super fast, carefully packaged, and trustworthy!
    Vida
    Aug 10, 2025
    Best seller
    Upton
    Nov 05, 2024
    Good company and good parts
     123
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
    pop_close
    pop_main
    Stay In The Know
    Enter your email to hear from us about Product list, Latest Products and Customer application examples!
