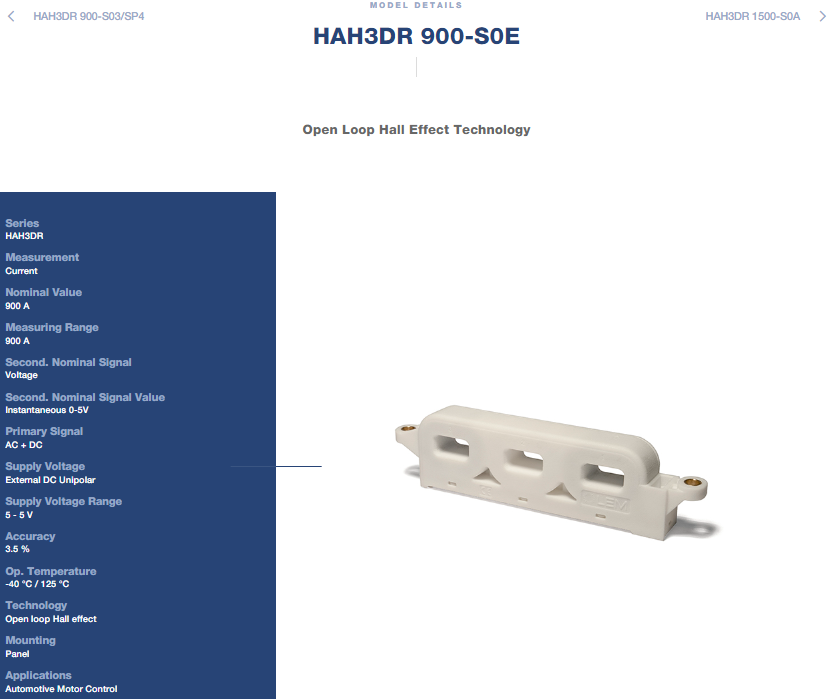

    LEM HAH3DR 900-S0E HAH3DR S0E Open-Loop Current Transducer


    900A Rated Current x ±900A Measuring Range — High-Performance Open-Loop Sensor for Automotive Motor Control



    LEM HAH3DR 900-S0E Product Overview

    The HAH3DR 900-S0E is an open-loop Hall effect current transducer from LEM's HAH3DR S0E series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary and secondary circuits . This panel-mount sensor is specifically engineered for high-power automotive motor control and traction inverter applications, featuring a high level of integration within the HAH3 series . The S0x design is optimized for installation on thick busbars, making it suitable for systems where the sensor is located further from the inverter module .

    Rated for 900 A nominal with a ±900 A measuring range, it outputs a ratiometric voltage of 0-5 V (instantaneous) with 3.5% accuracy and ±1% linearity . Sensitivity is 2.22 mV/A . Response time is 6 µs and bandwidth is DC to 40 kHz . Supply voltage is +5 V (4.75 to 5.25 V) . The sensor's maximum supply current is 60 mA . Operating temperature is -40°C to +125°C . The sensor features unidirectional polarization .



    LEM HAH3DR 900-S0E Key Specifications

    Parameter

    Value

    Rated current (IPN)

    900 A

    Measuring range (IPM)

    ±900 A

    Output signal (VOUT)

    0-5 V (ratiometric)

    Sensitivity

    2.22 mV/A

    Supply voltage (VC)

    4.75 … 5.25 V

    Accuracy (XG)

    ±3.5%

    Linearity (EL)

    ±1%

    Response time (tr)

    6 µs

    Bandwidth (BW)

    DC … 40 kHz

    Operating temp (TA)

    -40°C … +125°C

    Mounting

    Panel



    LEM HAH3DR 900-S0E Key Advantages

    The HAH3DR 900-S0E employs open-loop Hall effect technology with a proprietary ASIC, delivering reliable performance for motor control applications . The ±900 A range provides accurate measurement for nominal currents up to 900 A, while the 6 µs response time and 40 kHz bandwidth capture fast-changing motor drive and switching waveforms . The panel-mount design with S0x housing is specifically tailored for thick busbar installation . The ratiometric output allows the sensor to share the same power supply as the ADC, preventing errors due to reference mismatch . The unipolar +5 V supply simplifies system power design.



    LEM HAH3DR 900-S0E Typical Applications

    xEV traction inverters
    DC link current measurement
    Phase current measurement in motor drives
    High power motor control
    Three-phase inverters
    Automotive power conversion systems



    Why Choose the LEM HAH3DR 900-S0E?

    The HAH3DR 900-S0E combines a 900 A nominal rating with a ±900 A measuring range and 3.5% accuracy in a panel-mount package optimized for automotive xEV and motor control applications . Manufactured by LEM, it delivers stable, accurate, and safe current measurement for demanding high-power systems. The open-loop Hall effect design with proprietary ASIC offers excellent linearity, low offset, and high global accuracy specified over temperature and lifetime . The S0E variant's panel-mount design and compatibility with thick busbars provide robust integration for automotive traction inverters and high-power motor control applications .



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Klein
    Apr 10, 2026
    Good quality, fast delivery,
    Valencia
    Mar 15, 2026
    Good company to cooperate
    Whitfield
    Nov 22, 2025
    This is a good company. Simon is very honest and professional. He gives you quick response and great attitude. Keep up the good work!
    Perry
    May 15, 2025
    Perfect Business Partner
    Elise
    Dec 11, 2023
    Great Company. Thank you Alice for your support.
     123
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
    pop_close
    pop_main
    Stay In The Know
    Enter your email to hear from us about Product list, Latest Products and Customer application examples!
