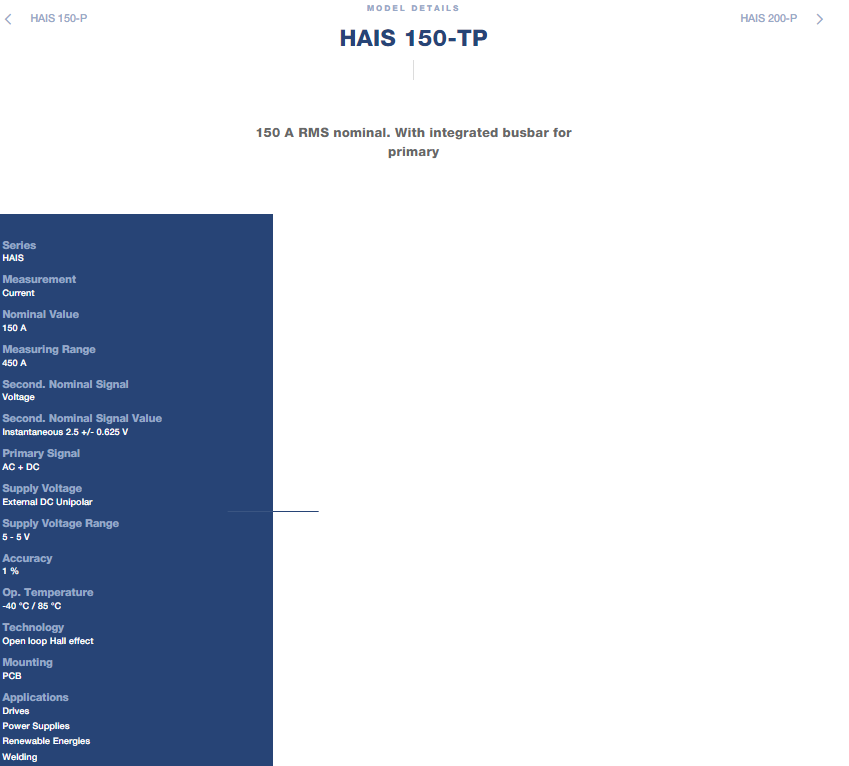

HAIS 150-TP , HAIS150-TP

Second. Nominal Signal[Instantaneous:Voltage 2.5 +/- 0.625 V]
  • MacroQuest Part#HAIS 150-TP
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $22.72 - $27.55
    / Pieces
    |
    Pieces(Min. Order)
    1-19 Pieces $27.55
    20-99 Pieces $25.14
    >=100 Pieces $22.72
    Contact us for quotation:
    quantity
    $0.00
    (0 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

    LEM HAIS 150-TP HAIS Series Open-Loop Current Transducer


    150A Rated Current x ±450A Measuring Range — Voltage Output Sensor with Integrated Primary Busbar for Industrial Applications



    LEM HAIS 150-TP Product Overview

    The HAIS 150-TP is an open-loop Hall effect current transducer from LEM's HAIS series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary and secondary circuits . This PCB-mount sensor is equipped with an integrated primary busbar, simplifying installation and ensuring reliable connections for high-current measurement . The device operates from a single +5 V power supply and provides a voltage output with fixed offset and sensitivity.

    Rated for 150 A nominal with a ±450 A measuring range, it outputs an analog voltage of 2.5 V ± 0.625 V with 1% accuracy and ±0.5% linearity . Response time is 5 µs and bandwidth is DC to 50 kHz . Supply voltage is +5 V (±5%) with a maximum current consumption of 19 mA . Mass is 30 g and operating temperature is -40°C to +85°C . Insulation test voltage is 2.5 kV with creepage and clearance distances exceeding 8 mm and a CTI > 600 .



    LEM HAIS 150-TP Key Specifications

    Parameter

    Value

    Rated current (IPN)

    150 A

    Measuring range (IPM)

    0 … ±450 A

    Output signal (VOUT)

    2.5 V ± 0.625 V

    Reference voltage (VREF)

    2.5 V ± 0.025 V

    Supply voltage (VC)

    +5 V (±5%)

    Accuracy (XG)

    ±1%

    Linearity (EL)

    ±0.5%

    Response time (tr)

    5 µs

    Bandwidth (BW)

    DC … 50 kHz

    Insulation (Vd)

    2.5 kV

    Creepage / Clearance

    > 8 mm / > 8 mm

    Operating temp (TA)

    -40°C … +85°C

    Mass (m)

    30 g

    Mounting

    PCB



    LEM HAIS 150-TP Key Advantages

    The HAIS 150-TP employs open-loop Hall effect technology, delivering 1% accuracy and ±0.5% linearity while maintaining a compact footprint and low power consumption . The ±450 A range provides generous headroom for measuring nominal currents up to 150 A with transient overcurrent capability, while the 5 µs response time and 50 kHz bandwidth capture fast-changing switching and pulse waveforms with high fidelity. The PCB-mount design with integrated primary busbar simplifies board-level integration and saves space, and the unipolar +5 V supply simplifies power design. The reference access pin offers flexible signal conditioning, and the 2.5 kV insulation with UL 94-V0 recognized housing ensures robust safety isolation for industrial applications .



    LEM HAIS 150-TP Typical Applications

    AC variable speed drives and servo motor drives
    Static converters for DC motor drives
    Battery supplied applications
    Uninterruptible Power Supplies (UPS)
    Switched Mode Power Supplies (SMPS)
    Power supplies for welding applications
    Renewable energy systems



    Why Choose the LEM HAIS 150-TP?

    The HAIS 150-TP combines a 150 A nominal rating with a ±450 A measuring range and 1% accuracy in a compact, PCB-mount package with an integrated primary busbar and +5 V supply . Manufactured by LEM, it delivers stable, accurate, and safe current measurement for demanding industrial power conversion and motor control applications. The open-loop Hall effect design offers excellent linearity, low thermal drift, and high immunity to external interference, making it a reliable and cost-effective choice for critical systems where measurement integrity is paramount. The TP variant's integrated busbar simplifies installation and reduces component count, ideal for applications where space is at a premium .



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Sherman
    Apr 02, 2026
    5 star company!
    Una
    Feb 10, 2026
    The greatest company I have been ever working with.
    Paulette
    Aug 22, 2025
    Very professional and flexible
    Ingemar
    Mar 24, 2025
    Good and reliable, several deals over many years.
    Gia
    Feb 19, 2024
    Nice
     12
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
    pop_close
    pop_main
    Stay In The Know
    Enter your email to hear from us about Product list, Latest Products and Customer application examples!
