HAR 1000-S , HAR1000-S

HOT OFFER// Authorized Distributor
  • MacroQuest Part#HAR 1000-S
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $109.68 - $214.28
    / Pieces
    |
    Pieces(Min. Order)
    1-9 Pieces $214.28
    10-99 Pieces $135.71
    >=100 Pieces $109.68
    Quantity:
    In Stock
    $109.68
    (0 In Stock)
    Available
    $109.68
    LT: 6-8 weeks
    (2152 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

    LEM HAR 1000-S HAR Series Open-Loop Current Transducer


    1000A Rated Current x ±2500A Measuring Range — High-Performance Traction-Grade Sensor for Railway Applications



    LEM HAR 1000-S Product Overview

    The HAR 1000-S is an open-loop Hall effect current transducer from LEM's HAR series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary and secondary circuits. This panel-mount sensor is specifically engineered for the railway industry, suitable for both fixed installations and onboard systems on trains, trams, and metros. The insulating plastic case is recognized according to UL 94-V0, with materials complying with the smoke and fire classification requirements of the traction industry.

    Rated for 1000 A nominal with a ±2500 A measuring range, it outputs an instantaneous analog voltage of ±5 V with 0.5% accuracy. Response time is optimized and bandwidth is DC to 10 kHz. Supply voltage is ±15 V (±5%). Mass is specified and operating temperature is -40°C to +70°C. Insulation test voltage is 7000 V, providing reinforced isolation for demanding traction applications.

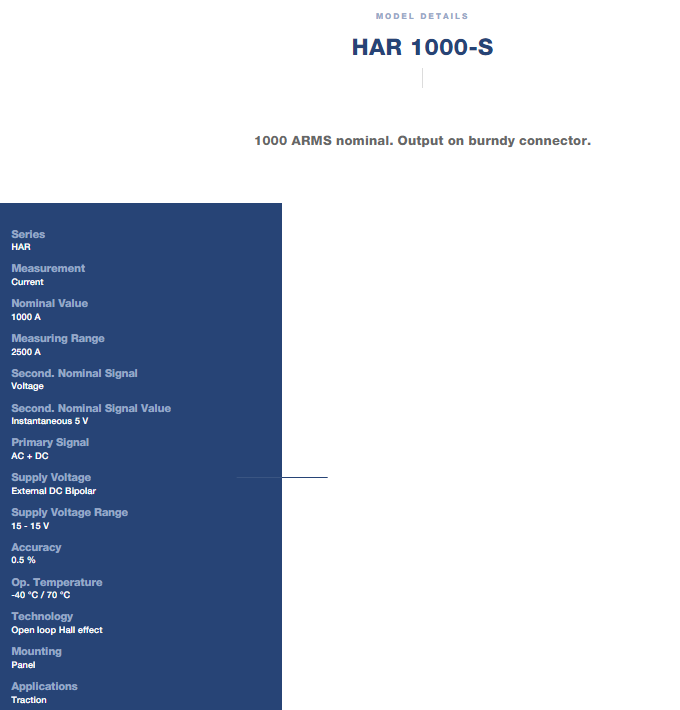

    LEM HAR 1000-S Key Specifications

    Parameter

    Value

    Rated current (IPN)

    1000 A

    Measuring range (IPM)

    0 … ±2500 A

    Output signal (VOUT)

    ±5 V (instantaneous)

    Supply voltage (VC)

    ±15 V (±5%)

    Accuracy (XG)

    ±0.5%

    Bandwidth (BW)

    DC … 10 kHz

    Insulation (Vd)

    7000 V

    Operating temp (TA)

    -40°C … +70°C

    Mounting

    Panel



    LEM HAR 1000-S Key Advantages

    The HAR 1000-S employs open-loop Hall effect technology, delivering 0.5% accuracy and excellent linearity while maintaining low temperature drift, optimized response time, wide frequency bandwidth, and high immunity to external interference. The ±2500 A range provides generous headroom for measuring nominal currents up to 1000 A with transient overcurrent capability. The panel-mount design enables secure installation in railway cabinets, and the 7000 V insulation ensures robust safety isolation for demanding traction applications. The sensor is designed for low power consumption and comprehensive testing to meet EN50155 and EN50124-1 traction standards.



    LEM HAR 1000-S Typical Applications

    Single or three phase inverters
    Propulsion and braking choppers
    Propulsion converters
    Auxiliary converters
    Railway onboard systems
    Fixed railway installations



    Why Choose the LEM HAR 1000-S?

    The HAR 1000-S combines a 1000 A nominal rating with a ±2500 A measuring range and 0.5% accuracy in a panel-mount package designed specifically for railway traction applications. Manufactured by LEM, it delivers stable, accurate, and safe current measurement for critical railway power conversion systems. The open-loop Hall effect design offers excellent linearity, low thermal drift, and high immunity to external interference, making it a reliable choice for traction environments where measurement integrity and safety are paramount. The device complies with EN50155 and EN50124-1 standards, ensuring reliable performance in the harsh conditions of railway applications.



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Acker
    Apr 12, 2026
    Thanks for the excellent service.
    Yilia
    Mar 02, 2026
    Simon is a very good partner and relible ,everthing going smoothly .
    Quennel
    Oct 18, 2025
    Fast shipping, great customer service and professionalism 100%, Thank you. Very satisfied
    David
    Apr 23, 2025
    Great Company, highly recommended A+++++
    Ramona
    Jan 21, 2024
    Great Company, highly recommended A+++++
     123
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
