    HASS 500-S Open-Loop Hall Effect Current Transducer



    HASS 500-S Product Overview

    The HASS 500-S is an open-loop Hall effect current transducer from LEM's HASS series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary and secondary circuits. This panel-mount sensor operates with a single +5 V supply and features a ratiometric voltage output with fixed offset and gain.

    Rated for 500 A RMS nominal with a bidirectional measuring range of ±1100 A, it outputs a ratiometric voltage signal of 2.5 V ± 0.625 V at rated current. Accuracy is ±1% with ±0.5% linearity. Response time is 3 µs and frequency bandwidth is DC to 50 kHz. Supply voltage is 4.75 to 5.25 V DC with a maximum supply current of 19 mA. Operating temperature range is -40°C to +85°C (or up to +105°C depending on specification). Mounting is through-hole panel mount. The housing uses UL 94-V0 recognized materials. Product status is Not For New Designs (DigiKey indication), though the product remains available through distribution channels.

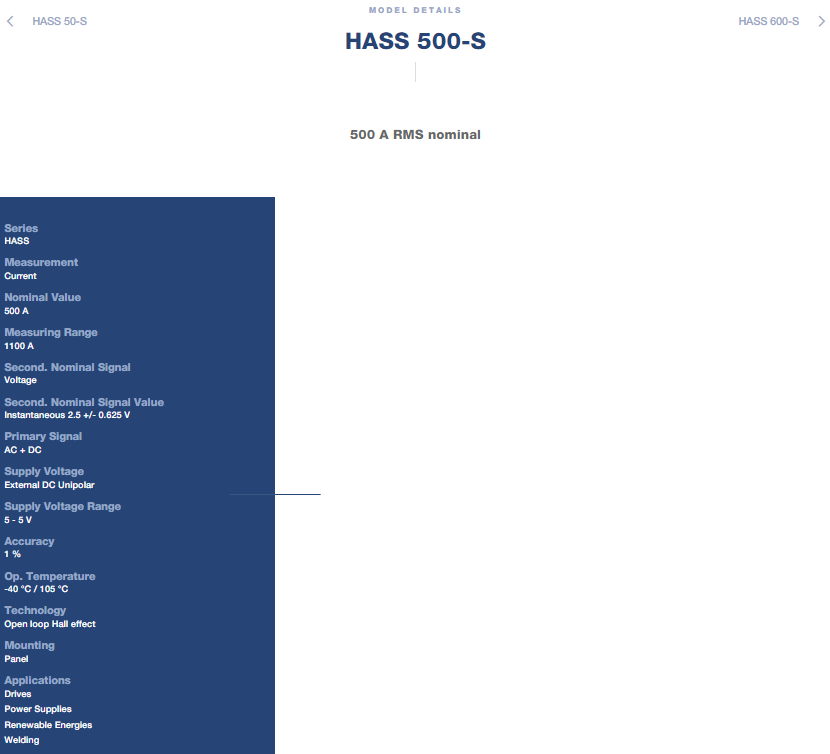

    HASS 500-S Key Specifications

    Rated current: 500 A RMS
    Measuring range: ±1100 A
    Output signal: Ratiometric voltage (2.5 V ± 0.625 V at IPN)
    Supply voltage: 4.75 to 5.25 V DC (single supply)
    Accuracy: ±1%
    Linearity: ±0.5%
    Response time: 3 µs
    Bandwidth: DC to 50 kHz
    Maximum supply current: 19 mA
    Operating temperature: -40°C to +85°C (or -40°C to +105°C)
    Mounting: Through-hole panel mount
    Polarization: Bidirectional
    Technology: Open-loop Hall effect
    Standards: UL 94-V0



    HASS 500-S Key Advantages

    The HASS 500-S features an open-loop Hall effect design with an insulating plastic case recognized according to UL 94-V0. The single +5 V supply with ratiometric voltage output simplifies integration with standard ADC-based systems. The ±1100 A measuring range provides ample headroom for overload conditions. The 3 µs response time and DC to 50 kHz bandwidth capture fast-switching transients with high fidelity. The compact panel-mount design with only one design for a wide current ratings range (50 A to 600 A) offers design flexibility and simplifies inventory. The wide -40°C to +85°C operating temperature range supports demanding industrial environments.



    HASS 500-S Typical Applications

    AC variable speed and servo motor drives
    Static converters for DC motor drives
    Battery supplied applications
    Uninterruptible Power Supplies (UPS)
    Switched Mode Power Supplies (SMPS)
    Power supplies for welding applications
    Renewable energy systems



    HASS 500-S Why Choose the HASS 500-S?

    The HASS 500-S combines a 500 A rating, ±1100 A measuring range, ±1% accuracy, and panel-mount design in a compact package. Manufactured by LEM, a global leader in electrical measurement, it delivers reliable, accurate current sensing for demanding industrial applications. The open-loop Hall effect technology with single 5 V supply provides high immunity to external interference and simplified system integration. Please note that this product is Not For New Designs according to distributor indications — for new designs, please consult LEM for alternative recommendations.



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Leif
    Apr 05, 2026
    Nice company ! A pleasure to deal with. Thank you !!
    Zara
    Dec 12, 2025
    The transportation is very good, the quality is also very good, I will buy again.
    Anne
    Apr 26, 2025
    This seller is the best a first class service.
    Houston
    Jun 24, 2023
    I am very satisfied.
    Gary
    Jan 06, 2023
    It was great doing business with Macroquest. We had a smooth transaction and delivery was prompt plus goods were properly packed.
     12
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
    pop_close
    pop_main
    Stay In The Know
    Enter your email to hear from us about Product list, Latest Products and Customer application examples!
