HC16F 1400-S00 , HC16F1400-S00

LEM HC16F 1400-S00 HC16F Automotive Current Transducer

1400A Rated Current x ±1400A Measuring Range — High-Performance Open-Loop Sensor for Automotive Motor Control

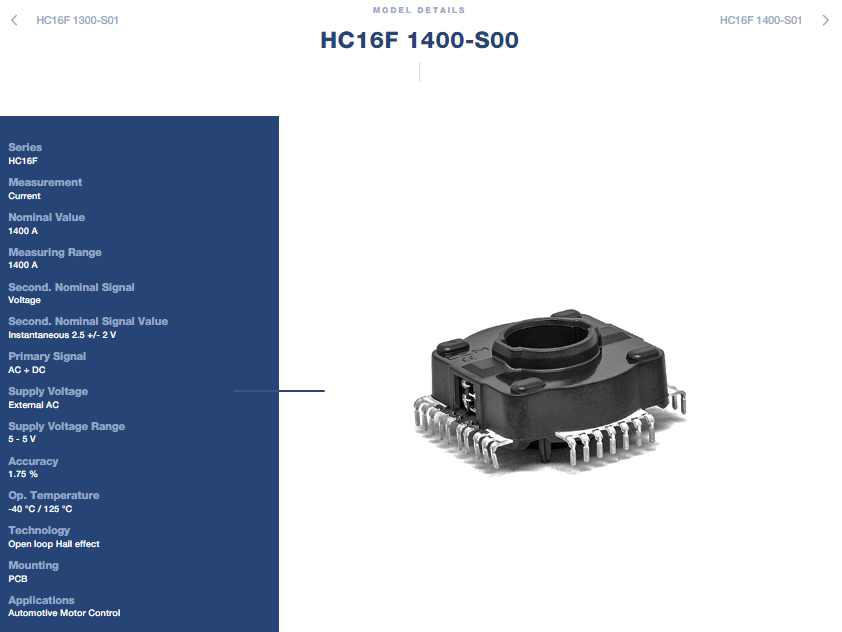

LEM HC16F 1400-S00 Product Overview

The HC16F 1400-S00 is an open-loop Hall effect current transducer from LEM's HC16F series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary and secondary circuits. This through-hole version is specifically engineered for high-power automotive applications, featuring a dual ASIC configuration that effectively cancels external magnetic fields and provides excellent cross-talk immunity. The sensor's dual air-gap design significantly reduces core size and weight compared to conventional C-core sensors, with a footprint of only 37.2 x 32.6 mm and a mass of 29 g.

Rated for 1400 A nominal with a ±1400 A measuring range, it outputs a fully ratiometric voltage of 2.5 V ± 2 V (instantaneous) with ±1.75% accuracy and ±0.5% linearity. Sensitivity is 1.43 mV/A. Response time is 4 µs and bandwidth is 40 kHz. Supply voltage is +5 V (4.85 to 5.15 V) with a maximum supply current of 35 mA. Operating temperature is -40°C to +125°C.

LEM HC16F 1400-S00 Key Specifications

LEM HC16F 1400-S00 Key Advantages

The HC16F 1400-S00 employs open-loop Hall effect technology with a proprietary dual ASIC, delivering ±1.75% accuracy and ±0.5% linearity while maintaining very low thermal offset and sensitivity drift across the entire -40°C to +125°C temperature range. The ±1400 A range provides ample headroom for transient overcurrent conditions, while the 4 µs response time and 40 kHz bandwidth capture fast-changing motor drive and switching waveforms with high fidelity. The PCB through-hole design enables robust mechanical mounting and easy integration onto gate driver boards, and the circular aperture accommodates both rectangular and round busbars. The integrated sleeve provides high-voltage isolation, and the unipolar +5 V supply simplifies power design. The dual ASIC architecture effectively eliminates external magnetic field interference, ensuring robust performance in electrically noisy automotive environments.

LEM HC16F 1400-S00 Typical Applications

Electric Power Steering (EPS)
Starter generators
Converters
Motor drive applications
DC link current measurement
Phase current measurement in motor drives

Why Choose the LEM HC16F 1400-S00?

The HC16F 1400-S00 combines a 1400 A nominal rating with a ±1400 A measuring range and ±1.75% accuracy in a compact, lightweight through-hole package optimized for automotive xEV and motor control applications. Manufactured by LEM, it delivers stable, accurate, and safe current measurement for demanding automotive systems. The open-loop Hall effect design with dual ASIC offers excellent linearity, very low thermal offset drift, high immunity to external interference, and galvanic separation between primary and secondary circuits. The S00 variant's through-hole packaging simplifies assembly and provides robust mechanical mounting, while the -40°C to +125°C operating range ensures reliable performance in harsh automotive environments. The dual air-gap design provides improved vibration characteristics and reduced material usage compared to traditional sensors, contributing to both performance and sustainability.
