HC16F 1600-S00 , HC16F1600-S00

Second. Nominal Signal[Instantaneous:Voltage 2.5 +/- 2 V]
  • MacroQuest Part#HC16F 1600-S00
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $0.00
    / Pieces
    |
    Pieces(Min. Order)
    Contact us for quotation:
    quantity
    $0.00
    (0 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

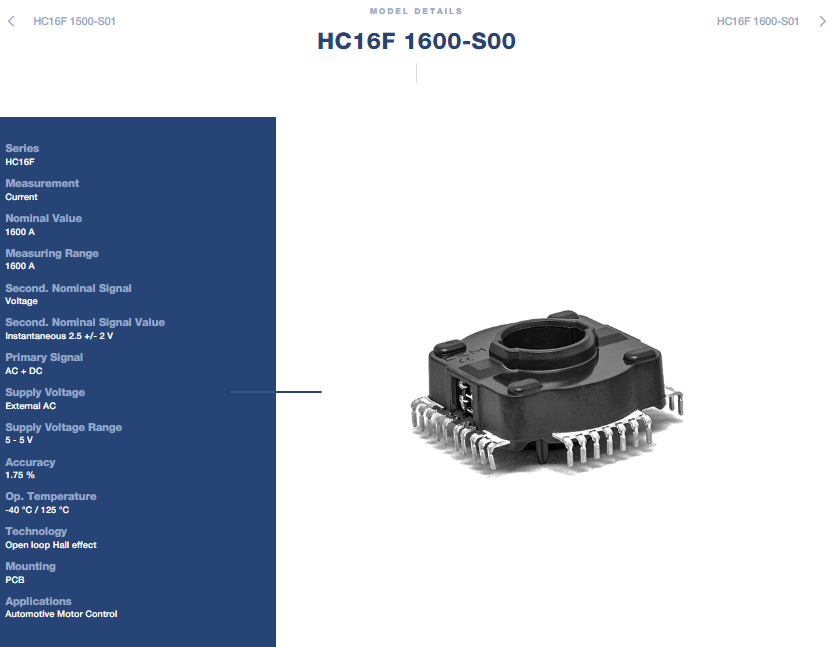

    LEM HC16F 1600-S00 HC16F Automotive Current Transducer


    1600A Rated Current x ±1600A Measuring Range — High-Accuracy Open-Loop Sensor for Automotive Motor Control



    LEM HC16F 1600-S00 Product Overview

    The HC16F 1600-S00 is an open-loop Hall effect current transducer from LEM's HC16F series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary and secondary circuits. This through-hole version (S00) is specifically engineered for high-power automotive applications, featuring a compact design for PCB mounting and a dual air-gap structure that significantly reduces core size and weight. The device utilizes a dual ASIC configuration that eliminates external magnetic field interference, providing excellent cross-talk immunity.

    Rated for 1600 A nominal with a ±1600 A measuring range, it outputs a ratiometric voltage of 2.5 V ± 2 V (instantaneous) with 1.75% accuracy and ±0.5% linearity. Sensitivity is 1.25 mV/A. Response time is 4 µs and bandwidth is 40 kHz. Supply voltage is +5 V (4.85 to 5.15 V) with a maximum supply current of 35 mA. Mass is 29 g and operating temperature is -40°C to +125°C. The sensor offers very low thermal offset and sensitivity drift for stable performance across temperature.



    LEM HC16F 1600-S00 Key Specifications

    Parameter

    Value

    Rated current (IPN)

    1600 A

    Measuring range (IPM)

    0 … ±1600 A

    Output signal (VOUT)

    2.5 V ± 2 V (ratiometric)

    Sensitivity

    1.25 mV/A

    Supply voltage (VC)

    4.85 … 5.15 V

    Accuracy (XG)

    ±1.75%

    Linearity (EL)

    ±0.5%

    Response time (tr)

    4 µs

    Bandwidth (BW)

    DC … 40 kHz

    Operating temp (TA)

    -40°C … +125°C

    Mass (m)

    29 g

    Mounting

    PCB (through-hole)



    LEM HC16F 1600-S00 Key Advantages

    The HC16F 1600-S00 employs open-loop Hall effect technology with a proprietary dual ASIC design, delivering 1.75% accuracy and ±0.5% linearity while maintaining very low thermal offset and sensitivity drift across the -40°C to +125°C temperature range. The ±1600 A range provides ample headroom for measuring nominal currents up to 1600 A with transient overcurrent capability, while the 4 µs response time and 40 kHz bandwidth capture fast-changing motor drive and switching waveforms with high fidelity. The compact 37.2 x 32.6 mm PCB-mount design weighs only 29 g, making it ideal for space-constrained automotive applications. The through-hole (S00) version enables robust PCB integration, while the integrated sleeve provides high-voltage isolation. The unidirectional polarization makes it suitable for applications with current flow in a single direction.



    LEM HC16F 1600-S00 Typical Applications

    Electrical Power Steering (EPS)
    Starter generators
    Converters
    Motor drive applications
    DC link current measurement
    Phase current measurement in motor drives



    Why Choose the LEM HC16F 1600-S00?

    The HC16F 1600-S00 combines a 1600 A nominal rating with a ±1600 A measuring range and 1.75% accuracy in a compact, lightweight through-hole package optimized for automotive xEV and motor control applications. Manufactured by LEM, it delivers stable, accurate, and safe current measurement for demanding automotive systems. The open-loop Hall effect design with dual ASIC offers excellent linearity, very low thermal offset drift, high immunity to external interference, and galvanic separation between primary and secondary circuits. The S00 variant's through-hole packaging simplifies assembly and provides robust mechanical mounting, while the -40°C to +125°C operating range ensures reliable performance in harsh automotive environments.
