HC5FW 500-S , HC5FW500-S

Second. Nominal Signal[Instantaneous:Voltage 2 V]
  • MacroQuest Part#HC5FW 500-S
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $0.00 - $45.88
    / Pieces
    |
    Pieces(Min. Order)
    1-161 Pieces $45.88
    162-323 Pieces $44.35
    >=324 Pieces $42.82
    Contact us for quotation:
    quantity
    $0.00
    (0 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

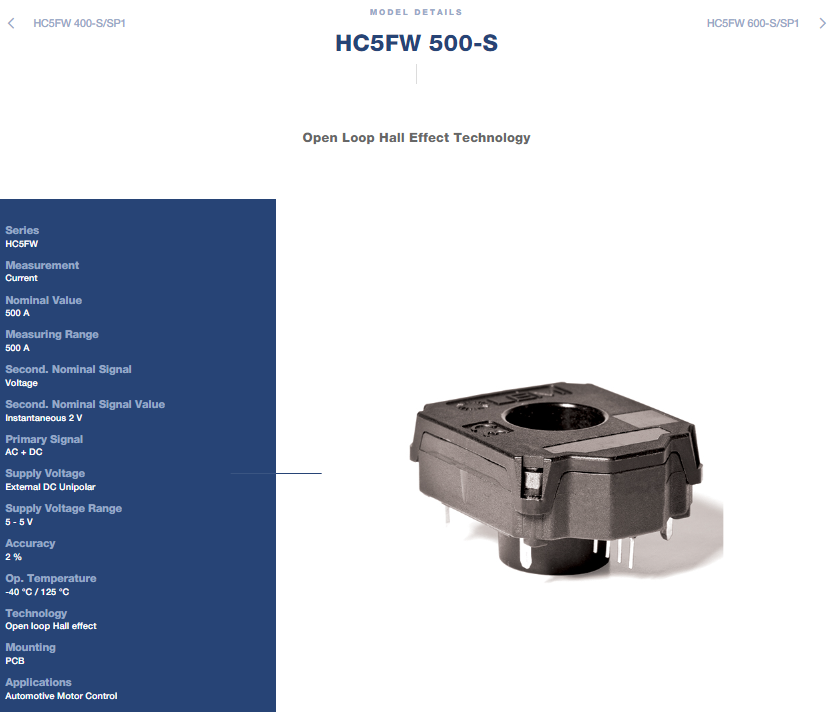

    LEM HC5FW 500-S HC5FW Automotive Current Sensor


    500A Rated Current x ±500A Measuring Range — High-Compactness Open-Loop Sensor for Automotive Motor Control



    LEM HC5FW 500-S Product Overview

    The HC5FW 500-S is an open-loop Hall effect current transducer from LEM's HC5FW series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary and secondary circuits . This PCB-mount sensor is specifically engineered for mid to high-power automotive applications, featuring a compact design that accommodates rectangular or circular busbars passing directly through the sensor aperture . The HC5FW family uses a proprietary ASIC developed by LEM combined with a precisely assembled and calibrated magnetic core to ensure outstanding performance and reliability in demanding automotive environments .

    Rated for 500 A nominal with a ±500 A measuring range, it outputs a fully ratiometric analog voltage of 2.5 V ± 2 V (instantaneous) with 2% accuracy and ±1% linearity . Sensitivity is 4 mV/A . Response time is 6 µs and bandwidth is 40 kHz . Supply voltage is 5 V (4.75 to 5.25 V) . Operating temperature is -40°C to +125°C . Insulation test voltage is 2.5 kV with creepage distance of 3.6 mm and clearance of 2.7 mm .



    LEM HC5FW 500-S Key Specifications

    Parameter

    Value

    Rated current (IPN)

    500 A

    Measuring range (IPM)

    0 … ±500 A

    Output signal (Vout)

    2.5 V ± 2 V (ratiometric)

    Sensitivity

    4 mV/A

    Supply voltage (VC)

    4.75 … 5.25 V

    Accuracy (XG)

    ±2%

    Linearity (EL)

    ±1%

    Response time (tr)

    6 µs

    Bandwidth (BW)

    DC … 40 kHz

    Insulation test voltage (Vd)

    2.5 kV

    Creepage distance

    3.6 mm

    Clearance

    2.7 mm

    Operating temp (TA)

    -40°C … +125°C

    Mounting

    PCB through-hole



    LEM HC5FW 500-S Key Advantages

    The HC5FW 500-S employs open-loop Hall effect technology with a proprietary ASIC, delivering 2% accuracy and ±1% linearity while maintaining excellent performance across a wide temperature range . The ±500 A range provides ample headroom for measuring nominal currents up to 500 A with transient overcurrent capability, while the 6 µs response time and 40 kHz bandwidth capture fast-changing motor drive and switching waveforms with high fidelity . The PCB-mount design with through-hole terminals enables direct integration onto gate driver boards, and the aperture accommodates both rectangular and round busbars, providing flexibility in system design . The 2.5 kV insulation and 125°C operating temperature ensure robust safety and reliability in demanding automotive environments .



    LEM HC5FW 500-S Typical Applications

    xEV traction inverters
    DC link current measurement
    Phase current measurement in motor drives
    Electrical Power Steering (EPS)
    Starter generators
    DC/DC converters



    Why Choose the LEM HC5FW 500-S?

    The HC5FW 500-S combines a 500 A nominal rating with a 2% accuracy in a compact, PCB-mount package optimized for automotive xEV applications . Manufactured by LEM, it delivers stable, accurate, and safe current measurement for demanding motor control systems. The open-loop Hall effect design offers good accuracy, excellent linearity, low thermal offset drift, and high immunity to external interference, making it a reliable choice for critical automotive systems where measurement integrity and space constraints are paramount .



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Isadora
    Mar 22, 2026
    Thanks fo Macroquest
    Inka
    Jan 19, 2026
    The result is a seamless and satisfying customer experience.
    Janice
    Nov 07, 2025
    Very professional!
    Wendell
    Aug 01, 2025
    Fast shipping and great product i reccomend it !
    Dick
    Sep 01, 2024
    A trusted partner
     12
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
    pop_close
    pop_main
    Stay In The Know
    Enter your email to hear from us about Product list, Latest Products and Customer application examples!
