    LEM HLSR 10-SM HLSR-SM Series Open Loop Hall Effect Current Transducer

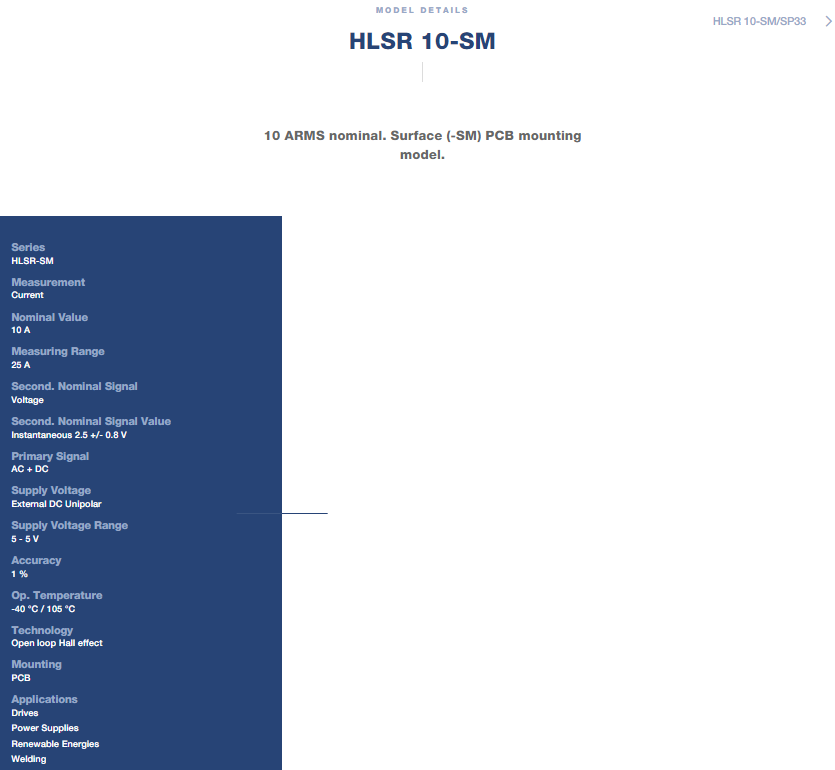

    LEM HLSR 10-SM Product Overview

    The HLSR 10-SM is an open-loop Hall effect current transducer from LEM's HLSR-SM Series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic separation between the primary and secondary circuits. This compact surface-mount PCB transducer is optimized for unipolar +5 V supply operation and features an ultra-low profile of only 12 mm with a footprint of just 3.87 cm².

    Rated for 10 A nominal with a measuring range of ±25 A (2.5 × IPN), it outputs a ratiometric analog voltage of 2.5 ± 0.8 V at nominal current with ±1% accuracy and ±0.5% linearity. Sensitivity is 80 mV/A. Response time is 2.5 µs and frequency bandwidth is 400 kHz. Supply voltage range is 4.5 V to 5.5 V with a maximum current consumption of 25 mA. Primary conductor resistance is only 0.21 mΩ. Mass is 5.5 g and operating temperature ranges from -40°C to +105°C. Insulation features >8 mm creepage and clearance distances with CTI 600 and insulation test voltage of 4.3 kV RMS. The device features bidirectional polarization and surface mount PCB mounting. The product is Active and carries a 5-year LEM warranty.



    LEM HLSR 10-SM Key Specifications

    Parameter

    Value

    Rated current (IPN)

    10 A

    Measuring range (IPM)

    ±25 A

    Output signal

    Ratiometric voltage (2.5 ± 0.8 V)

    Sensitivity

    80 mV/A

    Supply voltage (VC)

    4.5 V to 5.5 V

    Accuracy

    ±1 %

    Linearity (εL)

    ±0.5 %

    Response time (tr)

    2.5 µs

    Bandwidth (BW)

    400 kHz

    Insulation test voltage (Vd)

    4.3 kV RMS

    Creepage/Clearance

    >8 / >8 mm (CTI 600)

    Operating temp (TA)

    -40°C to +105°C

    Mass (m)

    5.5 g

    Mounting

    Surface Mount

    Technology

    Open-loop Hall effect



    LEM HLSR 10-SM Key Advantages

    The HLSR 10-SM employs open-loop Hall effect technology, delivering ±1% accuracy and ±0.5% linearity while providing reinforced galvanic isolation with >8 mm creepage and clearance. The ±25 A measuring range provides significant headroom for overload conditions (2.5 × IPN). The 400 kHz bandwidth and 2.5 µs response time capture dynamic current signals with high fidelity.

    Key features include access to voltage reference (overdrivable Uref), providing system-level flexibility for reference voltage synchronization. The single +5 V supply simplifies integration into low-voltage digital systems. The compact surface-mount design offers low power consumption (25 mA maximum), high immunity to external interference, low offset and gain drift, fixed offset and gain, and no insertion losses. It is factory calibrated and complies with IEC 61800-5-1 and UL 508 standards.



    LEM HLSR 10-SM Typical Applications

    AC variable speed drives and servo motor drives
    Static converters for DC motor drives
    Battery supplied applications
    Uninterruptible Power Supplies (UPS)
    Switched Mode Power Supplies (SMPS)
    Power supplies for welding applications
    Combiner box and MPPT systems
    Renewable energy systems



    Why Choose the LEM HLSR 10-SM?

    The HLSR 10-SM combines a 10 A rated current and ±25 A measuring range with ratiometric voltage output in a compact surface-mount package with a single +5 V supply and a 12 mm ultra-low profile. Manufactured by LEM, it delivers stable, accurate, and safe current measurement for industrial applications. The open-loop Hall effect design offers a cost-effective solution with excellent interference immunity and small footprint. The wide -40°C to +105°C operating temperature range and reinforced insulation ensure reliable performance in demanding environments. The product is Active with a 5-year LEM warranty.



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Pollyanna
    Mar 23, 2026
    Trustworthy, Recommend to All !
    Ladd
    May 22, 2025
    The quality is very good, which is beyond my expectation.
    Ramesh
    Nov 08, 2023
    Great to work with Simon,a real good guy to cooperate.
    Young
    Apr 06, 2023
    These guys are good!!
    Yves
    Mar 24, 2022
    A pleasure to work with Good company.
     12
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
    pop_close
    pop_main
    Stay In The Know
    Enter your email to hear from us about Product list, Latest Products and Customer application examples!
