HLSR 32-SM , HLSR32-SM

HOT OFFER// Authorized Distributor
  • MacroQuest Part#HLSR 32-SM
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $5.69 - $11.42
    / Pieces
    |
    Pieces(Min. Order)
    1-9 Pieces $11.42
    10-99 Pieces $8.57
    100-199 Pieces $7.14
    200-999 Pieces $6.42
    >=1000 Pieces $5.69
    Quantity:
    In Stock
    $5.69
    (0 In Stock)
    Available
    $5.69
    LT: 6-8 weeks
    (9851 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

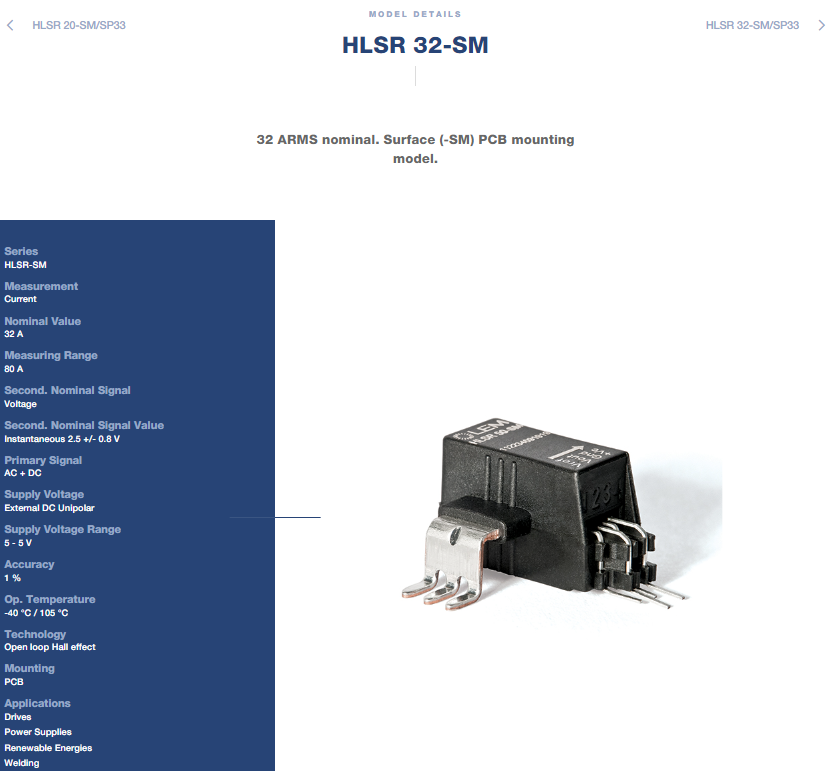

    LEM HLSR 32-SM HLSR-SM Series Open Loop Hall Effect Current Transducer



    LEM HLSR 32-SM Product Overview

    The HLSR 32-SM is an open-loop Hall effect current transducer from LEM's HLSR-SM Series, designed for the electronic measurement of DC and AC currents with galvanic isolation between primary and secondary circuits. This compact surface-mount PCB transducer is optimized for unipolar +5 V supply operation and features a very low profile of only 12 mm with a compact footprint of 3.87 cm².

    Rated for 32 A nominal with a measuring range of ±80 A (2.5 × IPN), it outputs a ratiometric analog voltage of 0 to 5 V at nominal current with ±1% accuracy and ±0.5% linearity. Sensitivity is 25 mV/A. Response time is 2.5 µs and frequency bandwidth is 400 kHz. Supply voltage range is 4.5 V to 5.5 V with a maximum current consumption of 25 mA. Operating temperature ranges from -40°C to +105°C. Insulation features 8 mm creepage and clearance distances with CTI 600. The device features bidirectional polarization and surface mount PCB mounting. The product is Active with a 5-year LEM warranty.



    LEM HLSR 32-SM Key Specifications

    Parameter

    Value

    Rated current (IPN)

    32 A

    Measuring range (IPM)

    ±80 A

    Output signal

    Ratiometric voltage

    Sensitivity

    25 mV/A

    Supply voltage (VC)

    4.5 V to 5.5 V

    Accuracy

    ±1 %

    Linearity (εL)

    ±0.5 %

    Response time (tr)

    2.5 µs

    Bandwidth (BW)

    400 kHz

    Insulation test voltage (Vd)

    4.3 kV RMS

    Creepage/Clearance

    8 / 8 mm (CTI 600)

    Operating temp (TA)

    -40°C to +105°C

    Mounting

    Surface Mount

    Technology

    Open-loop Hall effect

    Product Status

    Active



    LEM HLSR 32-SM Key Advantages

    The HLSR 32-SM employs open-loop Hall effect technology, delivering ±1% accuracy and ±0.5% linearity while providing reinforced galvanic isolation with 8 mm creepage and clearance. The ±80 A measuring range provides significant headroom for overload conditions (2.5 × IPN). The 400 kHz bandwidth and 2.5 µs response time capture dynamic current signals with high fidelity.

    Key features include access to voltage reference (overdrivable Uref), providing system-level flexibility for reference voltage synchronization. The single +5 V supply simplifies integration into low-voltage digital systems. The compact surface-mount design occupies only 3.87 cm² of PCB space with a 12 mm height. The device offers low power consumption (25 mA maximum), high immunity to external interference, low offset and gain drift, fixed offset and gain, and no insertion losses. It is factory calibrated and carries a 5-year LEM warranty.



    LEM HLSR 32-SM Typical Applications

    AC variable speed drives and servo motor drives
    Static converters for DC motor drives
    Battery supplied applications
    Uninterruptible Power Supplies (UPS)
    Switched Mode Power Supplies (SMPS)
    Power supplies for welding applications
    Combiner box and MPPT systems
    Solar inverter on DC side of the inverter



    Why Choose the LEM HLSR 32-SM?

    The HLSR 32-SM combines a 32 A rated current and ±80 A measuring range with ratiometric voltage output in a compact surface-mount package with a single +5 V supply. Manufactured by LEM, it delivers stable, accurate, and safe current measurement for industrial applications. The open-loop Hall effect design offers a cost-effective solution with excellent interference immunity and small footprint. The wide -40°C to +105°C operating temperature range and reinforced insulation ensure reliable performance in demanding environments. The product is Active with a 5-year LEM warranty.



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Newton
    Jan 20, 2026
    A very good Supplier in China
    Yvette
    Nov 02, 2025
    The quality is very good, which is beyond my expectation.
    Kincaid
    Aug 18, 2025
    Great vendor, fast shipment excellent parts !
    Laureen
    Jan 29, 2024
    Fast deliver out goods .So good Chips ,Many thank
    Greenle
    Oct 18, 2023
    Perfect!
     12
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
