HMSR 6-SMS , HMSR6-SMS

HOT OFFER// Authorized Distributor
  • MacroQuest Part#HMSR 6-SMS
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $3.99 - $7.14
    / Pieces
    |
    Pieces(Min. Order)
    1-9 Pieces $7.14
    10-99 Pieces $5.28
    100-499 Pieces $4.85
    500-999 Pieces $4.57
    >=1000 Pieces $3.99
    Quantity:
    In Stock
    $3.99
    (0 In Stock)
    Available
    $3.99
    LT: 6-8 weeks
    (8894 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

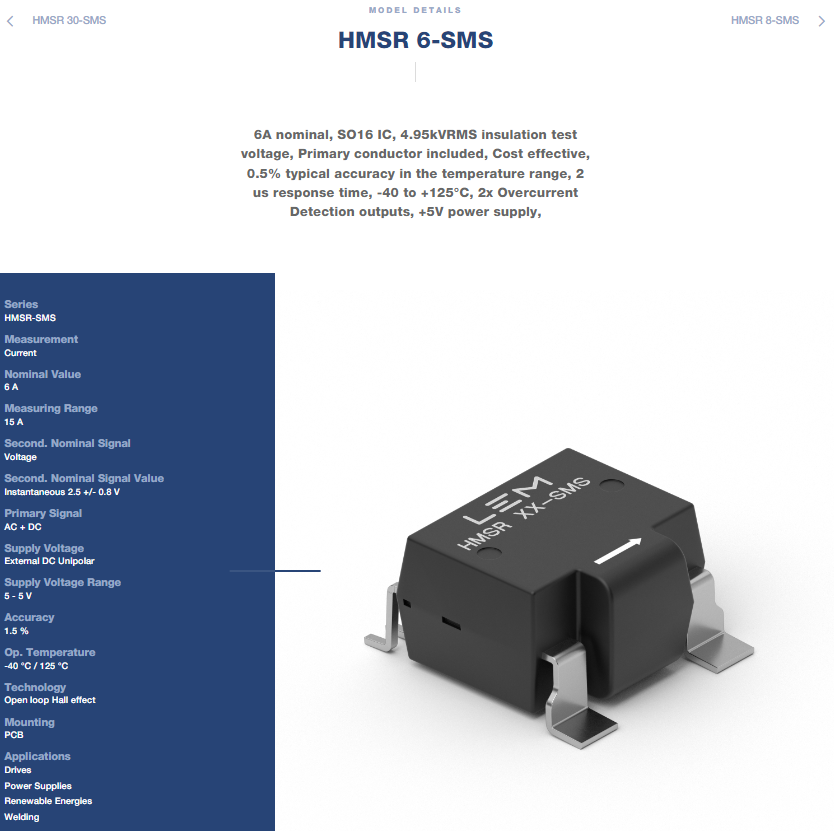

    LEM HMSR 6-SMS HMSR-SMS Series Open Loop Hall Effect Current Transducer



    LEM HMSR 6-SMS Product Overview

    The HMSR 6-SMS is an open-loop Hall effect current transducer from LEM's HMSR-SMS Series, designed for the electronic measurement of DC and AC currents with galvanic isolation between the primary and secondary circuits. This surface-mount SOIC-10 package sensor is factory calibrated and features a very low resistance primary conductor (0.76 mΩ), reinforced insulation, and dual overcurrent detection outputs. The device is designed for high-voltage applications requiring precision and strong immunity against external fields.

    Rated for 6 A nominal with a measuring range of ±15 A, it outputs a ratiometric analog voltage of 2.5 ± 0.8 V at nominal current with ±1.5% accuracy and ±0.75% linearity. Sensitivity is 133.33 mV/A. Response time is 2 µs and frequency bandwidth is 300 kHz. Supply voltage range is 4.5 V to 5.5 V with a maximum current consumption of 26 mA. Operating temperature ranges from -40°C to +125°C. Insulation test voltage is 4.95 kV RMS with reinforced insulation for high-voltage applications. The device features bidirectional polarization and surface mount PCB mounting. The product is Active with a 5-year LEM warranty.



    LEM HMSR 6-SMS Key Specifications

    Parameter

    Value

    Rated current (IPN)

    6 A

    Measuring range (IPM)

    ±15 A

    Output signal

    Ratiometric voltage (2.5 ± 0.8 V)

    Sensitivity

    133.33 mV/A

    Supply voltage (VC)

    4.5 V to 5.5 V

    Accuracy

    ±1.5 %

    Linearity (εL)

    ±0.75 %

    Response time (tr)

    2 µs

    Bandwidth (BW)

    300 kHz

    Insulation test voltage (Vd)

    4.95 kV RMS

    Primary conductor resistance

    0.76 mΩ

    Operating temp (TA)

    -40°C to +125°C

    Mounting

    Surface Mount (SOIC-10)

    Technology

    Open-loop Hall effect

    Product Status

    Active



    LEM HMSR 6-SMS Key Advantages

    The HMSR 6-SMS employs open-loop Hall effect technology with a very low loss magnetic core, delivering ±1.5% accuracy and ±0.75% linearity while providing reinforced galvanic isolation . A key feature is the dual overcurrent detection outputs (user-configurable and factory-set), enabling flexible and redundant system-level protection without additional circuitry. The single +5 V supply simplifies integration into low-voltage digital systems. The very low primary conductor resistance of 0.76 mΩ minimizes power losses and enables the device to withstand high surge currents such as lightning strikes . The compact surface-mount SOIC-10 package offers low power consumption (26 mA maximum), high immunity to external interference, and no insertion losses. The device is factory calibrated and carries a 5-year LEM warranty .



    LEM HMSR 6-SMS Typical Applications

    Small AC variable speed drives and servo motor drives
    Static converters for DC motor drives
    HVAC inverters
    Uninterruptible Power Supplies (UPS)
    Switched Mode Power Supplies (SMPS)
    Solar inverters
    Combiner box and MPPT systems
    Appliances requiring current monitoring



    Why Choose the LEM HMSR 6-SMS?

    The HMSR 6-SMS combines a 6 A rated current and ±15 A measuring range with ratiometric voltage output in a compact SOIC-10 surface-mount package with a single +5 V supply and dual overcurrent detection. Manufactured by LEM, it delivers stable, accurate, and safe current measurement for industrial applications requiring reinforced insulation and high surge current withstand capability. The open-loop Hall effect design offers a cost-effective solution with excellent interference immunity, small footprint, and wide -40°C to +125°C operating temperature range. The device is approved by IEC 61800-5-1:2007, IEC 62109-1:2010, and IEC 60950-1:2005 standards . The product is Active with a 5-year LEM warranty.



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Josie
    Jan 23, 2026
    Parts is new, orig and very fast shipping.
    Paul
    Jun 26, 2025
    Fast feedback and good business.
    Joy
    Jul 21, 2024
    It's always our pleasure to do business with Macroquest
    Guy
    Jun 15, 2023
    Good company. Did several deals and no issues.
    Quinton
    Jun 28, 2022
    The delivery speed is very fast.
     12
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
