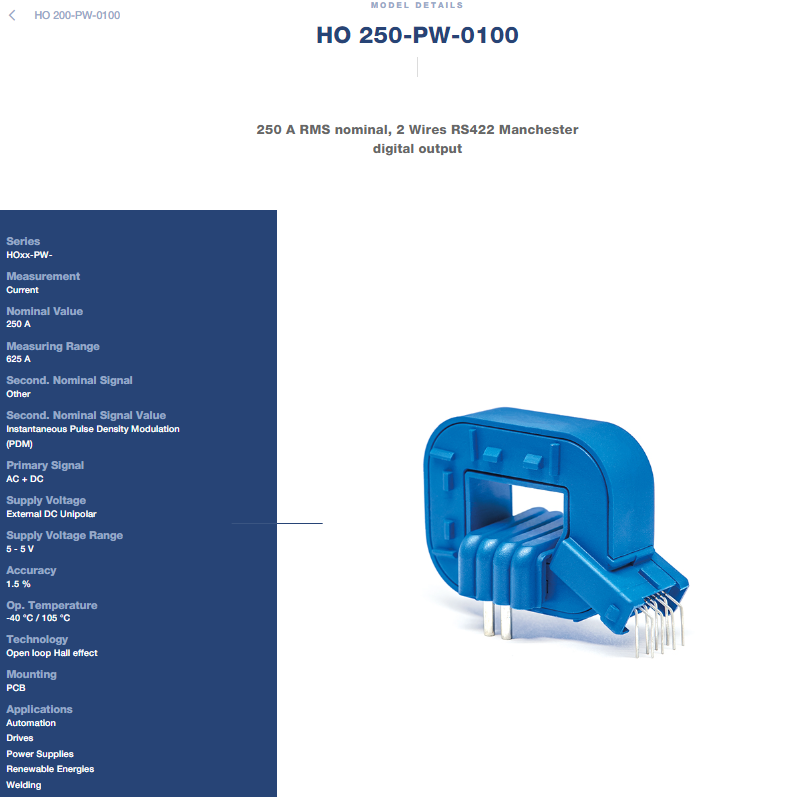

HO 250-PW-0100 , HO250-PW-0100

Second. Nominal Signal[Instantaneous:Other Pulse Density Modulation (PDM)]
  • MacroQuest Part#HO 250-PW-0100
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $0.00
    / Pieces
    |
    Pieces(Min. Order)
    Contact us for quotation:
    quantity
    $0.00
    (0 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

    LEM HO 250-PW-0100 HO-PW Series Open Loop Hall Effect Current Transducer



    LEM HO 250-PW-0100 Product Overview

    The HO 250-PW-0100 is an open-loop Hall effect current transducer from LEM's HO-PW Series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary and secondary circuits. This PCB-mount transducer features a 15 x 8 mm aperture for primary conductor installation and is optimized for unipolar +5 V supply operation. The PW variant provides a ratiometric voltage output with dedicated overcurrent detection on a separate pin.

    Rated for 250 A nominal with a measuring range of ±625 A (2.5 × IPN), it outputs a ratiometric analog voltage of 0 to 5 V with ±1.5% accuracy and ±0.5% linearity. Frequency bandwidth is DC to 20 kHz with a response time of 2.5 µs. Supply voltage range is 4.5 V to 5.5 V with a maximum current consumption of 31 mA. Operating temperature ranges from -40°C to +105°C. The device is bidirectional and features 8 mm creepage and clearance distances with CTI 600. Package dimensions are 22 x 43 x 30 mm. The product is Active and carries a 5-year LEM warranty.



    LEM HO 250-PW-0100 Key Specifications

    Parameter

    Value

    Rated current (IPN)

    250 A

    Measuring range (IPM)

    ±625 A

    Output signal

    0 to 5 V (ratiometric voltage)

    Supply voltage (VC)

    4.5 V to 5.5 V

    Accuracy

    ±1.5 %

    Linearity (εL)

    ±0.5 %

    Response time (tr)

    2.5 µs

    Bandwidth (BW)

    DC to 20 kHz

    Creepage/Clearance

    8 / 8 mm (CTI 600)

    Aperture

    15 x 8 mm

    Operating temp (TA)

    -40°C to +105°C

    Mounting

    PCB (through-hole)

    Technology

    Open-loop Hall effect



    LEM HO 250-PW-0100 Key Advantages

    The HO 250-PW-0100 employs open-loop Hall effect technology, delivering ±1.5% accuracy and ±0.5% linearity while providing galvanic isolation between primary and secondary circuits. The ±625 A measuring range provides significant headroom for overload conditions (2.5 × IPN). The 20 kHz bandwidth and 2.5 µs response time capture dynamic current signals in drive and power conversion applications.

    A key feature is the dedicated overcurrent detection output on a separate pin, enabling fast system-level protection without additional circuitry. The single +5 V supply simplifies integration into low-voltage digital systems. The compact PCB-mount design with 15 x 8 mm aperture offers low power consumption (31 mA maximum), high immunity to external interference, and no insertion losses. The device is factory calibrated and features 8 mm creepage/clearance for reinforced insulation.



    LEM HO 250-PW-0100 Typical Applications

    AC variable speed drives and servo motor drives
    Static converters for DC motor drives
    Battery supplied applications
    Uninterruptible Power Supplies (UPS)
    Switched Mode Power Supplies (SMPS)
    Power supplies for welding applications
    Combiner box and MPPT systems
    Renewable energy systems



    Why Choose the LEM HO 250-PW-0100?

    The HO 250-PW-0100 combines a 250 A rated current and ±625 A measuring range with 0 to 5 V ratiometric output in a compact PCB-mount package with a single +5 V supply. Manufactured by LEM, it delivers stable, accurate, and safe current measurement for industrial applications requiring high-speed current sensing. The open-loop Hall effect design offers a cost-effective solution with overcurrent detection, excellent interference immunity, and small footprint. The wide -40°C to +105°C operating temperature range and reinforced insulation ensure reliable performance in demanding environments. The product is Active with a 5-year LEM warranty.



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Cecelia
    Feb 05, 2026
    Smooth Transaction
    Olivia
    Jan 31, 2026
    Good and reliable company ,Elsa is honest
    Farrar
    Oct 14, 2025
    Thank you Elsa for everything that you've done, very perfect and smoothly. I like the way that we cooperate with each other. Especially the shippment arranged very fast. Good Job!
    Xenia
    Jul 05, 2025
    Many Thanks,Will place next order later !!!!!
    Allen
    Aug 20, 2024
    The delivery is very fast, the quality of the goods is also quite good, good, good
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
    pop_close
    pop_main
    Stay In The Know
    Enter your email to hear from us about Product list, Latest Products and Customer application examples!
