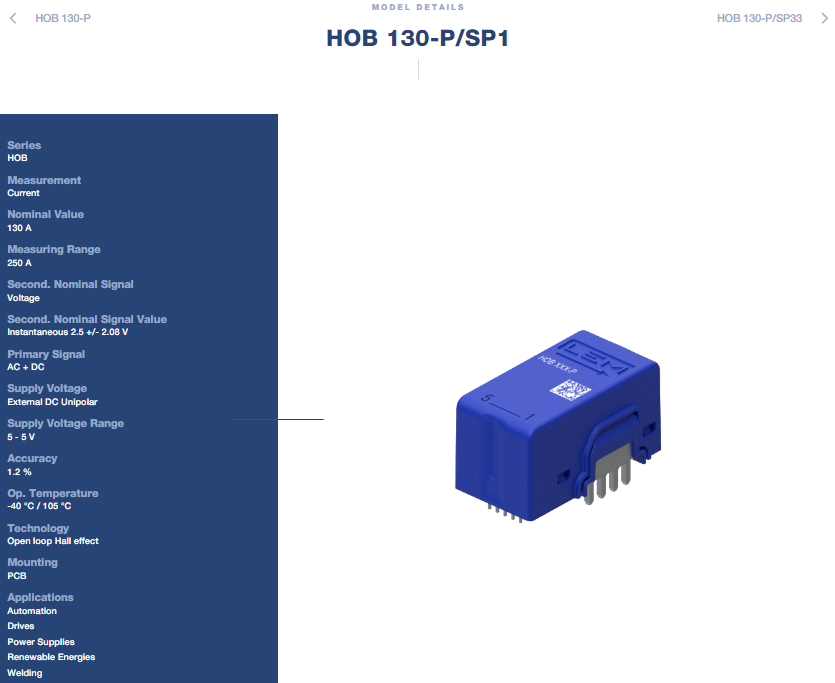

HOB 130-P/SP1 , HOB130-P/SP1

Second. Nominal Signal[Instantaneous:Voltage 2.5 +/- 2.08 V]
  • MacroQuest Part#HOB 130-P/SP1
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $16.50
    / Pieces
    |
    Pieces(Min. Order)
    Contact us for quotation:
    quantity
    $0.00
    (0 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

    LEM HOB 130-P/SP1 HOB-P/SP1 Series Open Loop Hall Effect Current Transducer



    LEM HOB 130-P/SP1 Product Overview

    The HOB 130-P/SP1 is an open-loop Hall effect current transducer from LEM's HOB-P/SP1 Series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary and secondary circuits. This through-hole PCB-mount transducer is optimized for single +5 V supply operation and is ideally suited to wide bandgap (WBG) power electronics applications requiring enhanced immunity to the dv/dt issues common with SiC power modules .

    Rated for 130 A nominal with a measuring range of ±250 A, it outputs a ratiometric analog voltage of 2.5 ± 2 V at nominal current . Accuracy is ±0.75% with ±0.45% linearity . Sensitivity is 16 mV/A . Response time is 200 ns and frequency bandwidth is 1 MHz . Supply voltage range is 4.6 V to 5.5 V with a maximum current consumption of 26 mA . Mass is 30 g and operating temperature ranges from -40°C to +105°C . Reinforced insulation features >11 mm creepage and clearance distances . The integrated primary conductor features very low resistance of 60 nΩ .



    LEM HOB 130-P/SP1 Key Specifications

    Parameter

    Value

    Rated current (IPN)

    130 A

    Measuring range (IPM)

    ±250 A

    Output signal

    Ratiometric voltage (2.5 ± 2 V)

    Sensitivity

    16 mV/A

    Supply voltage (VC)

    4.6 V to 5.5 V

    Accuracy

    ±0.75 %

    Linearity (εL)

    ±0.45 %

    Response time (tD90)

    200 ns

    Bandwidth (BW)

    1 MHz

    Insulation (Vd)

    Reinforced (>11 mm creepage/clearance)

    Operating temp (TA)

    -40°C to +105°C

    Mass (m)

    30 g

    Mounting

    PCB (through-hole)

    Technology

    Open-loop Hall effect



    LEM HOB 130-P/SP1 Key Advantages

    The HOB 130-P/SP1 employs open-loop Hall effect technology, delivering ±0.75% accuracy and ±0.45% linearity while providing reinforced galvanic isolation with >11 mm creepage and clearance . A key differentiator is the 1 MHz bandwidth and 200 ns response time, significantly faster than typical 3 µs alternatives, making it perfect for high-frequency SiC and GaN power electronics . The device offers lower noise and better dv/dt immunity compared to other open-loop sensors .

    The single +5 V supply simplifies integration into low-voltage digital systems. The integrated primary conductor with 60 nΩ resistance minimizes power losses . The compact through-hole PCB design offers low power consumption (26 mA maximum), high immunity to external interference, and no insertion losses. The device is factory calibrated and complies with IEC 61010-1, IEC 61800, and UL 508 standards .



    LEM HOB 130-P/SP1 Typical Applications

    AC variable speed drives and servo motor drives
    Static converters for DC motor drives
    Battery supplied applications
    Uninterruptible Power Supplies (UPS)
    Switched Mode Power Supplies (SMPS)
    Combiner box and MPPT systems
    Solar inverter DC side current measurement
    Handheld plasma cutters and welding equipment
    Charging stations



    Why Choose the LEM HOB 130-P/SP1?

    The HOB 130-P/SP1 combines a 130 A rated current and ±250 A measuring range with 1 MHz bandwidth and 200 ns response time in a compact PCB-mount package with a single +5 V supply. Manufactured by LEM, it delivers stable, accurate, and safe current measurement for high-frequency industrial applications. The open-loop Hall effect design offers a cost-effective solution with excellent interference immunity and small footprint. The reinforced insulation with >11 mm creepage and clearance ensures safe operation in demanding environments . The product is Active with a 5-year LEM warranty .



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Thorpe
    Mar 29, 2026
    Thank You very much! I am satisfied!
    Winifred
    Dec 15, 2025
    Good Vendor
    Jessica
    Jun 04, 2025
    Their expertise allows them to provide professional guidance and advice to customers.
    Abram
    Nov 01, 2024
    Good Company, very glad to cooperate with them, everything is very professional. hope can do more in the future.
    Piper
    Mar 23, 2023
    I am very satisfied and congratulate the supplier.
     12
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
    pop_close
    pop_main
    Stay In The Know
    Enter your email to hear from us about Product list, Latest Products and Customer application examples!
