HOP 500-SB/SP1 , HOP500-SB/SP1

HOT OFFER// Authorized Distributor
  • MacroQuest Part#HOP 500-SB/SP1
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $198.84 - $285.71
    / Pieces
    |
    Pieces(Min. Order)
    1-9 Pieces $285.71
    10-99 Pieces $214.82
    >=100 Pieces $198.84
    Quantity:
    In Stock
    $198.64
    (0 In Stock)
    Available
    $198.64
    LT: 6-8 weeks
    (4730 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

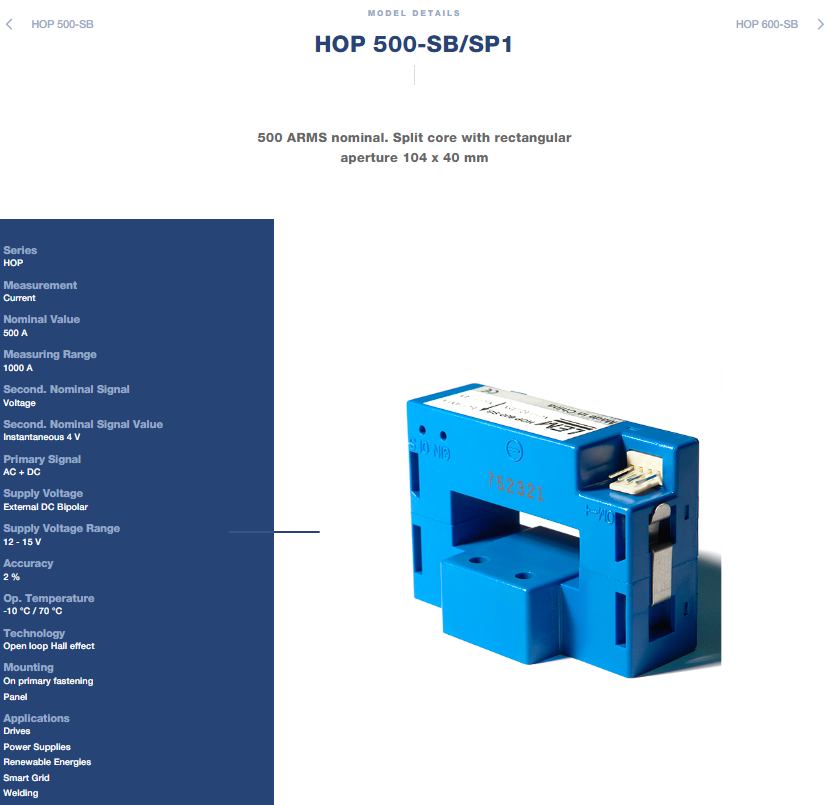

    LEM HOP 500-SB/SP1 HOP Series Open Loop Hall Effect Current Transducer



    LEM HOP 500-SB/SP1 Product Overview

    The HOP 500-SB/SP1 is an open-loop Hall effect current transducer from LEM's HOP Series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary and secondary circuits. This split-core transducer features a 104 x 40 mm aperture for non-intrusive busbar installation without disconnecting existing conductors .

    Rated for 500 A nominal with a measuring range of ±1000 A, it outputs an analog voltage of ±4 V with ≤±2% accuracy and ≤±1% linearity . Response time is <10 µs and frequency bandwidth is DC to 10 kHz . Supply voltage range is ±12 V to ±15 V with a maximum current consumption of 20 mA . Mass is 590 g and operating temperature ranges from -10°C to +70°C . Insulation test voltage is 5 kV RMS at 50 Hz for 1 minute, with 21.2 mm creepage distance and 16 mm clearance . Secondary connection is via a Molex 5045-04AG connector with mating connector provided . The insulating plastic case is recognized according to UL 94-V0 .



    LEM HOP 500-SB/SP1 Key Specifications

    Parameter

    Value

    Rated current (IPN)

    500 A

    Measuring range (IPM)

    ±1000 A

    Output signal

    ±4 V (analog voltage)

    Supply voltage (VC)

    ±12 V to ±15 V (±5%)

    Accuracy (ε) @ 25°C

    ≤±2 %

    Linearity (εL)

    ≤±1 %

    Response time (tD90)

    <10 µs

    Bandwidth (BW)

    DC to 10 kHz

    Insulation test voltage (Vd)

    5 kV RMS / 50 Hz / 1 min

    Creepage/Clearance

    21.2 / 16 mm

    Aperture

    104 x 40 mm

    Operating temp (TA)

    -10°C to +70°C

    Mass (m)

    590 g

    Mounting

    Panel / Busbar

    Secondary connection

    Molex 5045-04AG

    Technology

    Open-loop Hall effect

    Standards

    EN 50178:1997, UL 508:2013



    LEM HOP 500-SB/SP1 Key Advantages

    The HOP 500-SB/SP1 employs open-loop Hall effect technology, delivering ≤±2% accuracy and ≤±1% linearity while providing galvanic isolation . The split-core design with 104 x 40 mm aperture enables easy mounting on busbars without disconnecting existing conductors . The ±1000 A measuring range accommodates overloads up to twice the nominal current. The design offers low power consumption (20 mA), very good linearity, low temperature drift, high immunity to external interference, and no insertion losses . The transducer supports both panel mounting and busbar fastening .



    LEM HOP 500-SB/SP1 Typical Applications

    Power supplies for TELECOM (monitoring and measurement)
    Uninterruptible Power Supplies (UPS)
    Switched Mode Power Supplies (SMPS)
    Electrical chemistry and chopper circuits
    Battery supplied applications
    Industrial power conversion equipment
    Busbar current monitoring systems
    Renewable energy systems



    Why Choose the LEM HOP 500-SB/SP1?

    The HOP 500-SB/SP1 combines a 500 A rated current and ±1000 A measuring range with ±4 V voltage output in a robust split-core package with a 104 x 40 mm aperture. Manufactured by LEM, it delivers stable, accurate, and safe current measurement for industrial applications. The open-loop Hall effect design offers a cost-effective solution with split-core ease of installation, excellent interference immunity, and busbar or panel mounting flexibility . Compliance with EN 50178 and UL 508 standards ensures reliable operation in demanding industrial environments . The product is Active with a 5-year LEM warranty.



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Lawler
    Jan 17, 2026
    Solid Company.......Thank you for your help...
    Saul
    Oct 28, 2025
    Very reliable company
    Acket
    Jun 18, 2025
    awesome!!! the best quality!
    Ware
    May 24, 2024
    The delivery speed is very fast, the packaging is very careful and tight
    Ingrid
    Jan 11, 2024
    Commodity quality is good, details, quality
     123
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
    pop_close
    pop_main
    Stay In The Know
    Enter your email to hear from us about Product list, Latest Products and Customer application examples!
