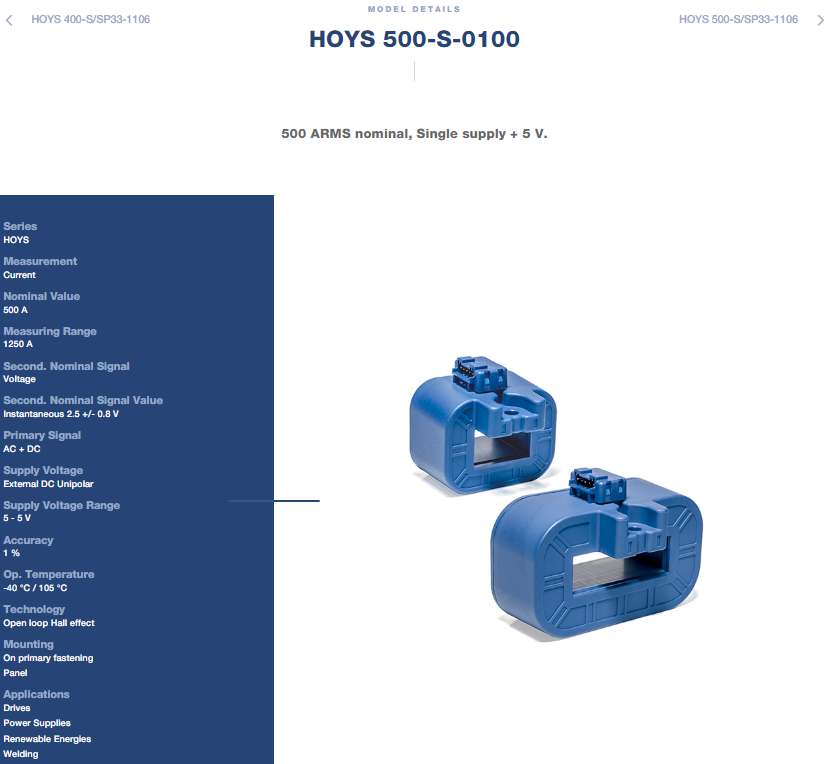

    LEM HOYS 500-S-0100 HOYS Series Open Loop Hall Effect Current Transducer



    LEM HOYS 500-S-0100 Product Overview

    The HOYS 500-S-0100 is an open-loop Hall effect current transducer from LEM's HOYS Series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary and secondary circuits . This busbar-mount transducer features a 21.5 x 13 mm aperture for direct mounting on busbars and is optimized for unipolar +5 V supply operation .

    Rated for 500 A nominal with a measuring range of ±1250 A (2.5 × IPN), it outputs a ratiometric analog voltage of 2.5 ± 0.8 V at nominal current with ±1% accuracy at 25°C and ±0.5% linearity . Sensitivity is 1.6 mV/A . Response time is 3 µs and frequency bandwidth is DC to 180 kHz (-3 dB) . Supply voltage range is 4.5 V to 5.5 V with a maximum current consumption of 25 mA . Operating temperature ranges from -40°C to +105°C . Insulation test voltage is 5.4 kV RMS at 50 Hz for 1 minute, with 10.5 mm creepage and clearance distances . Secondary connections are via a JST B05B-PASK connector .



    LEM HOYS 500-S-0100 Key Specifications

    Parameter

    Value

    Rated current (IPN)

    500 A

    Measuring range (IPM)

    ±1250 A

    Output signal

    Ratiometric voltage (2.5 ± 0.8 V)

    Sensitivity

    1.6 mV/A

    Supply voltage (VC)

    4.5 V to 5.5 V

    Accuracy (X) @ 25°C

    ±1 %

    Linearity (εL)

    ±0.5 %

    Response time (tr)

    3 µs

    Bandwidth (BW)

    DC to 180 kHz (-3 dB)

    Insulation test voltage (Vd)

    5.4 kV RMS / 50 Hz / 1 min

    Creepage/Clearance

    10.5 / 10.5 mm

    Aperture

    21.5 x 13 mm

    Operating temp (TA)

    -40°C to +105°C

    Mounting

    Busbar / Panel

    Secondary connection

    JST B05B-PASK connector

    Technology

    Open-loop Hall effect



    LEM HOYS 500-S-0100 Key Advantages

    The HOYS 500-S-0100 employs open-loop Hall effect technology with ASIC signal conditioning, delivering ±1% accuracy and ±0.5% linearity while providing galvanic isolation between primary and secondary circuits . The 21.5 x 13 mm aperture enables direct busbar mounting without requiring additional hardware .

    A key feature is the dedicated overcurrent detection output set at 2.93 × IPN (peak value), enabling fast system-level protection without additional circuitry . The VREF IN/OUT access provides system-level flexibility for reference voltage synchronization . The single +5 V supply simplifies integration into low-voltage digital systems. The design offers low offset and gain drift, high immunity to external interference, and very good linearity .



    LEM HOYS 500-S-0100 Typical Applications

    AC variable speed drives and servo motor drives
    Static converters for DC motor drives
    Battery supplied applications
    Uninterruptible Power Supplies (UPS)
    Switched Mode Power Supplies (SMPS)
    Power supplies for welding applications
    Renewable energy systems
    Industrial power management



    Why Choose the LEM HOYS 500-S-0100?

    The HOYS 500-S-0100 combines a 500 A rated current and ±1250 A measuring range with ratiometric voltage output in a compact busbar-mount package . Manufactured by LEM, it delivers stable, accurate, and safe current measurement for industrial applications . The open-loop Hall effect design offers a cost-effective solution with single +5 V supply operation, excellent interference immunity, and direct busbar mounting capability . The overcurrent detection output and VREF IN/OUT access provide valuable system-level functionality. Compliance with industry standards and the wide -40°C to +105°C operating temperature range ensure reliable performance in demanding environments .



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Tankard
    Mar 05, 2026
    Professional and good to deal
    Nina
    Jan 01, 2026
    Strongly support
    Veronica
    Nov 06, 2025
    I highly recommend this one
    Uriah
    Oct 01, 2024
    Alice is the best and honest friend...Good and reliable company!
    Sana
    Sep 12, 2023
    The delivery speed is very fast.
     123
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
    pop_close
    pop_main
    Stay In The Know
    Enter your email to hear from us about Product list, Latest Products and Customer application examples!
