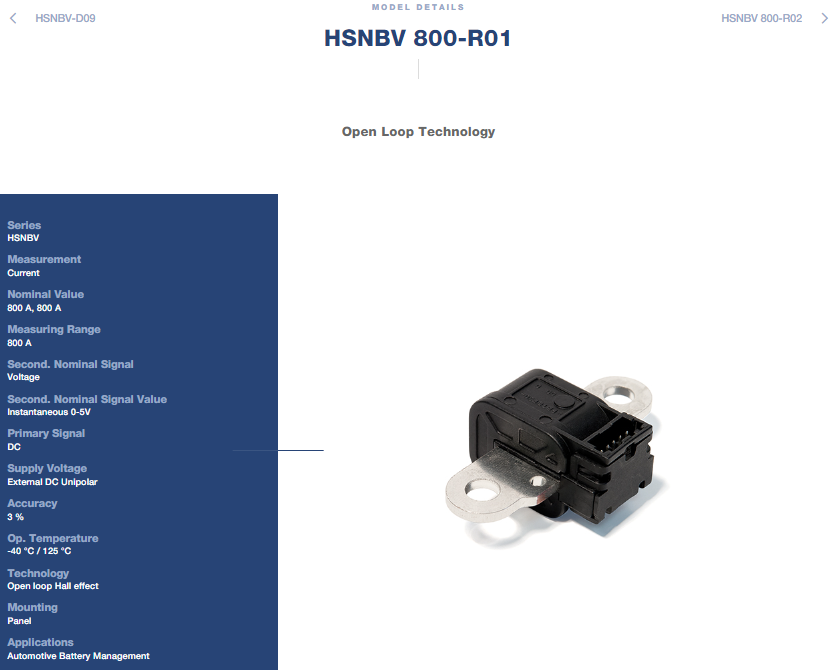

HSNBV 800-R01 , HSNBV800-R01

Second. Nominal Signal[Instantaneous:Voltage 0-5V]
  • MacroQuest Part#HSNBV 800-R01
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $0.00
    / Pieces
    |
    Pieces(Min. Order)
    Contact us for quotation:
    quantity
    $0.00
    (0 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

    LEM HSNBV 800-R01 HSNBV Series Open Loop Hall Effect Current Transducer



    LEM HSNBV 800-R01 Product Overview

    The HSNBV 800-R01 is an open-loop Hall effect current transducer from LEM's HSNBV Series, designed for the electronic measurement of DC currents with galvanic separation between the primary circuit (high power) and the secondary circuit (electronic circuit). This compact panel-mount transducer features an integrated busbar, making it suitable for high-power, low-voltage automotive applications such as Battery Management Systems (BMS), electric and hybrid vehicles, and 48 V battery systems.

    Rated for 800 A nominal with a measuring range of ±800 A, it outputs a ratiometric analog voltage of 0-5 V with ±3% accuracy and ±0.5% linearity. Sensitivity is 2.5 mV/A. Delay time to 70% final output value is 10 ms and frequency bandwidth is DC to 1.1 kHz. Supply voltage range is 4.75 V to 5.25 V with a maximum current consumption of 20 mA. Mass is 49 g and operating temperature ranges from -40°C to +125°C. The device is designed for panel mounting with unidirectional polarization.



    LEM HSNBV 800-R01 Key Specifications

    Parameter

    Value

    Rated current (IPN)

    800 A

    Measuring range (IPM)

    ±800 A

    Output signal

    0-5 V (ratiometric voltage)

    Sensitivity

    2.5 mV/A

    Supply voltage (VC)

    4.75 V to 5.25 V

    Accuracy (X)

    ±3 %

    Linearity (εL)

    ±0.5 %

    Delay time to 70% (tD70)

    10 ms

    Bandwidth (BW)

    DC to 1.1 kHz

    Insulation test voltage (Vd)

    2.5 kV RMS / 50 Hz / 1 min

    Operating temp (TA)

    -40°C to +125°C

    Mass (m)

    49 g

    Mounting

    Panel

    Polarization

    Unidirectional

    Technology

    Open-loop Hall effect

    Applications

    Automotive Battery Management



    LEM HSNBV 800-R01 Key Advantages

    The HSNBV 800-R01 employs open-loop Hall effect technology with an integrated busbar, providing galvanic separation between primary and secondary circuits for safe integration into automotive systems. The ratiometric output ensures the sensor's sensitivity and offset scale proportionally with the supply voltage, maintaining accuracy across variations. The integrated busbar design reduces sensor size and weight while maintaining performance comparable to traditional C-core sensors. The design offers excellent accuracy, very good linearity, very low thermal offset drift, and very low thermal sensitivity drift. The wide -40°C to +125°C operating temperature range ensures reliable performance in harsh automotive environments.



    LEM HSNBV 800-R01 Typical Applications

    Battery Management Systems for automotive applications
    Electric, hybrid, and utility vehicles
    48 V battery systems
    High-power, low-voltage automotive power electronics
    Battery monitoring and protection systems
    Power distribution units



    Why Choose the LEM HSNBV 800-R01?

    The HSNBV 800-R01 combines an 800 A rated current with a 0-5 V ratiometric output in a compact panel-mount package with an integrated busbar. Manufactured by LEM, it delivers stable, accurate, and safe current measurement specifically for automotive battery management applications. The open-loop Hall effect design offers a cost-effective solution with excellent linearity and very low thermal drift. The integrated busbar simplifies system integration, reduces weight, and minimizes space requirements, making it an ideal choice for space-constrained automotive power electronics designs. The part is Active with a 10-week lead time.



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Bill
    Mar 17, 2026
    Good business partner
    Geneva
    Jan 12, 2026
    reliable company good parts very efficient service
    Yolande
    Apr 19, 2025
    Great vendor, factory parts
    Begona
    Jun 16, 2024
    The company continuously innovates to provide its customers with top-notch products and services. They are forward-thinking and always ahead of the curve.
    Zachariah
    Oct 26, 2021
    Satisfied
     12
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
