HSNBV 800-R02 , HSNBV800-R02

Second. Nominal Signal[Instantaneous:Voltage 0-5V]
  • MacroQuest Part#MQ-HSNBV 800-R02
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $0.00
    / Pieces
    |
    Pieces(Min. Order)
    Contact us for quotation:
    quantity
    $0.00
    (0 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

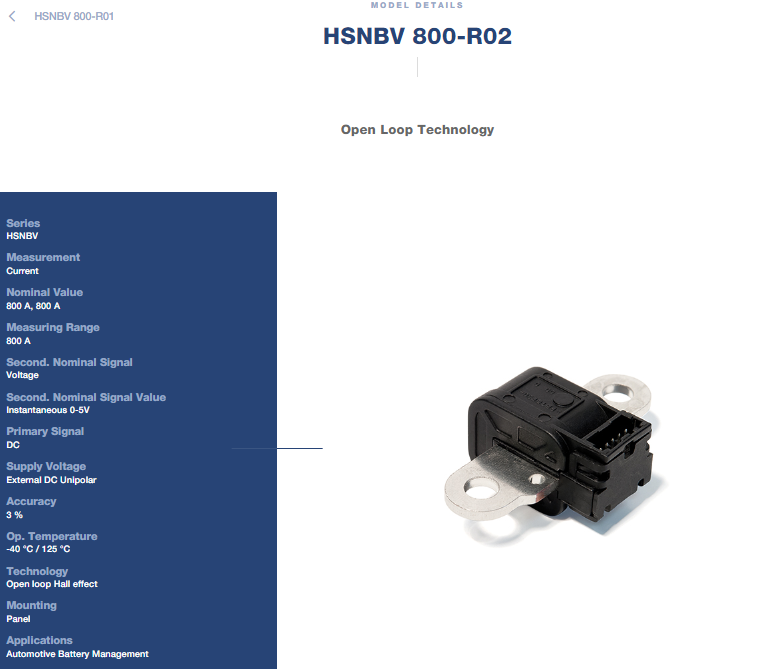

    LEM HSNBV 800-R02 HSNBV Series Open Loop Hall Effect Current Transducer



    LEM HSNBV 800-R02 Product Overview

    The HSNBV 800-R02 is an open-loop Hall effect current transducer from LEM's HSNBV Series, designed for the electronic measurement of DC, AC, or pulsed currents with galvanic separation between the primary circuit (high power) and the secondary circuit (electronic circuit). This compact panel-mount transducer features an integrated busbar and dual redundant output channels, making it suitable for high-power, low-voltage automotive applications such as Battery Management Systems (BMS), electric and hybrid vehicles, and 48 V battery systems.

    Rated for 800 A nominal with a measuring range of ±800 A, it outputs a ratiometric analog voltage of 0-5 V with ±3% accuracy, ±0.5% linearity, and a sensitivity of 2.5 mV/A. Frequency bandwidth is DC to 1.1 kHz and delay time to 70% final output value is 10 ms. Supply voltage range is 4.75 V to 5.25 V with a maximum current consumption of 20 mA. Mass is 49 g and operating temperature ranges from -40°C to +125°C. The device is designed for chassis or panel mounting with unidirectional polarization.



    LEM HSNBV 800-R02 Key Specifications

    Parameter

    Value

    Rated current (IPN)

    800 A

    Measuring range (IPM)

    ±800 A

    Output signal

    0-5 V (ratiometric voltage)

    Sensitivity (Output 1)

    2.5 mV/A

    Supply voltage (VC)

    4.75 V to 5.25 V

    Accuracy (X)

    ±3 %

    Linearity (εL)

    ±0.5 %

    Delay time to 70% (tD70)

    10 ms

    Bandwidth (BW)

    DC to 1.1 kHz

    Insulation test voltage (Vd)

    2.5 kV RMS / 50 Hz / 1 min

    Operating temp (TA)

    -40°C to +125°C

    Mass (m)

    49 g

    Mounting

    Chassis / Panel

    Polarization

    Unidirectional

    Technology

    Open-loop Hall effect

    Applications

    Automotive Battery Management



    LEM HSNBV 800-R02 Key Advantages

    The HSNBV 800-R02 employs open-loop Hall effect technology with an integrated busbar, providing galvanic separation between primary and secondary circuits for safe integration into automotive systems. A key differentiator of the R02 variant is the dual redundant output channels, offering system-level fault tolerance and safety for critical automotive functions. The ratiometric output ensures the sensor's sensitivity and offset scale proportionally with the supply voltage, maintaining accuracy across variations. The integrated busbar design reduces sensor size and weight while maintaining performance comparable to traditional C-core sensors. The wide -40°C to +125°C operating temperature range ensures reliable performance in harsh automotive environments.



    LEM HSNBV 800-R02 Typical Applications

    Battery Management Systems for automotive applications
    Electric, hybrid, and utility vehicles
    48 V battery systems
    High-power, low-voltage automotive power electronics
    Battery monitoring and protection systems
    Power distribution units
    Automotive battery pack current monitoring



    Why Choose the LEM HSNBV 800-R02?

    The HSNBV 800-R02 combines an 800 A rated current with a 0-5 V ratiometric output and dual redundant output channels in a compact panel-mount package with an integrated busbar. Manufactured by LEM, it delivers stable, accurate, and safe current measurement specifically for automotive battery management applications. The open-loop Hall effect design offers a cost-effective solution with excellent linearity, very low thermal offset and sensitivity drift, and an integrated busbar that simplifies system integration, reduces weight, and minimizes space requirements. Compliance with automotive-grade operating temperature range ensures reliable performance in demanding automotive environments. The part is Active with a 10-week lead time.
