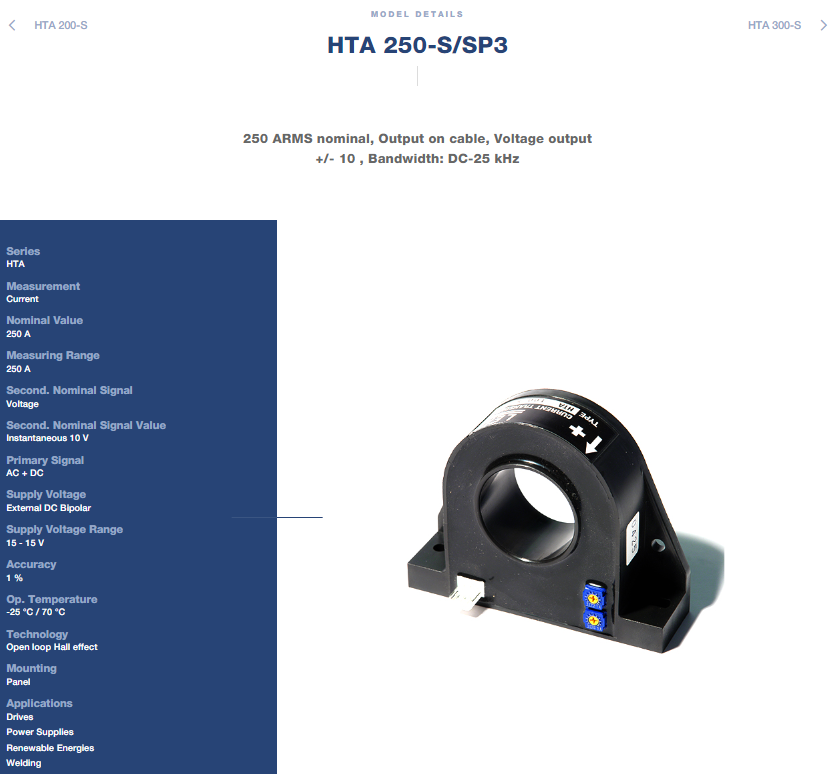

    LEM HTA 250-S/SP3 HTA Series Open Loop Hall Effect Current Transducer



    LEM HTA 250-S/SP3 Product Overview

    The HTA 250-S/SP3 is an open-loop Hall effect current transducer from LEM's HTA Series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary and secondary circuits . This panel-mount transducer features a 32 mm diameter aperture for non-intrusive installation and a 2 m screened output cable as a special feature .

    Rated for 250 A nominal with a measuring range of ±250 A, it outputs an analog voltage of ±10 V with ±1% accuracy and ±0.5% linearity . Response time is <3 µs and frequency bandwidth is DC to 25 kHz . Supply voltage range is ±15 V (±10%) with a current consumption of <25 mA . Mass is 300 g and operating temperature ranges from -25°C to +70°C . Insulation test voltage is 4.0 kV RMS at 50 Hz for 1 minute, with 7.2 mm creepage and clearance distances . The insulating plastic case is recognized according to UL 94-V0 .



    LEM HTA 250-S/SP3 Key Specifications

    Parameter

    Value

    Rated current (IPN)

    250 A

    Measuring range (IPM)

    ±250 A

    Output signal

    ±10 V (instantaneous voltage)

    Supply voltage (VC)

    ±15 V (±10%)

    Accuracy (X)

    ±1 %

    Linearity (εL)

    ±0.5 %

    Response time (tr)

    <3 µs

    Bandwidth (BW)

    DC to 25 kHz

    Insulation test voltage (Vd)

    4.0 kV RMS / 50 Hz / 1 min

    Creepage/Clearance (dCp/dCl)

    7.2 / 7.2 mm

    Aperture

    32 mm diameter

    Operating temp (TA)

    -25°C to +70°C

    Mass (m)

    300 g

    Mounting

    Panel (horizontal or vertical)

    Secondary connection

    4-core screened cable, 2 m

    Technology

    Open-loop Hall effect

    Standards

    EN 50178:1997



    LEM HTA 250-S/SP3 Key Advantages

    The HTA 250-S/SP3 employs open-loop Hall effect technology, delivering ±1% accuracy and ±0.5% linearity while providing galvanic isolation with 4.0 kV insulation voltage . The 32 mm aperture enables non-intrusive installation without disconnecting existing cables, and the 2 m screened cable simplifies wiring in panel-mount applications .

    The design offers very good linearity, low temperature drift (TCVout ±0.05%/K), high immunity to external interference, very low insertion losses, and current overload capability . Panel mounting supports both horizontal and vertical positions with M4 screws (recommended torque 0.75 N·m) .



    LEM HTA 250-S/SP3 Typical Applications

    AC variable speed drives and servo motor drives
    Static converters for DC motor drives
    Battery supplied applications
    Uninterruptible Power Supplies (UPS)
    Switched Mode Power Supplies (SMPS)
    Power supplies for welding applications
    Renewable energy systems
    Industrial power conversion equipment



    Why Choose the LEM HTA 250-S/SP3?

    The HTA 250-S/SP3 combines a 250 A rated current with ±10 V voltage output in a robust panel-mount package with a 32 mm aperture and 2 m screened cable. Manufactured by LEM, it delivers stable, accurate, and safe current measurement for industrial applications. Compliance with EN 50178:1997 and UL 94-V0 ensures reliable operation in demanding environments . The 5-year LEM warranty provides long-term reliability assurance.



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Lindsay
    Apr 13, 2026
    The quality of the product is great, the delivery is fast.
    Osa
    Jan 11, 2026
    Extremely satisfied, identical to the original.
    Baird
    Dec 19, 2025
    perfect responsiveness, quality and speed
    Connor
    Jan 31, 2024
    Good goods, better people!
    Karli
    Apr 08, 2023
    Re-order
     123
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
