HTFS 200-P/SP2 , HTFS200-P/SP2

HOT OFFER// Authorized Distributor
  • MacroQuest Part#HTFS 200-P/SP2
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $16.71 - $26.86
    / Pieces
    |
    Pieces(Min. Order)
    1-9 Pieces $26.86
    10-99 Pieces $21.42
    >=100 Pieces $16.71
    Quantity:
    In Stock
    $16.71
    (0 In Stock)
    Available
    $16.71
    LT: 6-8 weeks
    (6682 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

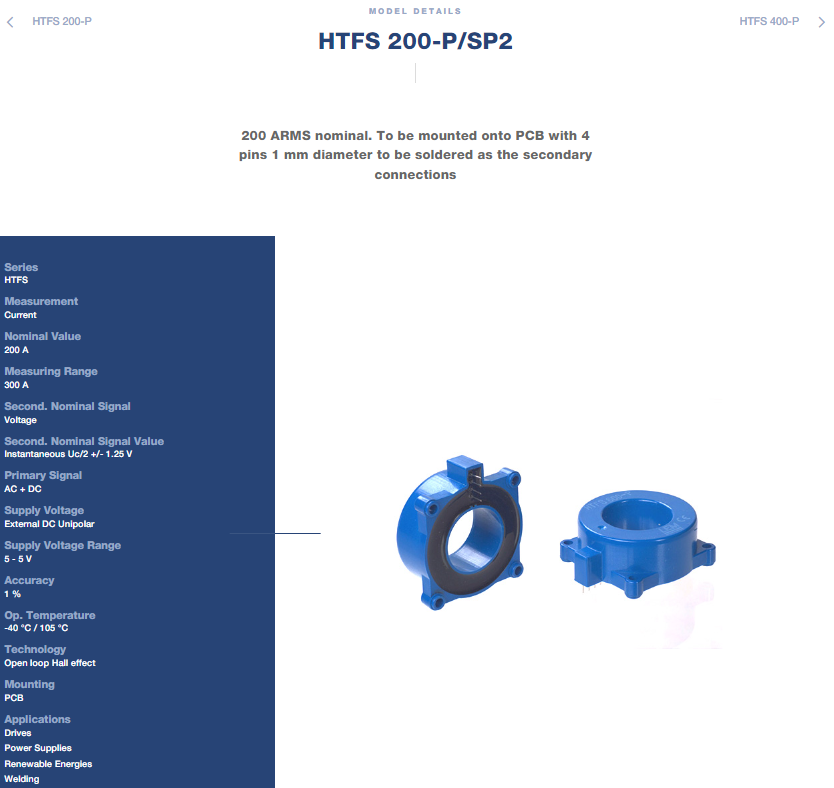

    LEM HTFS 200-P/SP2 HTFS Series Open Loop Hall Effect Current Transducer



    LEM HTFS 200-P/SP2 Product Overview

    The HTFS 200-P/SP2 is an open-loop Hall effect current transducer from LEM's HTFS Series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary and secondary circuits. This PCB-mount transducer is part of a family offering 200 A, 400 A, and 800 A nominal ratings within the same design, providing flexibility and simplifying inventory management.

    Rated for 200 A nominal with a measuring range of ±300 A, it outputs a ratiometric analog voltage of VREF ± (1.25 × IP / IPN) V. Accuracy is ≤±1% at 25°C with ≤±0.5% linearity. Response time is <3.5 µs and bandwidth is DC to 240 kHz. Supply voltage is +5 V (±5%) with typical current consumption of 19 mA. Mass is 60 g and operating temperature ranges from -40°C to +105°C. The insulating plastic case is recognized according to UL 94-V0.



    LEM HTFS 200-P/SP2 Key Specifications

    Parameter

    Value

    Rated current (IPN)

    200 A

    Measuring range (IPM)

    ±300 A

    Output signal

    Ratiometric voltage

    Supply voltage (VC)

    +5 V (±5%)

    Accuracy (X)

    ≤±1 %

    Linearity (εL)

    ≤±0.5 %

    Response time (tr)

    <3.5 µs

    Bandwidth (BW)

    DC to 240 kHz

    Operating temp (TA)

    -40°C to +105°C

    Mass (m)

    60 g

    Mounting

    PCB



    LEM HTFS 200-P/SP2 Key Advantages

    The HTFS 200-P/SP2 employs open-loop Hall effect technology, delivering ≤±1% accuracy and ≤±0.5% linearity while providing galvanic isolation. The ±300 A measuring range accommodates overloads up to 1.5 times nominal current, and the 240 kHz bandwidth captures dynamic signals with high fidelity. The VREF IN/OUT feature allows external reference overdrive between 0.5 V and 2.65 V for system flexibility. The single +5 V supply simplifies integration, and the compact PCB design offers low power consumption, high immunity to interference, and no insertion losses.



    LEM HTFS 200-P/SP2 Typical Applications

    Forklift drives and industrial vehicle control
    AC variable speed drives and servo motor drives
    Static converters for DC motor drives
    Battery supplied applications
    Uninterruptible Power Supplies (UPS)
    Switched Mode Power Supplies (SMPS)
    Power supplies for welding applications
    Industrial power management and automation



    Why Choose the LEM HTFS 200-P/SP2?

    The HTFS 200-P/SP2 combines a 200 A rated current and ±300 A measuring range with ratiometric voltage output in a compact PCB-mount package. Manufactured by LEM, it delivers stable, accurate, and safe current measurement for industrial applications. The open-loop Hall effect design offers a cost-effective solution with single +5 V supply, excellent interference immunity, and a small footprint. Compliance with EN 50178 and UL 94-V0 ensures reliable operation in demanding environments.



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Westbrook
    Feb 04, 2026
    The items are great, I am very satisfied
    Jaclyn
    Nov 16, 2025
    I am super happy and satisfied with my purchase from this supplier! The package is awesome.
    Florine
    Apr 21, 2025
    Very satisfied, the quality is very good.
    Iesha
    Nov 08, 2024
    Good quality, Delivery is also timely.
    Felipe
    Nov 07, 2023
    Re-order
     12
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
