HTFS 400-P , HTFS400-P

HOT OFFER// Authorized Distributor
  • MacroQuest Part#HTFS 400-P
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $16.71 - $24.28
    / Pieces
    |
    Pieces(Min. Order)
    1-9 Pieces $24.28
    10-99 Pieces $21.42
    >=100 Pieces $16.71
    Quantity:
    In Stock
    $16.71
    (0 In Stock)
    Available
    $16.71
    LT: 6-8 weeks
    (8685 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

    LEM HTFS 400-P HTFS Series Open Loop Hall Effect Current Transducer



    LEM HTFS 400-P Product Overview

    The HTFS 400-P is an open-loop Hall effect current transducer from LEM's HTFS Series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary and secondary circuits . This compact PCB-mount transducer is part of a family offering 200 A, 400 A, and 800 A nominal ratings within the same design, simplifying inventory management and providing design flexibility for industrial applications .

    Rated for 400 A nominal with a measuring range of ±600 A , it outputs a ratiometric analog voltage signal following the formula VREF±(1.25⋅IP/IPN)VREF​±(1.25⋅IP​/IPN​) V, with a typical output of 1.25 V at nominal current . The transducer provides ≤±1% accuracy at 25°C and ≤±0.5% linearity error . The reference voltage (VREF) is nominally 2.5 V (1/2 VC) with an output impedance of 200 Ω typical . The device achieves a response time to 90% of IPN of 3.5 µs  and a frequency bandwidth (-3 dB) of DC to 240 kHz . Supply voltage is +5 V (±5%) with a current consumption of 22 mA typical . Mass is 60 g and operating temperature ranges from -40°C to +105°C . Insulation creepage and clearance distances are >4 mm with CTI >220 V . The insulating plastic case is recognized according to UL 94-V0 . Fixation to PCB is via 4 pins Ø1 mm .

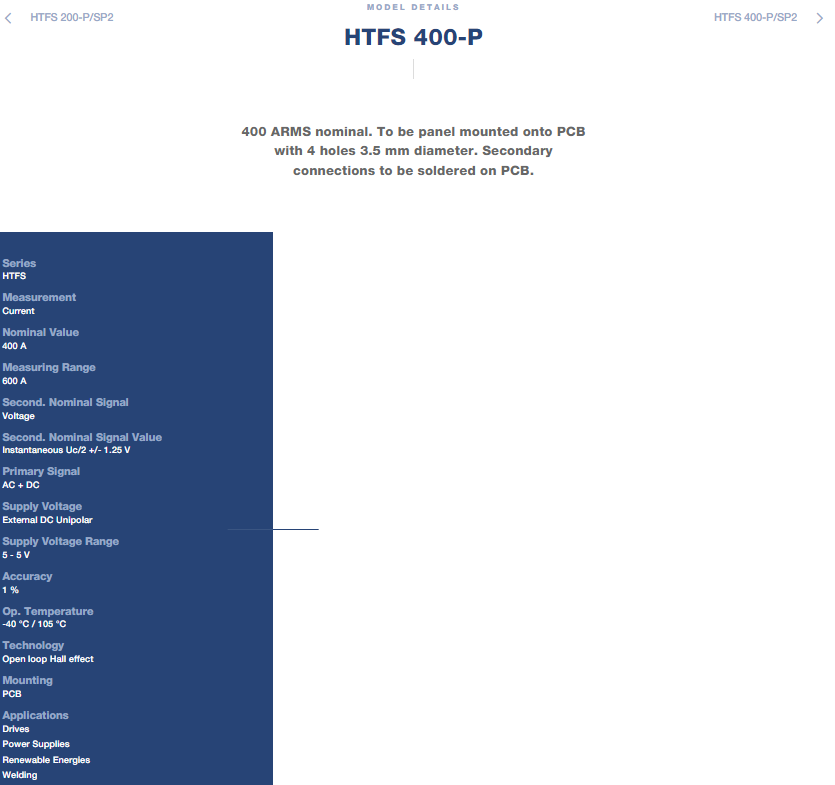

    LEM HTFS 400-P Key Specifications

    Parameter

    Value

    Rated current (IPN)

    400 A

    Measuring range (IPM)

    ±600 A

    Output signal

    Ratiometric voltage (VREF±1.25⋅IP/IPNVREF​±1.25⋅IP​/IPN​)

    Supply voltage (VC)

    +5 V (±5 %)

    Accuracy (X) @ 25°C

    ≤ ±1 %

    Linearity error (εL)

    ≤ ±0.5 %

    Response time (tr) @ 90% of IPN

    3.5 µs

    Bandwidth (BW)

    DC to 240 kHz (-3 dB)

    Load resistance (RL)

    ≥2 kΩ

    Insulation test voltage (Vd)

    2.5 kV RMS / 50 Hz / 1 min

    Creepage/Clearance

    >4 / >4 mm

    Operating temp (TA)

    -40°C to +105°C

    Mass (m)

    60 g

    Mounting

    PCB (4 pins Ø1 mm)

    Technology

    Open-loop Hall effect

    Standards

    EN 50178:1997



    LEM HTFS 400-P Key Advantages

    The HTFS 400-P employs open-loop Hall effect technology with a proprietary ASIC, delivering ≤±1% accuracy and ≤±0.5% linearity while providing galvanic isolation between primary and secondary circuits . The ±600 A measuring range accommodates overloads up to 1.5 times the nominal current, with a magnetic offset after 3× overload of <±0.5% of IPN . The 240 kHz bandwidth and 3.5 µs response time capture dynamic current signals with high fidelity .

    A key feature is the VREF IN/OUT access, allowing the reference voltage to be overdriven with an external reference voltage between 2 V and 2.8 V, providing system-level flexibility . The single +5 V supply simplifies integration into low-voltage systems without requiring bipolar supplies . The compact PCB-mount design offers low power consumption (22 mA), small size and space saving, high immunity to external interference, and no insertion losses . Only one design covers a wide current ratings range from 200 A to 800 A, simplifying inventory management .



    LEM HTFS 400-P Typical Applications

    Forklift drives and industrial vehicle control
    AC variable speed drives and servo motor drives
    Static converters for DC motor drives
    Battery supplied applications
    Uninterruptible Power Supplies (UPS)
    Switched Mode Power Supplies (SMPS)
    Power supplies for welding applications
    Industrial power management and automation

    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Una
    May 07, 2026
    Very good cooperation
    Lucas
    Sep 16, 2025
    Good product, good quality and good service.
    Isabella
    Apr 18, 2025
    The company's experience and knowledge of the industry are second to none. Their expertise allows them to provide professional guidance and advice to customers.
    Olina
    Oct 04, 2024
    Nice prompt and professional service, Thanks Elsa.
    Ulysses
    Mar 05, 2024
    Macroquest is a professional company, hope more bisiness with them!!!
     12
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
    pop_close
    pop_main
    Stay In The Know
    Enter your email to hear from us about Product list, Latest Products and Customer application examples!
