HX 10-NP , HX10-NP

HOT OFFER// Authorized Distributor
  • MacroQuest Part#HX 10-NP
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $10.72 - $21.42
    / Pieces
    |
    Pieces(Min. Order)
    1-9 Pieces $21.42
    10-99 Pieces $18.57
    100-299 Pieces $14.42
    300-899 Pieces $11.71
    >=900 Pieces $10.72
    Quantity:
    In Stock
    $10.72
    (0 In Stock)
    Available
    $10.72
    LT: 6-8 weeks
    (6615 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

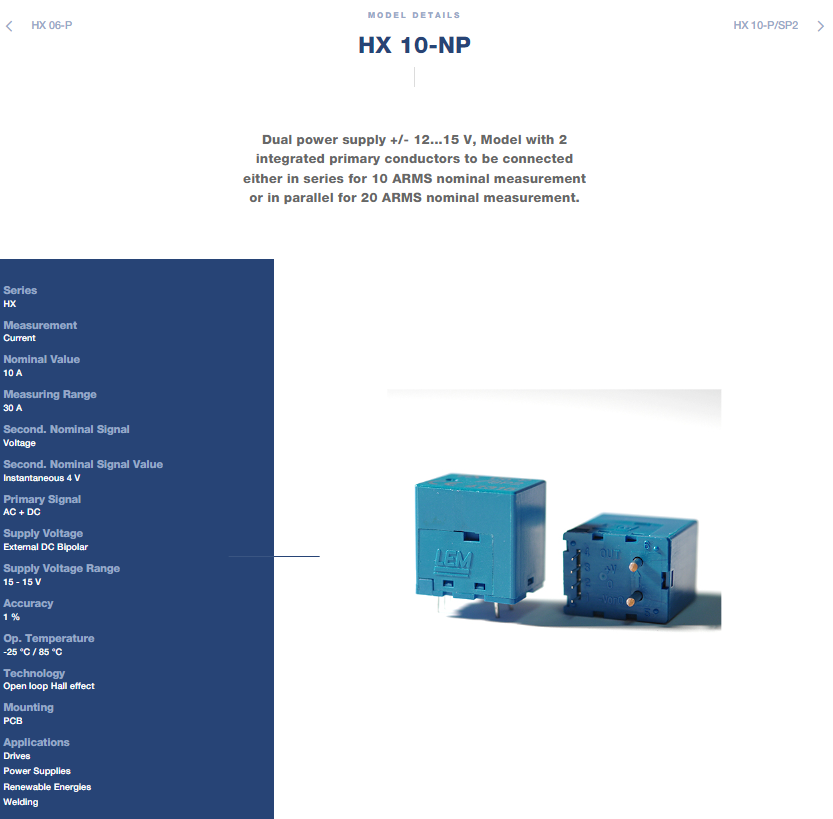

    LEM HX 10-NP HX Series Open Loop Hall Effect Current Transducer



    LEM HX 10-NP Product Overview

    The HX 10-NP is an open-loop Hall effect current transducer from LEM's HX Series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary circuit and the secondary circuit . This compact PCB-mount transducer features a multi-range design via PCB pattern layout, allowing the nominal current to be set to 10 A (series connection) or 20 A (parallel connection) . The device requires minimal board space and weighs only 8 g .

    Rated for selectable nominal currents of 10 A (measuring range ±30 A) or 20 A (measuring range ±60 A), it outputs an analog voltage of ±4 V with ±1% accuracy and ±0.1% linearity . Response time is 3 µs and frequency bandwidth is DC to 50 kHz . Supply voltage is ±15 V (±5%) with current consumption of <15 mA . Operating temperature ranges from -25°C to +85°C . Insulation test voltage is 3000 V RMS at 50 Hz for 1 minute . The insulating plastic case is recognized according to UL 94-V0 . Please note: This model has product status Not For New Designs .



    LEM HX 10-NP Key Specifications

    Parameter

    Value

    Rated current (IPN)

    10 A (series), 20 A (parallel)

    Measuring range (IPM)

    ±30 A (series), ±60 A (parallel)

    Output signal

    ±4 V (analog voltage)

    Supply voltage (VC)

    ±15 V (±5%)

    Accuracy

    ±1 %

    Linearity (εL)

    ±0.1 %

    Response time (tr)

    3 µs

    Bandwidth (BW)

    DC to 50 kHz

    Insulation test voltage (Vd)

    3000 V RMS / 50 Hz / 1 min

    Operating temp (TA)

    -25°C to +85°C

    Mass (m)

    8 g

    Mounting

    PCB (through-hole)

    Technology

    Open-loop Hall effect

    Product Status

    Not For New Designs



    LEM HX 10-NP Key Advantages

    The HX 10-NP employs open-loop Hall effect technology, delivering ±1% accuracy and ±0.1% linearity while providing galvanic isolation with a 3000 V insulation test voltage . The multi-range NP design allows a single transducer to cover 10 A or 20 A nominal currents by changing primary connections (6+6 turns for 10 A, 3+3 turns for 20 A) , providing application flexibility and simplifying inventory management . The 50 kHz bandwidth and 3 µs response time capture dynamic current signals in motor drive and power conversion applications . The compact PCB-mount design offers low power consumption (<15 mA), easy mounting with automatic handling systems, high immunity to external interference, low insertion losses, and small size .



    LEM HX 10-NP Typical Applications

    AC variable speed drives and servo motor drives
    Static converters for DC motor drives
    Battery supplied applications
    Uninterruptible Power Supplies (UPS)
    Switched Mode Power Supplies (SMPS)
    Power supplies for welding applications
    Sensing and instrumentation
    Industrial power management



    Why Choose the LEM HX 10-NP?

    The HX 10-NP combines selectable 10 A/20 A current ratings with ±4 V voltage output in a compact PCB-mount package . Manufactured by LEM, it delivers stable, accurate, and safe current measurement for industrial applications. The open-loop Hall effect design offers a cost-effective solution with excellent external interference immunity and a small footprint . Compliance with UL 94-V0 flame rating ensures safe operation in industrial environments . Please note that this model has product status Not For New Designs and is not recommended for new projects .
