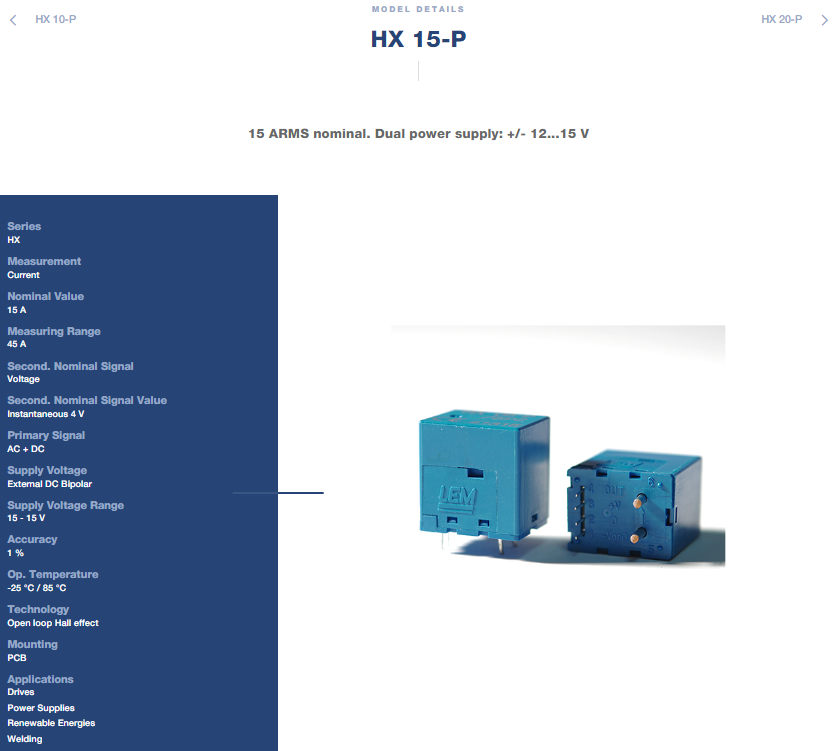

    LEM HX 15-P HX Series Open Loop Hall Effect Current Transducer



    LEM HX 15-P Product Overview

    The HX 15-P is an open-loop Hall effect current transducer from LEM's HX Series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary and secondary circuits . This compact PCB-mount transducer is part of the HX family covering nominal currents from 3 A to 50 A, with a single design that simplifies inventory management across multiple current ratings .

    Rated for 15 A nominal with a measuring range of ±45 A (3 × IPN), it outputs an analog voltage of ±4 V with ±1% accuracy and ±1% linearity . Response time is 3 µs and frequency bandwidth (-3 dB) is 50 kHz . Supply voltage range is ±12 V to ±15 V (±5%) with current consumption of 15 mA . Mass is 8 g and operating temperature ranges from -25°C to +85°C . Insulation test voltage is 3000 V RMS at 50 Hz for 1 minute, with ≥5.5 mm creepage and clearance distances . The primary conductor requires 1.4 mm diameter × 4 turns . The insulating plastic case is recognized according to UL 94-V0 . Electrical offset voltage at 25°C is <±40 mV, with thermal drift of ±1.5 mV/K typical .



    LEM HX 15-P Key Specifications

    Parameter

    Value

    Rated current (IPN)

    15 A

    Measuring range (IPM)

    ±45 A

    Output signal

    ±4 V (analog voltage)

    Supply voltage (VC)

    ±12 V to ±15 V (±5%)

    Accuracy (ε)

    ±1 %

    Linearity (εL)

    ±1 %

    Response time (tr)

    3 µs

    Bandwidth (BW)

    50 kHz (-3 dB)

    Output internal resistance (ROUT)

    <50 Ω

    Load resistance (RL)

    ≥10 kΩ

    Insulation test voltage (Vd)

    3000 V RMS / 50 Hz / 1 min

    Creepage/Clearance (dCp/dCl)

    ≥5.5 / ≥5.5 mm

    Operating temp (TA)

    -25°C to +85°C

    Mass (m)

    8 g

    Mounting

    PCB (through-hole)

    Primary conductor

    1.4 mm ø × 4 turns

    Technology

    Open-loop Hall effect

    Standards

    EN 50178



    LEM HX 15-P Key Advantages

    The HX 15-P employs open-loop Hall effect technology, delivering ±1% accuracy and ±1% linearity while providing galvanic isolation with a 3000 V insulation test voltage and ≥5.5 mm creepage and clearance . The ±45 A measuring range accommodates overloads up to three times the nominal current . The 50 kHz bandwidth and 3 µs response time capture dynamic current signals in motor drive and power conversion applications .

    The compact PCB-mount design requires only 2.93 cm² of board space and weighs 8 g , offering low power consumption (15 mA), small size, easy mounting with automatic handling systems, high immunity to external interference, and no insertion losses .



    LEM HX 15-P Typical Applications

    AC variable speed drives and servo motor drives
    Static converters for DC motor drives
    Battery supplied applications
    Uninterruptible Power Supplies (UPS)
    Switched Mode Power Supplies (SMPS)
    Power supplies for welding applications
    Electrical appliances (air conditioners, etc.)
    Renewable energy systems and combiner boxes



    Why Choose the LEM HX 15-P?

    The HX 15-P combines a 15 A rated current and ±45 A measuring range with ±4 V analog voltage output in a compact PCB-mount package. Manufactured by LEM, it delivers stable, accurate, and safe current measurement for industrial applications. The open-loop Hall effect design offers a cost-effective solution with excellent external interference immunity, low power consumption, and a small footprint. A single design covers a wide current ratings range from 3 A to 50 A, simplifying inventory management . Compliance with EN 50178 standards and UL 94-V0 flame rating ensures reliable and safe operation in demanding industrial environments. The 5-year warranty provides long-term reliability assurance .



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Bainbridge
    Apr 15, 2026
    Very good quality and the send was fast I recommend this seller is perfect.
    Bekki
    Dec 27, 2025
    Hope we can keep long business relationship.
    Bailee
    Jul 20, 2024
    Great Seller !
    Yolanda
    Mar 02, 2023
    Worth recommending!
    Newman
    May 22, 2022
    Great service...will use again!
     12
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
