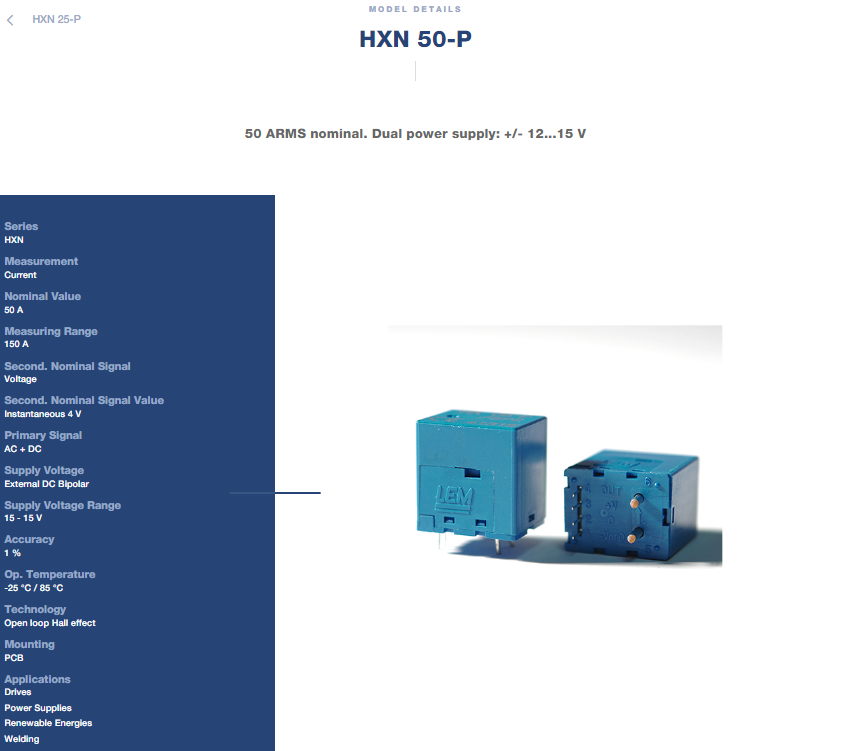

    LEM HXN 50-P HXN Series Open Loop Hall Effect Current Transducer



    LEM HXN 50-P Product Overview

    The HXN 50-P is an open-loop Hall effect current transducer from LEM's HXN Series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary circuit and the secondary circuit . This compact PCB-mount transducer is part of a family covering nominal currents from 3 A to 50 A, with a single design for wide current ratings range that simplifies inventory management .

    Rated for 50 A nominal with a measuring range of ±150 A (3 × IPN), it outputs an analog voltage of ±4 V with ≤±1% accuracy and ≤±1% linearity . The output internal resistance is <50 Ω, with a minimum load resistance of ≥10 kΩ . Delay time to 90% of output value is 3 µs and frequency bandwidth (-3 dB) is 50 kHz . Supply voltage is ±15 V (±5%), also operable at ±12 V (measuring range reduced to ±2.5 × IPN) . Current consumption is <±15 mA . Mass is 8 g and operating temperature ranges from -25°C to +85°C . Insulation test voltage is 3000 V RMS at 50 Hz for 1 minute with 5.5 mm creepage and clearance . The insulating plastic case is recognized according to UL 94-V0 . Electrical offset voltage at 25°C is <±40 mV, with thermal drift of <±1.5 mV/K .



    LEM HXN 50-P Key Specifications

    Parameter

    Value

    Rated current (IPN)

    50 A

    Measuring range (IPM)

    ±150 A

    Output signal

    ±4 V (analog voltage)

    Supply voltage (VC)

    ±15 V (±5%)

    Accuracy (ε)

    ≤±1 %

    Linearity (εL)

    ≤±1 %

    Delay time to 90% (tD90)

    3 µs

    Bandwidth (BW)

    50 kHz (-3 dB)

    Output internal resistance (ROUT)

    <50 Ω

    Load resistance (RL)

    ≥10 kΩ

    Insulation test voltage (Vd)

    3000 V RMS / 50 Hz / 1 min

    Creepage/Clearance (dCp/dCl)

    5.5 / 5.5 mm

    Operating temp (TA)

    -25°C to +85°C

    Storage temp (TAs)

    -40°C to +85°C

    Mass (m)

    8 g

    Mounting

    PCB (through-hole)

    Primary conductor

    1.2 × 6.3 mm, 1 turn

    Technology

    Open-loop Hall effect

    Standards

    EN 50178:1997



    LEM HXN 50-P Key Advantages

    The HXN 50-P employs open-loop Hall effect technology with an insulating plastic case recognized according to UL 94-V0, providing galvanic isolation between primary and secondary circuits with a 3000 V insulation test voltage and 5.5 mm creepage and clearance . The ±150 A measuring range accommodates overloads up to three times the nominal current . The 50 kHz bandwidth and 3 µs delay time capture dynamic current signals in motor drive and power conversion applications . The compact PCB-mount design offers low power consumption (<±15 mA), small size and space saving, high immunity to external interference, easy mounting with automatic handling systems, and no insertion losses .



    LEM HXN 50-P Typical Applications

    AC variable speed drives and servo motor drives
    Static converters for DC motor drives
    Battery supplied applications
    Uninterruptible Power Supplies (UPS)
    Switched Mode Power Supplies (SMPS)
    Electrical appliances
    Renewable energy systems
    Welding equipment



    Why Choose the LEM HXN 50-P?

    The HXN 50-P combines a 50 A rated current and ±150 A measuring range with ±4 V analog voltage output in a compact PCB-mount package. Manufactured by LEM, it delivers stable, accurate, and safe current measurement for industrial applications. The open-loop Hall effect design offers a cost-effective solution with excellent external interference immunity, low power consumption, and a small footprint. Compliance with EN 50178:1997 standards and UL 94-V0 flame rating ensures reliable and safe operation in demanding industrial environments. A single design covers a wide current ratings range from 3 A to 50 A, simplifying inventory management .



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Herbert
    Jan 17, 2026
    The sales is very nice.
    Dave
    Dec 10, 2025
    We have bought many times from Macroquest and every time it has ran smotth.
    Acuff
    May 10, 2025
    The packaging is perfect, and the delivery speed is very fast.
    Osborn
    May 21, 2024
    I am happy with the quality and the shipping service was super fast.
    Gayle
    Jun 27, 2023
    We have found this vendor to be very honest & sincere, they will stand behind their parts.
     12
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
