HY 50-P/SP1 , HY50-P/SP1

HOT OFFER// Authorized Distributor
  • MacroQuest Part#HY 50-P/SP1
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $19.65 - $42.85
    / Pieces
    |
    Pieces(Min. Order)
    1-9 Pieces $42.85
    10-99 Pieces $28.57
    >=100 Pieces $19.65
    Quantity:
    In Stock
    $19.65
    (0 In Stock)
    Available
    $19.65
    LT: 6-8 weeks
    (6874 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

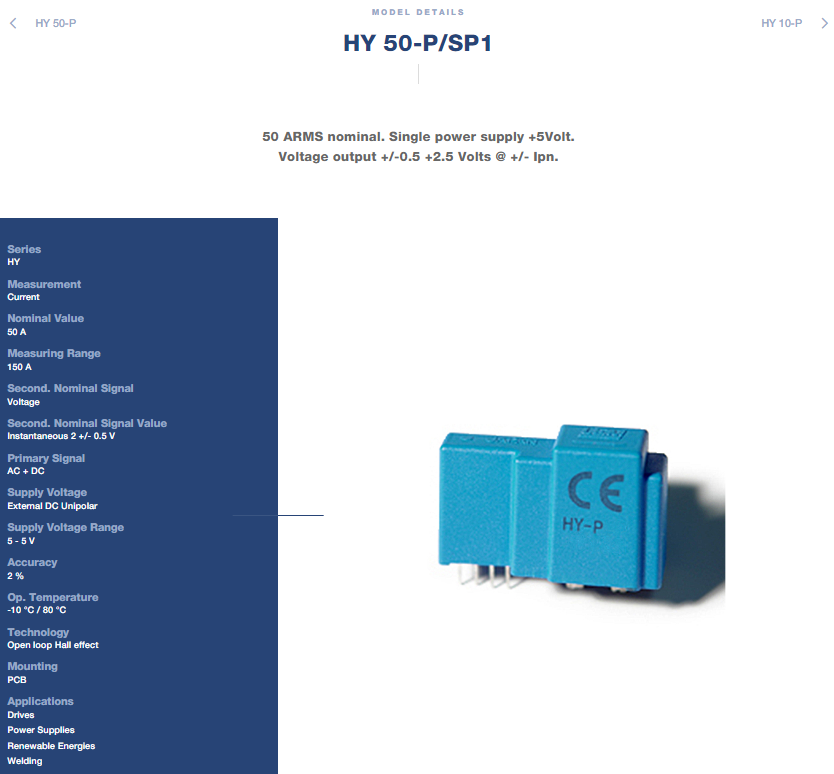

    LEM HY 50-P/SP1 HY Series Open Loop Hall Effect Current Transducer



    LEM HY 50-P/SP1 Product Overview

    The HY 50-P/SP1 is an open-loop Hall effect current transducer from LEM's HY Series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary and secondary circuits. This PCB-mount transducer is the SP1 variant with a single +5 V power supply and a voltage output of 2.5 ±0.5 V at nominal current, making it suitable for low-voltage systems.

    Rated for 50 A nominal with a measuring range of ±150 A (3 × IPN), it outputs an analog voltage of 2.5 ±0.5 V with <±2% accuracy and <±1% linearity. Response time is <5 µs with a di/dt accurately followed >50 A/µs, and frequency bandwidth is DC to 50 kHz. Supply voltage is +5 V (±5%) with a current consumption of ±10 mA. Mass is <14 g and operating temperature ranges from -10°C to +80°C. Insulation test voltage is 2500 V RMS at 50 Hz for 1 minute with an insulation resistance >1000 MΩ at 500 V DC. The primary conductor aperture is 1.6 × 3.5 mm for the 50 A model. Output internal resistance is 100 Ω and minimum load resistance is 1 kΩ. Electrical offset voltage at 25°C is <+2 V ±25 mV with thermal drift of ±1.5 mV/K typical and ±3 mV/K maximum. The device can withstand overload current up to 50 × IPN for 1 ms.



    LEM HY 50-P/SP1 Key Specifications

    Parameter

    Value

    Rated current (IPN)

    50 A

    Measuring range (IPM)

    ±150 A (3 × IPN)

    Output signal

    2.5 ±0.5 V (analog voltage)

    Supply voltage (VC)

    +5 V (±5%)

    Accuracy (X)

    <±2 %

    Linearity (εL)

    <±1 % of IPN

    Response time (tr)

    <5 µs

    di/dt accurately followed

    >50 A/µs

    Bandwidth (BW)

    DC to 50 kHz

    Insulation (Vd)

    2500 V RMS / 50 Hz / 1 min

    Output resistance (ROUT)

    100 Ω

    Load resistance (RL)

    >1 kΩ

    Operating temp (TA)

    -10°C to +80°C

    Storage temp (TS)

    -25°C to +85°C

    Mass (m)

    <14 g

    Mounting

    PCB (through-hole)

    Technology

    Open-loop Hall effect

    Standards

    EN 50178:1997



    LEM HY 50-P/SP1 Key Advantages

    The HY 50-P/SP1 employs open-loop Hall effect technology with an insulating plastic case recognized according to UL 94-V0, providing galvanic isolation between primary and secondary circuits with a 2500 V isolation voltage. The ±150 A measuring range accommodates overloads up to three times the nominal current, with a peak withstand capability of 50 × IPN for 1 ms. The 50 kHz bandwidth and <5 µs response time capture dynamic current signals in motor drive and power conversion applications. A key differentiator of the SP1 variant is the single +5 V supply, simplifying integration into low-voltage systems without requiring bipolar supplies. The compact PCB-mount design offers small size, space savings, low power consumption, and high immunity to external interference.



    LEM HY 50-P/SP1 Typical Applications

    Static converters for DC motor drives
    Switched Mode Power Supplies (SMPS)
    AC variable speed drives
    Uninterruptible Power Supplies (UPS)
    Battery supplied applications
    General purpose inverters
    Power supplies for welding applications
    AC motor speed control



    Why Choose the LEM HY 50-P/SP1?

    The HY 50-P/SP1 combines a 50 A rated current and ±150 A measuring range with 2.5 ±0.5 V voltage output in a compact PCB-mount package. Manufactured by LEM, it delivers stable, accurate, and safe current measurement for industrial applications where single +5 V supply operation is required. The open-loop Hall effect design offers a cost-effective solution with excellent external interference immunity and small footprint. Compliance with EN 50178:1997 standards and UL 94-V0 flame rating ensures reliable and safe operation in demanding industrial environments.



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Vinson
    Apr 15, 2026
    Everyone is doing great job!
    Cristina
    Oct 21, 2025
    Good support, great Company, new and original.
    Tillie
    Feb 14, 2024
    Good goods, better people!
    Fadwa
    Apr 13, 2023
    Great company, Elsa is the best......
    Queenie
    Sep 12, 2022
    Great parts. Good supplier.
     12
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
