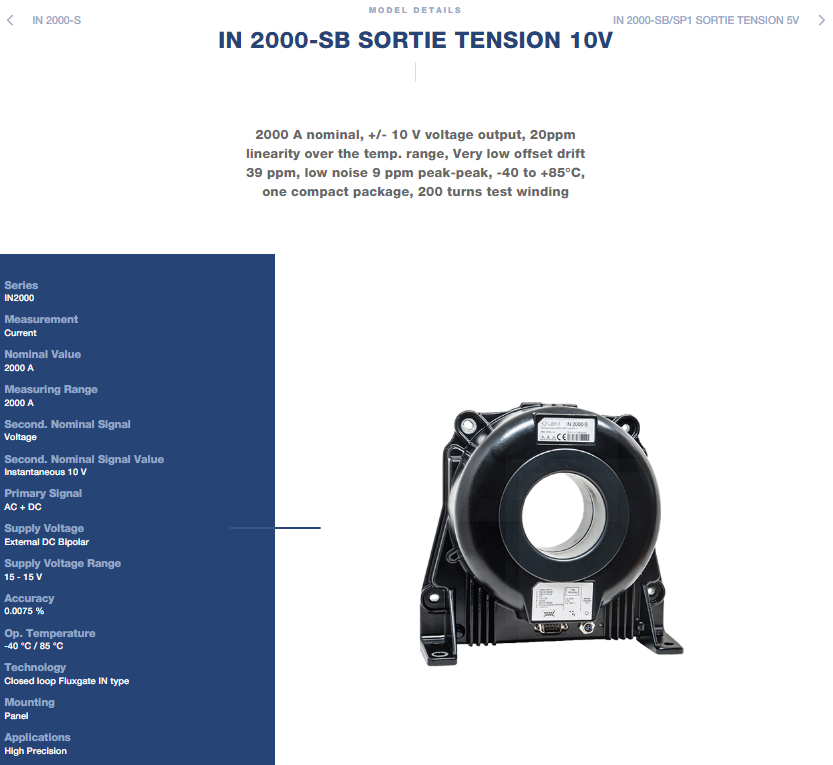

IN 2000-SB SORTIE TENSION 10V , IN2000-SBSORTIETENSION10V

Second. Nominal Signal[Instantaneous:Voltage 10 V]
  • MacroQuest Part#IN 2000-SB SORTIE TENSION 10V
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $0.00
    / Pieces
    |
    Pieces(Min. Order)
    Contact us for quotation:
    quantity
    $0.00
    (0 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

    LEM IN 2000-SB IN Series Ultra-Stab Closed Loop Fluxgate Current Transducer



    LEM IN 2000-SB Product Overview

    The IN 2000-SB is a closed-loop Fluxgate current transducer from LEM's IN Series, designed for ultra-high precision measurement of DC, AC, and pulsed currents with galvanic isolation. This panel-mount transducer features an electrostatic shield between primary and secondary circuits and delivers exceptional accuracy for demanding calibration, medical, and high-precision industrial applications.

    Rated for 2000 A nominal with a measuring range of ±2000 A, it outputs an instantaneous voltage signal of ±10 V with 0.0075% accuracy. Sensitivity is 200 mV/A. Linearity error is 15 ppm over temperature, with offset drift of 39 ppm and peak-to-peak noise of 9 ppm. Delay time to 90% output is 1 µs and small-signal bandwidth is 113 kHz (±1 dB). Supply voltage range is ±14.25 V to ±15.75 V. Mass is 4.2 kg and operating temperature ranges from -40°C to +85°C. Insulation test voltage is 6 kV RMS at 50 Hz for 1 minute, with 21 mm clearance and 22 mm creepage distance. The output interface is via a 9-pin D-Sub male connector, supporting flat or vertical panel mounting.



    LEM IN 2000-SB Key Specifications

    Parameter

    Value

    Rated current (IPN)

    2000 A

    Measuring range (IPM)

    ±2000 A

    Output signal

    ±10 V (instantaneous voltage)

    Sensitivity

    200 mV/A

    Supply voltage (VC)

    ±14.25 V to ±15.75 V

    Accuracy

    0.0075 %

    Linearity error (εL)

    15 ppm (over temperature)

    Offset drift

    39 ppm

    Peak-to-peak noise

    9 ppm

    Delay time to 90% (tD90)

    1 µs

    Frequency bandwidth (±1 dB)

    113 kHz

    Insulation test voltage (Vd)

    6 kV RMS / 50 Hz / 1 min

    Clearance (dCl)

    21 mm

    Creepage distance (dCp)

    22 mm

    Operating temp (TA)

    -40°C to +85°C

    Mass (m)

    4.2 kg

    Mounting

    Panel (flat or vertical)

    Secondary connection

    9-pin D-Sub male

    Test winding

    200 turns

    Technology

    Closed-loop Fluxgate

    Standards

    IEC 61010-1 CAT III, PD2



    LEM IN 2000-SB Key Advantages

    The IN 2000-SB employs closed-loop Fluxgate technology (LEM patent), delivering 0.0075% accuracy while providing galvanic isolation with an electrostatic shield. Excellent linearity of 15 ppm over the wide -40°C to +85°C temperature range, very low offset drift of 39 ppm, and low noise level of 9 ppm peak-to-peak ensure measurement stability. The 200-turn test winding enables self-test functionality without primary current. Maximum withstand peak current is 10 kA for 100 ms pulses.



    LEM IN 2000-SB Typical Applications

    Feedback element in high performance gradient amplifiers for MRI
    Feedback element in high-precision, high-stability power supplies
    Calibration units and test benches in laboratories
    Energy measurement and power analyzers
    Medical equipment
    High-accuracy industrial metrology
    Calibration of current sources
    Differential current measurement applications



    Why Choose the LEM IN 2000-SB?

    The IN 2000-SB combines a 2000 A rated current with 0.0075% accuracy and ±10 V voltage output in a robust panel-mount package. The closed-loop Fluxgate design provides exceptional accuracy and low temperature drift, while the 200-turn test winding and D-Sub output offer flexible system integration. The wide -40°C to +85°C operating temperature range ensures reliable performance in demanding environments. Ideal for MRI systems, calibration equipment, precision power supplies, and laboratory applications requiring absolute accuracy and long-term stability.



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Paulo
    Apr 17, 2026
    Fast deliver and always packed professionally
    Carlina
    Feb 10, 2026
    Simon is the best. We've worked with him for a long time. Great company and one you can trust.
    Gemma
    Jul 12, 2025
    Quick and easy deal
    Quintion
    Mar 01, 2025
    Very good cooperation
    Edwiin
    May 07, 2024
    Reliable source
     12
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
