ITC 4000-S , ITC4000-S

HOT OFFER// Authorized Distributor
  • MacroQuest Part#ITC 4000-S
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $7695.00 - $8571.00
    / Pieces
    |
    Pieces(Min. Order)
    1-4 Pieces $8571.00
    5-9 Pieces $7857.00
    >=10 Pieces $7695.00
    Quantity:
    In Stock
    $7695.00
    (0 In Stock)
    Available
    $7695.00
    LT: 8-12 weeks
    (98 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

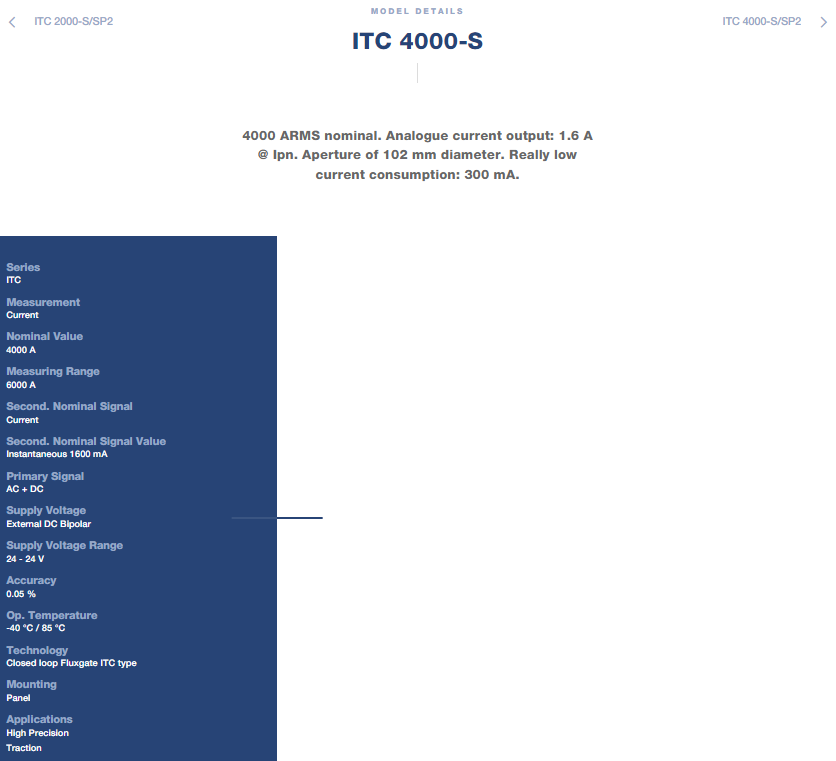

    LEM ITC 4000-S ITC Series Closed Loop Fluxgate Current Transducer

    LEM ITC 4000-S Product Overview

    The ITC 4000-S is a closed-loop Fluxgate current transducer from LEM's ITC Series, designed for the high-precision electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary and secondary circuits . This panel-mount transducer features a 102 mm diameter aperture and is specifically designed for railway traction and demanding industrial applications requiring Class 0.5R accuracy .

    Rated for 4000 A nominal with a measuring range of ±6000 A, it outputs a secondary current of 1600 mA at nominal with an outstanding ±0.05% overall accuracy at +25°C and meets Class 0.5R according to EN 50463 . Linearity error is <0.05% with offset currents of less than ±20 μA . Response time is 0.1 µs and frequency bandwidth is 80 kHz (-3 dB) . Supply voltage range is ±21.6 V to ±26.4 V (typically ±24 V). Mass is 8.6 kg and operating temperature ranges from -40°C to +85°C . Insulation test voltage is 14 kV RMS at 50 Hz for 1 minute, with an impulse withstand voltage of 30 kV (1.2/50 µs) . The case material is recognized according to UL 94-V0.



    LEM ITC 4000-S Key Specifications

    Parameter

    Value

    Rated current (IPN)

    4000 A

    Measuring range (IPM)

    ±6000 A

    Secondary nominal current (ISN)

    1600 mA

    Supply voltage (VC)

    ±21.6 V to ±26.4 V

    Accuracy (X) @ +25°C

    ±0.05 % of IPN

    Class accuracy

    0.5R according to EN 50463

    Linearity error (εL)

    <0.05 %

    Offset current (IO)

    < ±20 μA

    Response time (tr)

    0.1 µs

    Bandwidth (BW)

    80 kHz (-3 dB)

    Insulation test voltage (Vd)

    14 kV RMS / 50 Hz / 1 min

    Impulse withstand voltage (Ubi)

    30 kV (1.2/50 µs)

    Aperture

    102 mm diameter

    Operating temp (TA)

    -40°C to +85°C

    Mass (m)

    8.6 kg

    Mounting

    Panel

    Current consumption

    300 mA @ IPN

    Current overload

    100 kA / 100 ms

    Protection rating

    IP40

    Technology

    Closed-loop Fluxgate ITC type

    Case material

    UL 94-V0

    Standards

    EN 50155:2017, EN 50124-1:2017, EN 50463 series:2017



    LEM ITC 4000-S Key Advantages

    The ITC 4000-S employs closed-loop Fluxgate technology, delivering exceptional ±0.05% accuracy and <0.05% linearity while providing galvanic isolation between primary and secondary circuits . The Fluxgate principle offers very low temperature drift, high immunity to external interference, and no insertion losses .

    The 102 mm aperture enables non-intrusive installation of primary conductors without disconnecting existing cables, and the design is insensitive to primary conductor position within the aperture . The ±6000 A measuring range accommodates significant overload conditions, with an impressive 100 kA / 100 ms current overload capability . The 0.1 µs fast response time and 80 kHz bandwidth capture dynamic current signals with high fidelity. The device features really low current consumption of 300 mA . The test winding enables convenient self-test functionality and transducer status verification without primary current .



    LEM ITC 4000-S Typical Applications

    Energy metering for railway traction and onboard energy measurement
    Propulsion converters for trains and locomotives
    Substations for railway fixed installations and industrial power distribution
    Test and measurement applications requiring high accuracy
    Differential current measurement (0.5% accuracy over 5% to 150% of nominal current)
    Overcurrent protection and fault detection in traction systems
    High precision smart grid applications
    Calibration and test equipment for high-current systems

    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Glinda
    Mar 12, 2026
    Perfect FPGAs.
    Queenie
    Nov 22, 2025
    Purchased many times, reliable quality, price advantage.
    Thorpe
    Jun 30, 2025
    very good company to deal with
    Pallavi
    Jan 12, 2024
    Very reliable customer
    Tate
    Nov 01, 2023
    I am very satisfied and congratulate the supplier.
     123
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
