ITL 4000-S , ITL4000-S

HOT OFFER// Authorized Distributor
  • MacroQuest Part#ITL 4000-S
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $11429.00 - $14286.00
    / Pieces
    |
    Pieces(Min. Order)
    1-4 Pieces $14286.00
    5-9 Pieces $12857.00
    >=10 Pieces $11429.00
    Quantity:
    In Stock
    $11429.00
    (0 In Stock)
    Available
    $11429.00
    LT: 8-12 weeks
    (42 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

    LEM ITL 4000-S ITL Series Closed Loop Fluxgate Current Transducer

    LEM ITL 4000-S Product Overview

    The ITL 4000-S is a closed-loop Fluxgate current transducer from LEM's ITL Series, designed for the non-invasive measurement of DC, AC, and pulsed currents with galvanic isolation between the primary and secondary circuits . This panel-mount transducer features an exceptionally large 268 mm diameter aperture, making it ideal for high-current conductors found in high-voltage DC systems and renewable energy installations .

    Rated for 4000 A nominal with a measuring range of ±12000 A (three times the nominal value), it outputs an instantaneous current signal of 1600 mA at nominal with an outstanding ±0.06% accuracy at +25°C and ±0.08% accuracy over the entire operating temperature range . Linearity error is ±0.01% of IPN . The supply voltage range is ±22.8 V to ±25.2 V (typically ±24 V) . Mass is 40 kg and operating temperature ranges from -40°C to +70°C . Insulation test voltage is 6.4 kV RMS at 50 Hz for 1 minute, with 130 mm clearance and 200 mm creepage distance for reinforced insulation up to 1200 V RMS . The protective case is rated to IP54 .

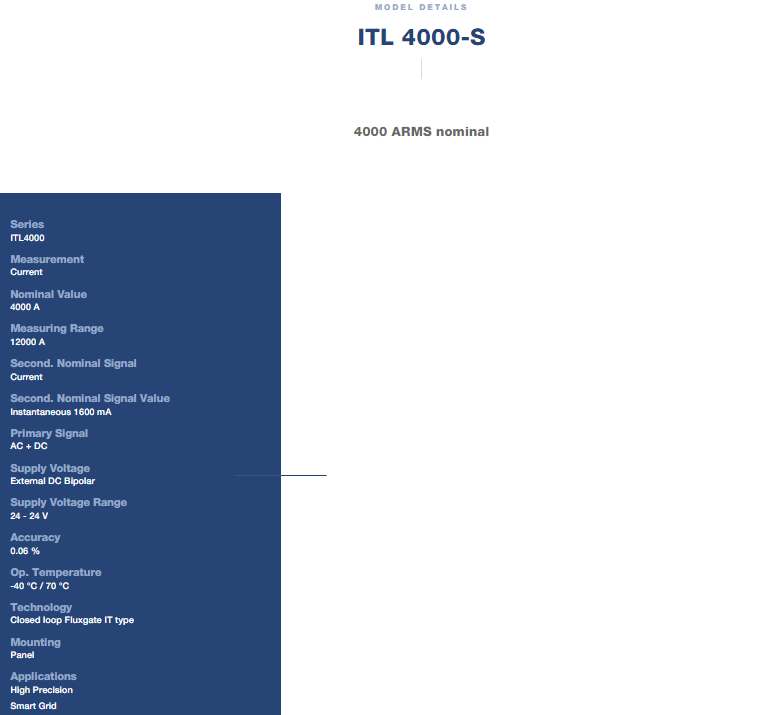

    LEM ITL 4000-S Key Specifications

    Parameter

    Value

    Rated current (IPN)

    4000 A

    Measuring range (IPM)

    ±12000 A

    Secondary nominal current (ISN)

    1600 mA

    Number of secondary turns (NS)

    2500

    Supply voltage (VC)

    ±24 V (±5%)

    Accuracy @ 25°C

    ±0.06 % of IPN

    Accuracy @ -40°C to +70°C

    ±0.08 % of IPN

    Linearity error (εL)

    ±0.01 % of IPN

    Delay time to 90% output (td90)

    10 µs @ 100 A/µs step

    Frequency bandwidth (±1 dB)

    50 kHz

    Insulation test voltage (Vd)

    6.4 kV RMS / 50 Hz / 1 min

    Creepage (dCp) / Clearance (dCl)

    200 / 130 mm

    Aperture diameter

    268 mm

    Operating temp (TA)

    -40°C to +70°C

    Mass (m)

    40 kg

    Mounting

    Panel

    Protection rating

    IP54

    Technology

    Closed-loop Fluxgate



    LEM ITL 4000-S Key Advantages

    The ITL 4000-S employs closed-loop Fluxgate technology, delivering exceptional accuracy of ±0.06% and linearity of ±0.01% while providing galvanic isolation between primary and secondary circuits . The Fluxgate principle offers extremely low offset and gain thermal drift, ensuring stable performance over the wide -40°C to +70°C operating temperature range . The ±12000 A measuring range accommodates significant overload conditions up to three times the nominal value .

    A key capability of this transducer is the ability to monitor ±10 A DC over a 4000 A RMS AC current with an uncertainty of ±1 A over the operating temperature range from -25°C to +50°C, making it particularly useful for applications such as transformer protection and leakage current detection . The large 268 mm aperture enables non-invasive measurement on large-diameter cables without interrupting the primary circuit . High insulation for working voltages up to 1500 V RMS in accordance with EN 50178 ensures safe operation in high-voltage industrial environments . The mechanical design offers simplified access to electronics for easy maintenance .



    LEM ITL 4000-S Typical Applications

    DC current control in transformers
    Offshore wind turbines for DC power transmission
    Leakage current measurement in high primary current applications
    High-voltage DC systems monitoring
    Transformer protection and fault detection
    High precision smart grid applications
    Industrial power distribution and substations
    Calibration and test equipment for high-current systems

    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Clement
    Apr 27, 2026
    Very good company to work with
    Trina
    Feb 17, 2026
    Great vendor, fast shipment excellent parts !
    Sonja
    Nov 12, 2025
    This Company is a really good Company.
    York
    Jun 17, 2025
    We recommend this company to everyone.We hope to continue more more transactions in future.
    Reanna
    Mar 03, 2024
    Very good company, used twice, parts in perfect conditions. We will use again. Very good service.
     12
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
    pop_close
    pop_main
    Stay In The Know
    Enter your email to hear from us about Product list, Latest Products and Customer application examples!
