LA 150-TP/SP1 , LA150-TP/SP1

HOT OFFER// Authorized Distributor
  • MacroQuest Part#LA 150-TP/SP1
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $19.28 - $38.57
    / Pieces
    |
    Pieces(Min. Order)
    1-9 Pieces $38.57
    10-99 Pieces $31.57
    100-499 Pieces $26.28
    500-999 Pieces $21.11
    >=1000 Pieces $19.28
    Quantity:
    In Stock
    $19.28
    (0 In Stock)
    Available
    $19.28
    LT: 4-6 weeks
    (7112 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

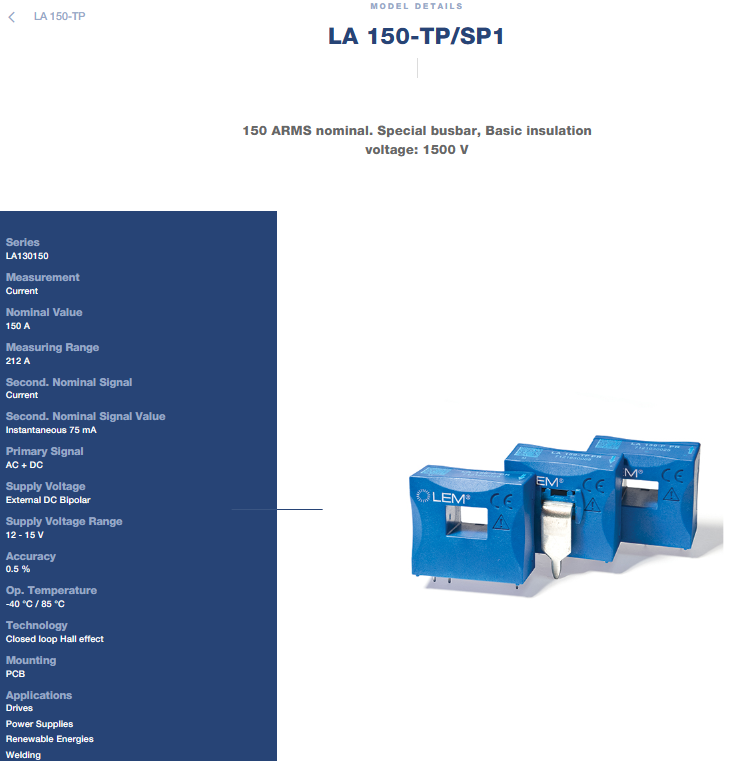

    LEM LA 150-TP/SP1 LA130/150 Series Closed-Loop Current Transducer


    150A Rated Current x ±212A Measuring Range — High-Accuracy PCB-Mount Sensor with Integrated Busbar for Industrial Power Conversion



    LEM LA 150-TP/SP1 Product Overview

    The LA 150-TP/SP1 is a closed-loop Hall effect current transducer from LEM's LA130/150 series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary and secondary circuits . This PCB-mount sensor features an integrated primary conductor and a 13.5 x 10 mm aperture for primary conductor crossing . The SP1 variant offers a special busbar and basic insulation rated to 1500 V .

    Rated for 150 A nominal with a ±212 A measuring range, it outputs a secondary current of 75 mA (instantaneous) with 0.5% accuracy and ±0.1% linearity . Response time is 500 ns and bandwidth is DC to 150 kHz . Supply voltage range is ±12 V to ±15 V . Supply current is 10 mA maximum . Operating temperature is -40°C to +85°C . Mounting is PCB through-hole .



    LEM LA 150-TP/SP1 Key Specifications

    Parameter

    Value

    Rated current (IPN)

    150 A

    Measuring range (IPM)

    0 … ±212 A

    Output signal (ISN)

    75 mA (instantaneous)

    Supply voltage (VC)

    ±12 … ±15 V

    Accuracy (XG)

    ±0.5%

    Linearity (EL)

    ±0.1%

    Response time (tr)

    500 ns

    Bandwidth (BW)

    DC … 150 kHz

    Operating temp (TA)

    -40°C … +85°C

    Mounting

    PCB through-hole



    LEM LA 150-TP/SP1 Key Advantages

    The LA 150-TP/SP1 employs closed-loop Hall effect technology, delivering 0.5% accuracy and ±0.1% linearity while maintaining excellent performance with low temperature drift, optimized response time, wide frequency bandwidth, and high immunity to external interference . The ±212 A range provides ample headroom for measuring nominal currents up to 150 A with transient overcurrent capability, while the 500 ns response time and 150 kHz bandwidth capture fast-changing switching waveforms with high fidelity . The PCB-mount design with integrated primary conductor simplifies board-level integration and saves valuable board space . The special busbar and 1500 V basic insulation of the SP1 variant ensure robust safety isolation for demanding applications .



    LEM LA 150-TP/SP1 Typical Applications

    Drives
    Power Supplies
    Renewable Energies
    Welding
    AC variable speed drives and servo motor drives
    Static converters for DC motor drives
    Uninterruptible Power Supplies (UPS)
    Switched Mode Power Supplies (SMPS)



    Why Choose the LEM LA 150-TP/SP1?

    The LA 150-TP/SP1 combines a 150 A nominal rating with a ±212 A measuring range and 0.5% accuracy in a compact, PCB-mount package with integrated primary conductor and special busbar . Manufactured by LEM, it delivers stable, accurate, and safe current measurement for demanding industrial power conversion and motor control applications. The closed-loop Hall effect design offers excellent accuracy, very good linearity, low thermal drift, and high immunity to external interference, making it a reliable choice for critical systems where measurement integrity is paramount. The SP1 variant's special busbar and 1500 V basic insulation provide a robust solution for industrial installations requiring enhanced isolation .

    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Ismael
    Apr 18, 2026
    Very happy to receive the parts.
    Sharon
    Jan 31, 2026
    very perfect and smoothly. I like the way that we cooperate with each other.
    Vera
    Dec 14, 2025
    Hope we can have more Excellent cooperations in the near future.
    Pope
    Apr 21, 2025
    It was great doing business with Macroquest. We had a smooth transaction and delivery was prompt plus goods were properly packed.
    Franklin
    Dec 25, 2023
    Best quality,Best service! ths a lot!
     123
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
    pop_close
    pop_main
    Stay In The Know
    Enter your email to hear from us about Product list, Latest Products and Customer application examples!
