LA 205-S/SP33 , LA205-S/SP33

HOT OFFER// Authorized Distributor
  • MacroQuest Part#LA 205-S/SP33
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $274.30 - $371.40
    / Pieces
    |
    Pieces(Min. Order)
    1-9 Pieces $371.40
    10-99 Pieces $300.30
    100-499 Pieces $285.70
    500-999 Pieces $278.60
    >=1000 Pieces $274.30
    Quantity:
    In Stock
    $274.30
    (0 In Stock)
    Available
    $274.30
    LT: 4-6 weeks
    (1362 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

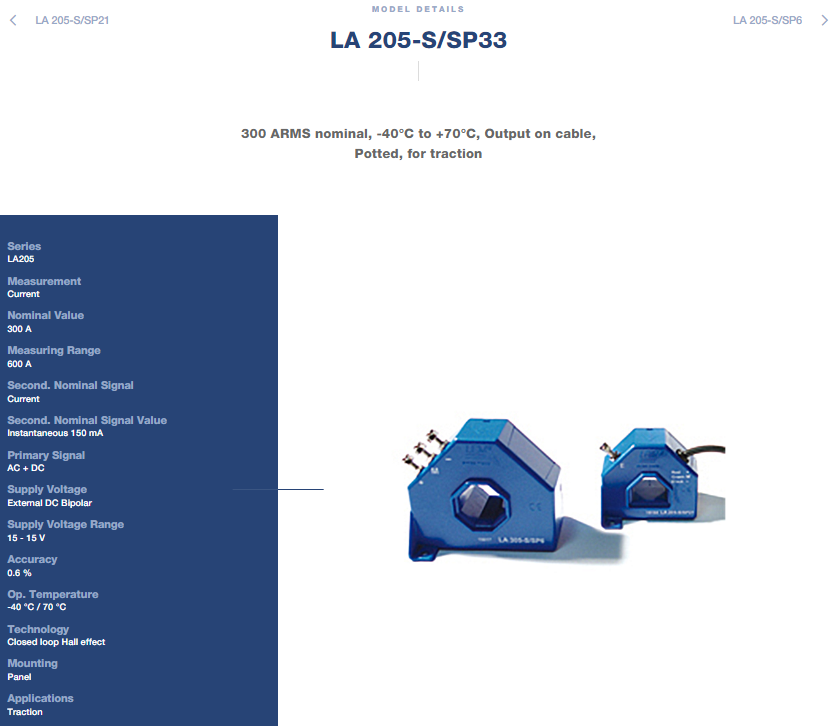

    LEM LA 205-S/SP33 LA205 Series Closed-Loop Current Transducer


    300A Rated Current x ±600A Measuring Range — Railway-Grade Sensor with Shielded Cable and ±15V Supply for Traction Applications



    LEM LA 205-S/SP33 Product Overview

    The LA 205-S/SP33 is a closed-loop Hall effect current transducer from LEM's LA205 series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary and secondary circuits. This panel-mount sensor is a special version specifically engineered for railway and traction applications . It features a 22.7 x 17.4 mm aperture for the primary conductor, a shielded cable GKW 3 x 0.5 mm² output for enhanced noise immunity, and a potted construction for protection against harsh environments . The insulating plastic case is recognized according to UL 94-V0 .

    Rated for 300 A nominal with a ±600 A measuring range, it outputs a secondary current of 150 mA (instantaneous) with 0.6% overall accuracy and <0.15% linearity . The conversion ratio is 1:2000 . Reaction time is <500 ns and response time is <1 µs, with a bandwidth of DC to 100 kHz . Supply voltage is ±15 V (±5%) . Mass is 190 g and operating temperature is -40°C to +70°C . Insulation test voltage is 6 kV with a creepage distance of 32.8 mm and clearance of 30.5 mm, complying with EN 50155 standards for railway equipment .



    LEM LA 205-S/SP33 Key Specifications

    Parameter

    Value

    Rated current (IPN)

    300 A

    Measuring range (IPM)

    0 … ±600 A

    Output signal (ISN)

    150 mA (instantaneous)

    Turns ratio

    1:2000

    Supply voltage (VC)

    ±15 V (±5%)

    Accuracy (XG)

    ±0.6%

    Linearity (EL)

    <0.15%

    Reaction time (tra)

    <500 ns

    Response time (tr)

    <1 µs

    Bandwidth (BW)

    DC … 100 kHz

    Insulation test voltage (Vd)

    6 kV

    Creepage distance (dCp)

    32.8 mm

    Clearance (dCl)

    30.5 mm

    Aperture

    22.7 x 17.4 mm

    Operating temp (TA)

    -40°C … +70°C

    Mass (m)

    190 g

    Mounting

    Panel (2 holes ⌀5.5 mm)



    LEM LA 205-S/SP33 Key Advantages

    The LA 205-S/SP33 employs closed-loop Hall effect technology, delivering 0.6% accuracy and <0.15% linearity while maintaining excellent performance with low temperature drift, optimized response time, wide frequency bandwidth, no insertion losses, high immunity to external interference, and current overload capability . The ±600 A range provides generous headroom for measuring nominal currents up to 300 A with transient overcurrent capability, while the <1 µs response time and 100 kHz bandwidth capture fast-changing switching waveforms with high fidelity. The 22.7 x 17.4 mm aperture accommodates various primary conductors, and the panel-mount design with two ⌀5.5 mm holes enables secure installation. The shielded cable output ensures reliable signal transmission in electrically noisy traction environments, and the potted construction provides protection against harsh railway conditions . The 6 kV insulation with 32.8 mm creepage distance and EN 50155 compliance ensure robust safety isolation for demanding railway applications .



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Zenia
    Aug 24, 2026
    Thank you Elsa for everything that you've done, very perfect and smoothly. I like the way that we cooperate with each other. Especially the shippment arranged very fast. Good Job!
    Martha
    Dec 06, 2025
    Pleasant cooperation
    Shelia
    Nov 29, 2025
    Perfect product, thank you !
    Lashay
    Aug 21, 2024
    Very helpful service
    Zara
    Oct 29, 2023
    Fast speed, good quality!
     12
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
    pop_close
    pop_main
    Stay In The Know
    Enter your email to hear from us about Product list, Latest Products and Customer application examples!
