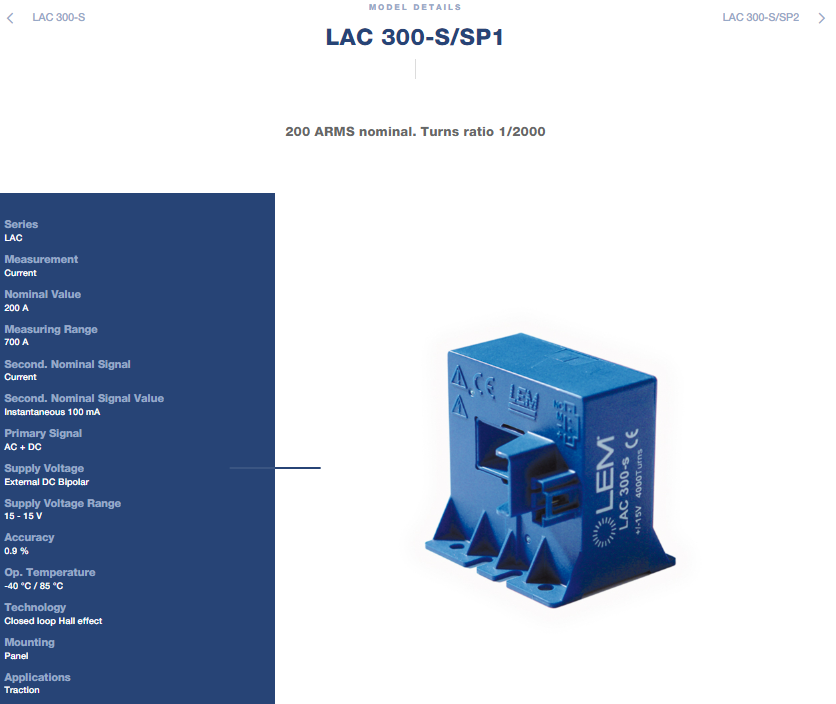

    LEM LAC 300-S/SP1 LAC Series Closed-Loop Current Transducer


    200A Rated Current x ±700A Measuring Range — High-Accuracy Traction Sensor with ±15V Supply



    LEM LAC 300-S/SP1 Product Overview

    The LAC 300-S/SP1 is a closed-loop Hall effect current transducer from LEM's LAC series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary and secondary circuits . This panel-mount sensor is specifically engineered for railway traction applications, featuring a 30 x 13 mm aperture for the primary conductor and a UL 94-V0 recognized insulating plastic case . The SP1 variant is characterized by a 1:2000 turns ratio and a ±15 V bipolar supply voltage .

    Rated for 200 A nominal with a ±700 A measuring range, it outputs a secondary current of 100 mA (instantaneous) with 0.9% accuracy and ±1% linearity . Response time is 1 µs and bandwidth is DC to 50 kHz . Supply voltage is ±15 V (±5%). Mass is approximately 140 g and operating temperature is -40°C to +85°C . Insulation test voltage is 5.5 kV with a creepage distance of 21.2 mm and clearance of 11.2 mm, complying with railway standards .



    LEM LAC 300-S/SP1 Key Specifications

    Parameter

    Value

    Rated current (IPN)

    200 A

    Measuring range (IPM)

    0 … ±700 A

    Output signal (ISN)

    100 mA (instantaneous)

    Turns ratio (NP:NS)

    1 : 2000

    Supply voltage (VC)

    ±15 V (±5%)

    Accuracy (XG)

    ±0.9%

    Linearity (EL)

    ±1%

    Response time (tr)

    1 µs

    Bandwidth (BW)

    DC … 50 kHz

    Insulation test voltage (Vd)

    5.5 kV

    Creepage distance (dCp)

    21.2 mm

    Clearance (dCl)

    11.2 mm

    Aperture

    30 x 13 mm

    Operating temp (TA)

    -40°C … +85°C

    Mounting

    Panel (4 holes ⌀4.5 mm)



    LEM LAC 300-S/SP1 Key Advantages

    The LAC 300-S/SP1 employs closed-loop Hall effect technology, delivering 0.9% accuracy and ±1% linearity while maintaining excellent performance with low temperature drift, optimized response time, and high immunity to external interference . The ±700 A range provides generous headroom for measuring nominal currents up to 200 A with transient overcurrent capability . The 1 µs response time and 50 kHz bandwidth capture fast-changing switching waveforms with high fidelity . The 30 x 13 mm aperture accommodates large primary conductors, and the panel-mount design with four ⌀4.5 mm holes enables secure installation. The 5.5 kV insulation and 21.2 mm creepage distance ensure robust safety isolation for demanding railway environments . The ±15 V supply and 1:2000 turns ratio provide a reliable solution for traction applications .



    LEM LAC 300-S/SP1 Typical Applications

    Single or three phase inverters
    Propulsion and braking choppers
    Propulsion converters
    Auxiliary converters
    Battery chargers
    Traction systems



    Why Choose the LEM LAC 300-S/SP1?

    The LAC 300-S/SP1 combines a 200 A nominal rating with a ±700 A measuring range and 0.9% accuracy in a panel-mount package designed specifically for railway traction applications. Manufactured by LEM, it delivers stable, accurate, and safe current measurement for critical power conversion systems. The closed-loop Hall effect design offers excellent linearity, low thermal drift, and high immunity to external interference, making it a reliable choice for railway environments where measurement integrity and safety are paramount . The SP1 variant's ±15 V supply and 1:2000 turns ratio provide a robust solution for onboard and fixed railway installations, ensuring reliable performance across the -40°C to +85°C operating range .



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Felix
    Apr 27, 2026
    Thanks for the excellent service!
    Quintion
    Feb 06, 2026
    Very satisfied with quality Very fast and good quality
    Paula
    Oct 31, 2025
    Nice company.reliable and professional.
    Kristin
    Aug 11, 2025
    Part was perfect
    Nana
    Sep 30, 2023
    Perfect Partner
     12
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
    pop_close
    pop_main
    Stay In The Know
    Enter your email to hear from us about Product list, Latest Products and Customer application examples!
