LAC 300-S/SP3 , LAC300-S/SP3

HOT OFFER// Authorized Distributor
  • MacroQuest Part#LAC 300-S/SP3
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $45.71 - $85.71
    / Pieces
    |
    Pieces(Min. Order)
    1-9 Pieces $85.71
    10-99 Pieces $52.85
    >=100 Pieces $45.71
    Quantity:
    In Stock
    $45.71
    (0 In Stock)
    Available
    $45.71
    LT: 4-6weeks
    (4454 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

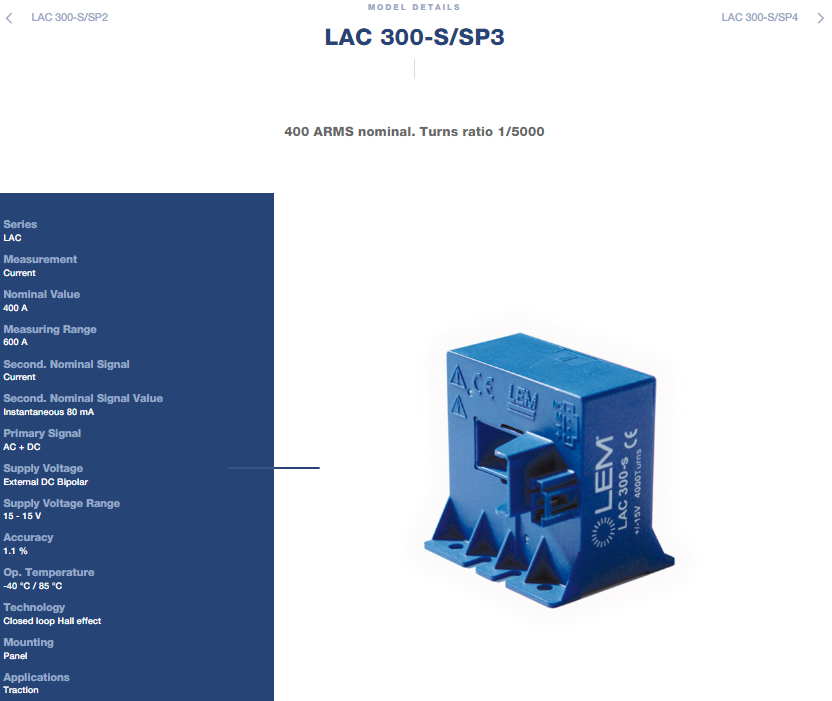

    LEM LAC 300-S/SP3 LAC Series Closed-Loop Current Transducer


    400A Rated Current x ±600A Measuring Range — Traction-Grade Sensor with 1:5000 Turns Ratio for Railway Applications



    LEM LAC 300-S/SP3 Product Overview

    The LAC 300-S/SP3 is a closed-loop Hall effect current transducer from LEM's LAC series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary and secondary circuits . This panel-mount sensor is specifically engineered for railway traction applications, featuring a 30 x 13 mm aperture for primary conductor crossing . The SP3 variant is characterized by a 1:5000 turns ratio and a secondary nominal signal of 80 mA .

    Rated for 400 A nominal with a ±600 A measuring range, it outputs a secondary current of 80 mA (instantaneous) with 1.1% accuracy and <0.1% linearity . Delay time is <1 µs and bandwidth is DC to 50 kHz . Supply voltage is ±15 V (±5%) . Mass is 137 g and operating temperature is -40°C to +85°C . Insulation test voltage is 5.5 kV with a creepage distance of 21.2 mm and clearance of 11.2 mm, complying with railway standard EN 50155 .



    LEM LAC 300-S/SP3 Key Specifications

    Parameter

    Value

    Rated current (IPN)

    400 A

    Measuring range (IPM)

    0 … ±600 A

    Output signal (ISN)

    80 mA (instantaneous)

    Turns ratio (NP:NS)

    1 : 5000

    Supply voltage (VC)

    ±15 V (±5%)

    Accuracy (XG)

    ±1.1%

    Linearity (EL)

    <0.1%

    Delay time (tD 90)

    <1 µs

    Bandwidth (BW)

    DC … 50 kHz

    Insulation test voltage (Vd)

    5.5 kV

    Creepage distance (dCp)

    21.2 mm

    Clearance (dCl)

    11.2 mm

    Aperture

    30 x 13 mm

    Operating temp (TA)

    -40°C … +85°C

    Mass (m)

    137 g

    Mounting

    Panel (4 holes ⌀4.5 mm)



    LEM LAC 300-S/SP3 Key Advantages

    The LAC 300-S/SP3 employs closed-loop Hall effect technology, delivering 1.1% accuracy and <0.1% linearity while maintaining excellent performance with low temperature drift, optimized response time, and high immunity to external interference . The ±600 A range provides generous headroom for measuring nominal currents up to 400 A with transient overcurrent capability (up to 500 A for <500 ms), while the <1 µs delay time and 50 kHz bandwidth capture fast-changing switching waveforms with high fidelity . The 30 x 13 mm aperture accommodates large primary conductors, and the panel-mount design with four ⌀4.5 mm holes enables secure installation. The 5.5 kV insulation and 21.2 mm creepage distance ensure robust safety isolation for demanding railway environments, with compliance to EN 50155, EN 50121-3-2, and UL 508 standards .



    LEM LAC 300-S/SP3 Typical Applications

    Single or three phase inverters
    Propulsion and braking choppers
    Propulsion converters
    Auxiliary converters
    Battery chargers



    Why Choose the LEM LAC 300-S/SP3?

    The LAC 300-S/SP3 combines a 400 A nominal rating with a ±600 A measuring range and 1.1% accuracy in a panel-mount package designed specifically for railway traction applications . Manufactured by LEM, it delivers stable, accurate, and safe current measurement for critical power conversion systems. The closed-loop Hall effect design offers excellent linearity, low thermal drift, and high immunity to external interference, making it a reliable choice for railway environments where measurement integrity and safety are paramount . The SP3 variant's 1:5000 turns ratio and ±15 V supply provide a robust solution for onboard and fixed railway installations, ensuring reliable performance across the -40°C to +85°C operating range .

    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Larry
    Feb 22, 2026
    Good, plus one point
    Omar
    Jan 13, 2026
    Very good quality and very fast shipping.
    Upton
    Jun 22, 2025
    Excellent company in every way
    Christopher
    Jul 24, 2023
    Good vendor and good price.Fast shipment.Thanks.
    Kevin
    May 11, 2023
    awesome!!! the best quality!
     123
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
    pop_close
    pop_main
    Stay In The Know
    Enter your email to hear from us about Product list, Latest Products and Customer application examples!
