LAS 100-TP , LAS100-TP

Second. Nominal Signal[Instantaneous:Voltage 2.5 +/- 0.625 V]
  • MacroQuest Part#LAS 100-TP
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $22.86 - $50.65
    / Pieces
    |
    Pieces(Min. Order)
    1-9 Pieces $50.65
    10-99 Pieces $35.71
    100-299 Pieces $28.57
    300-999 Pieces $25.69
    >=1000 Pieces $22.86
    Quantity:
    In Stock
    $22.86
    (0 In Stock)
    Available
    $22.86
    LT: 4-6 weeks
    (1000 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

    LEM LAS 100-TP LAS Series Current Transducer


    100A Rated Current x ±200A Measuring Range — Eta-Technology Sensor with Unipolar Supply for PCB Mounting



    LEM LAS 100-TP Product Overview

    The LAS 100-TP is a current transducer using Eta-technology from LEM's LAS series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary and secondary circuits . This compact PCB-mount sensor features an integrated primary conductor and a unipolar +5 V supply, combining the advantages of open-loop and closed-loop transducers . The device operates within a temperature range of -40°C to +85°C and offers a voltage output with fixed offset and gain .

    Rated for 100 A nominal with a ±200 A measuring range (extendable to ±300 A at frequencies >1 kHz), it outputs a ratiometric voltage of 2.5 V ± 0.625 V with 1% accuracy and <0.7% linearity . Reaction time is <200 ns and response time is <500 ns, with a bandwidth of DC to 100 kHz . Supply voltage is +5 V (±5%) with typical current consumption of 18 mA . Mass is 20 g and operating temperature is -40°C to +85°C . Insulation test voltage is 5 kV with creepage and clearance distances of 10.7 mm each, providing reinforced isolation up to 500 V according to EN 50178 and IEC 61010-1 standards .

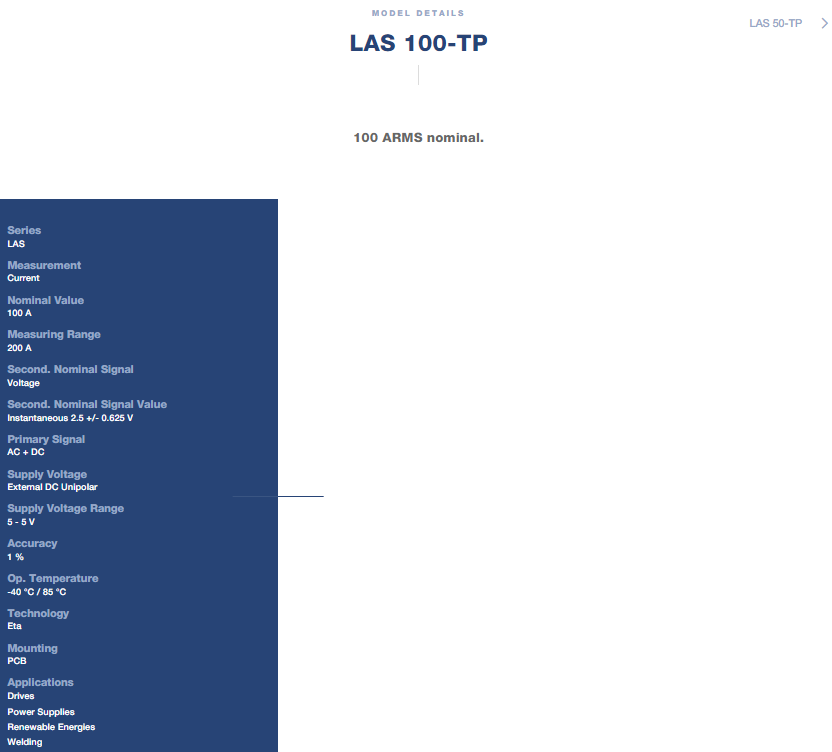

    LEM LAS 100-TP Key Specifications

    Parameter

    Value

    Rated current (IPN)

    100 A

    Measuring range (IPM)

    0 … ±200 A (±300 A @ >1 kHz)

    Output signal (VOUT)

    2.5 V ± 0.625 V (ratiometric)

    Supply voltage (VC)

    4.75 … 5.25 V

    Accuracy (XG)

    ±1%

    Linearity (EL)

    <0.7%

    Response time (tr)

    <500 ns

    Reaction time

    <200 ns

    Bandwidth (BW)

    DC … 100 kHz

    Insulation (Vd)

    5 kV

    Creepage / Clearance

    10.7 mm / 10.7 mm

    Operating temp (TA)

    -40°C … +85°C

    Mass (m)

    20 g

    Mounting

    PCB



    LEM LAS 100-TP Key Advantages

    The LAS 100-TP employs Eta-technology, delivering 1% accuracy and <0.7% linearity while combining the positive properties of open-loop and closed-loop current transducers . The ±200 A range provides ample headroom for measuring nominal currents up to 100 A with transient overcurrent capability (up to 3× IPN) , while the <500 ns response time and 100 kHz bandwidth capture fast-changing switching waveforms with high fidelity . The PCB-mount design with integrated primary conductor simplifies board-level integration, and the unipolar +5 V supply eliminates the need for dual supplies . The reference access pin provides flexible signal conditioning, and the 5 kV insulation with UL 94-V0 rated housing ensures robust safety isolation .



    LEM LAS 100-TP Typical Applications

    AC variable speed and servo motor drives
    Static converters for DC motor drives
    Battery supplied applications
    Uninterruptible Power Supplies (UPS)
    Renewable energy systems
    Combiner boxes and MPPT



    Why Choose the LEM LAS 100-TP?

    The LAS 100-TP combines a 100 A nominal rating with a ±200 A measuring range and 1% accuracy in a compact, PCB-mount package with unipolar +5 V supply . Manufactured by LEM, it delivers stable, accurate, and safe current measurement for industrial power conversion and motor control applications. The Eta-technology design offers excellent accuracy, very good linearity, low thermal drift, and high immunity to external interference, making it a reliable choice for critical systems where measurement integrity is paramount . The device conforms to EN 50178 standards and is covered by LEM's 5-year guarantee, ensuring long-term reliability .



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Simon
    Jan 18, 2026
    Their expertise allows them to provide professional guidance and advice to customers.
    Valeria
    Jan 14, 2026
    Very good business partner
    York
    Nov 17, 2025
    The delivery is very fast, the quality of the goods is also quite good, good, good
    Xenia
    Jun 11, 2025
    Very fine.
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
    pop_close
    pop_main
    Stay In The Know
    Enter your email to hear from us about Product list, Latest Products and Customer application examples!
