LDSR 0.3-NP , LDSR0.3-NP

HOT OFFER// Authorized Distributor
  • MacroQuest Part#LDSR 0.3-NP
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $24.85 - $35.71
    / Pieces
    |
    Pieces(Min. Order)
    1-9 Pieces $35.71
    10-99 Pieces $27.14
    >=100 Pieces $24.85
    Quantity:
    In Stock
    $24.85
    (0 In Stock)
    Available
    $24.85
    8-12 weeks
    (2456 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

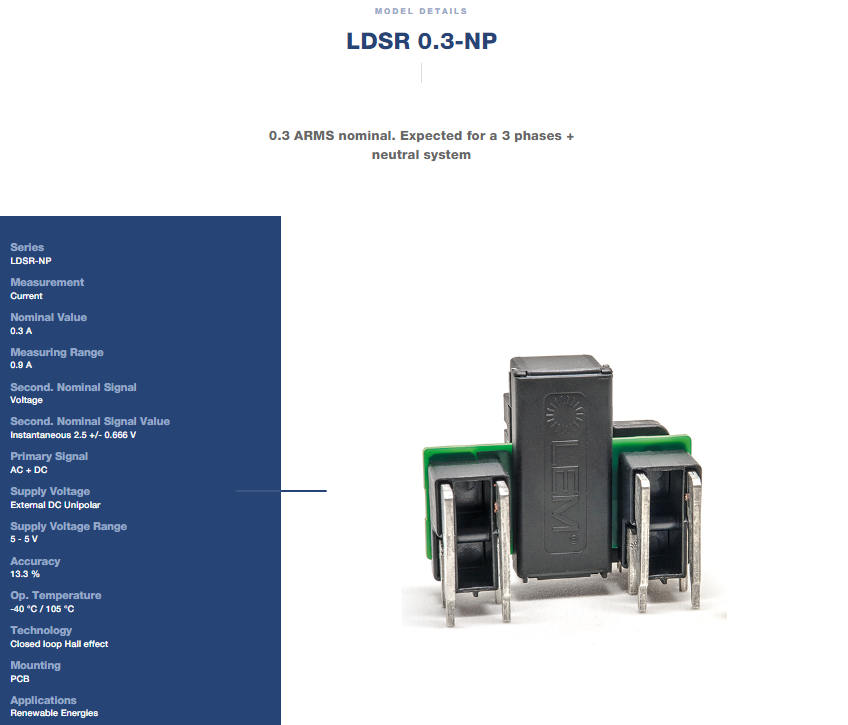

    LEM LDSR 0.3-NP LDSR-NP Series Closed-Loop Leakage Current Sensor


    0.3A Rated Current x ±0.9A Measuring Range — High-Accuracy Leakage Detection for Photovoltaic Inverters



    LEM LDSR 0.3-NP Product Overview

    The LDSR 0.3-NP is a closed-loop Hall effect current transducer from LEM's LDSR-NP series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary and secondary circuits. This PCB-mount sensor is specifically tailored for earth leakage current measurement in transformerless photovoltaic inverters for the residential market, as well as for single-phase and three-phase systems. The device features a voltage output and operates from a single +5 V supply, simplifying system integration.

    Rated for 0.3 A nominal with a ±0.9 A measuring range, it outputs a ratiometric voltage of 2.5 V ± 0.666 V with 2% accuracy at +25°C. Linearity is ±3% and sensitivity is 2.2 V/A. Response time is 300 µs and bandwidth is DC to 2 kHz. Supply voltage is +5 V (4.75 to 5.25 V). Mass is 38 g and operating temperature is -40°C to +105°C. Insulation test voltage is 1.71 kV with a creepage and clearance distance of 7.1 mm for high insulation.



    LEM LDSR 0.3-NP Key Specifications

    Parameter

    Value

    Rated current (IPN)

    0.3 A

    Measuring range (IPM)

    0 … ±0.9 A

    Output signal (VOUT)

    2.5 V ± 0.666 V (ratiometric)

    Sensitivity

    2.2 V/A

    Supply voltage (VC)

    4.75 … 5.25 V

    Accuracy (XG)

    2% (+25°C)

    Linearity (EL)

    ±3%

    Response time (tr)

    300 µs

    Bandwidth (BW)

    DC … 2 kHz

    Insulation test voltage (Vd)

    1.71 kV

    Creepage and clearance

    7.1 mm

    Operating temp (TA)

    -40°C … +105°C

    Mass (m)

    38 g

    Mounting

    PCB through-hole



    LEM LDSR 0.3-NP Key Advantages

    The LDSR 0.3-NP employs closed-loop Hall effect technology with a proprietary ASIC, delivering reliable and precise current measurements with 2% accuracy while maintaining a low offset drift. The ±0.9 A range provides ample headroom for detecting leakage currents up to 0.3 A nominal, while the 300 µs response time and 2 kHz bandwidth capture DC and AC residual currents effectively. The PCB-mount design with through-hole terminals enables direct integration onto circuit boards. The 7.1 mm creepage and clearance distances ensure high insulation for safety in high-voltage systems. The reference access pin provides flexible signal adaptation, and the device includes an existing test winding and demagnetization function for ease of use.



    LEM LDSR 0.3-NP Typical Applications

    Renewable energy systems
    Leakage current measurement in transformerless PV inverters
    Failure detection in power sources
    Symmetrical fault detection
    Current leakage detection in stacked DC sources
    Single or three phase residual current monitoring



    Why Choose the LEM LDSR 0.3-NP?

    The LDSR 0.3-NP combines a 0.3 A nominal rating with a ±0.9 A measuring range and 2% accuracy in a compact, PCB-mount package designed specifically for renewable energy applications. Manufactured by LEM, it delivers stable, accurate, and safe current measurement for critical leakage detection systems. The closed-loop Hall effect design offers excellent linearity, low thermal drift, and high immunity to external interference, making it a reliable choice for photovoltaic inverters and power source monitoring where measurement integrity and safety are paramount. The device is covered by LEM's 5-year guarantee and conforms to industry standards for insulation and safety.



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Viola
    Apr 25, 2026
    Good and reliable, several deals over many years without any problem.
    Olee
    Nov 24, 2025
    Honest and Excellent Company
    Hanson
    May 29, 2025
    Professional
    Octavio
    Mar 16, 2024
    Very reliable company
    Burgess
    Feb 18, 2024
    Thanks for delivery.
     123
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
    pop_close
    pop_main
    Stay In The Know
    Enter your email to hear from us about Product list, Latest Products and Customer application examples!
