LESR 25-NP/SP1 , LESR25-NP/SP1

  • MacroQuest Part#LESR 25-NP/SP1
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $11.34 - $16.79
    / Pieces
    |
    Pieces(Min. Order)
    1-39 Pieces $16.79
    40-199 Pieces $14.07
    >=200 Pieces $11.34
    Contact us for quotation:
    quantity
    $0.00
    (0 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

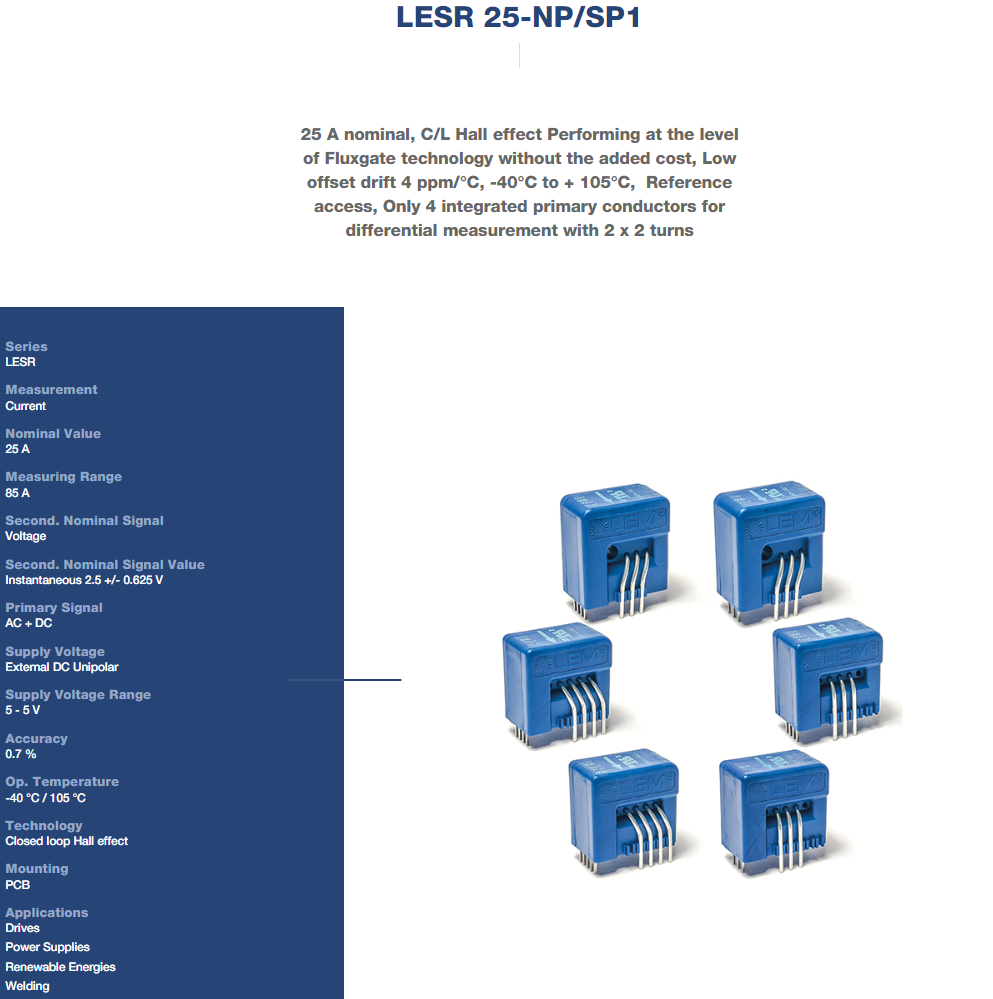

    LEM LESR 25-NP/SP1 Closed-Loop Hall Effect Current Transducer



    LEM LESR 25-NP/SP1 Product Overview

    The LESR 25-NP/SP1 is a closedloop Hall effect current transducer from LEM's LESR series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary and secondary circuits . It delivers performance at the level of Fluxgate technology without the added cost, featuring very low offset drift of 4 ppm/°C and high accuracy across a wide temperature range .

    The SP1 variant is rated for 25 A nominal current with a measuring range of ±85 A, outputting a voltage signal (2.5V ± 0.625V) with 0.7% accuracy and ±0.1% linearity . Sensitivity is 25 mV/A . The sensor operates on a single +5V supply (4.75V ~ 5.25V), with a 400 ns response time and 300 kHz frequency bandwidth over a temperature range of -40°C to +105°C .

    The sensor features integrated primary conductors with 2 × 2 turns for differential measurement, enabling PCB mounting with a compact footprint . It offers reference voltage access on an additional pin with two modes (Ref IN and Ref OUT), enabling flexible signal conditioning and external reference management . The series is 100% footprint compatible with the CASR xx-NP series, providing an easy upgrade path for existing designs . It is housed in a UL 94 V-0 flameretardant case and compliant with RoHS . Mass is approximately 10 g .



    LEM LESR 25-NP/SP1 Key Technical Specifications

    Parameter

    Specification

    Nominal Current (IPN)

    25 A

    Measuring Range (IPM)

    ±85 A

    Output Signal

    Voltage (2.5V ± 0.625V)

    Sensitivity

    25 mV/A

    Accuracy

    0.7 %

    Linearity

    ±0.1 %

    Supply Voltage

    +5V DC (4.75V ~ 5.25V)

    Response Time

    400 ns

    Frequency Bandwidth

    DC ~ 300 kHz

    Operating Temperature

    -40°C to +105°C

    Mounting Type

    PCB Mount (Through Hole)

    Primary Turns Configuration

    2 × 2 turns (differential measurement)

    Insulation Test Voltage (Ud)

    4.3 kV RMS / 50Hz / 1 minute

    Creepage / Clearance Distance

    7.55 mm

    Mass

    10 g



    LEM LESR 25-NP/SP1 Core Advantages

    The LESR 25NP/SP1 employs closedloop Hall technology with active compensation, delivering fluxgatelevel performance at Halleffect cost with very low offset drift of 4 ppm/°C ensuring stable measurements across the wide -40°C to +105°C operating temperature range. The integrated primary conductors with 2 × 2 turns for differential measurement provide flexible PCB mounting with a compact footprint, and the ±85 A measuring range with 3.4× overload capability gives ample safety margin for system transients and fault conditions. The 400 ns fast response time and 300 kHz bandwidth capture fast current transients and highfrequency components essential for protection and control applications. The single +5V supply and ratiometric voltage output simplify power system design, while the reference pin with Ref IN/Ref OUT modes enables flexible signal conditioning and external reference management. The sensor is 100% footprint compatible with the CASR xxNP series, providing an easy upgrade path for existing designs without PCB redesign.



    LEM LESR 25-NP/SP1 Target Applications

    The LESR series is designed for industrial applications and fulfills a wide range of functions across different applications :

    AC variable speed and servo motor drives
    Static converters for DC motor drives
    Battery supplied applications
    Uninterruptible Power Supplies (UPS)
    Switched Mode Power Supplies (SMPS)
    Power supplies for welding applications
    Solar inverters
    Combiner box and MPPT
