LESR 6-NP/SP1 , LESR6-NP/SP1

Second. Nominal Signal[Instantaneous:Voltage 2.5 +/- 0.625 V]
  • MacroQuest Part#LESR 6-NP/SP1
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $11.34 - $16.79
    / Pieces
    |
    Pieces(Min. Order)
    1-39 Pieces $16.79
    40-199 Pieces $14.07
    >=200 Pieces $11.34
    Contact us for quotation:
    quantity
    $0.00
    (0 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

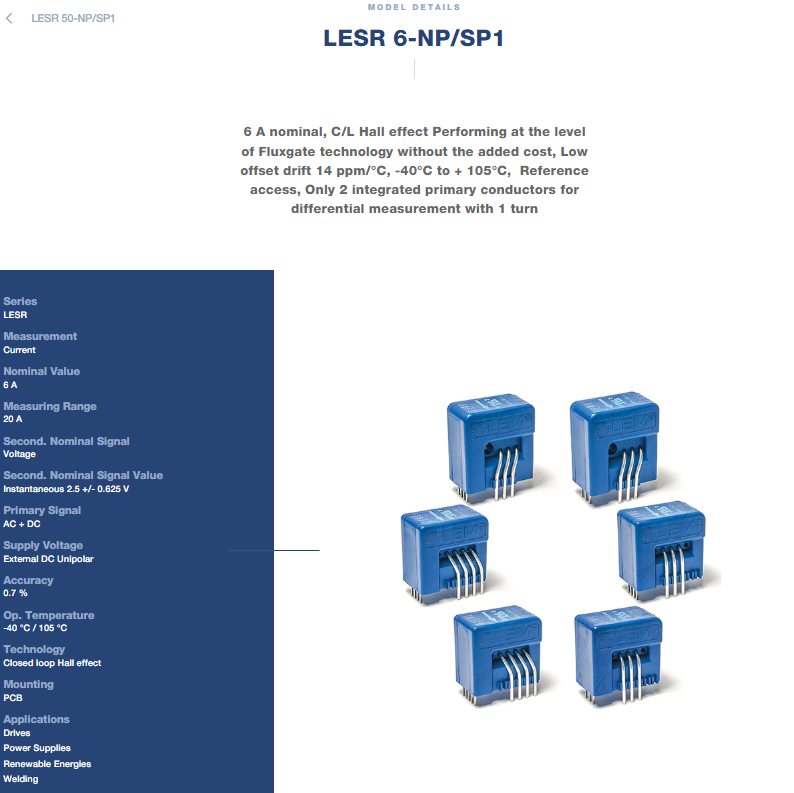

    LEM LESR 6-NP/SP1 LESR Series Closed-Loop Current Transducer


    6A Rated Current x ±20A Measuring Range — Fluxgate-Level Performance with Voltage Output for PCB Mounting



    LEM LESR 6-NP/SP1 Product Overview

    The LESR 6-NP/SP1 is a closed-loop Hall effect current transducer from LEM's LESR series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary and secondary circuits . This PCB-mount sensor offers a unipolar +5 V supply and a voltage output, simplifying integration into modern electronic systems . The device achieves fluxgate-level performance without the added cost, utilizing a custom ASIC with advanced offset cancellation . The SP1 variant features two integrated primary conductors for differential measurement with 1 turn and is 100% footprint compatible with the previous CASR series .

    Rated for 6 A nominal with a ±20 A measuring range, it outputs a ratiometric voltage of 2.5 V ± 0.625 V (instantaneous) with 0.7% accuracy at +25°C and ±0.1% linearity . Sensitivity is 104.2 mV/A . Response time is 0.4 µs and bandwidth is DC to 300 kHz . Supply voltage is +5 V (4.75 to 5.25 V) . Operating temperature is -40°C to +105°C . Insulation test voltage is 4.3 kV with a creepage and clearance distance of 7.55 mm . The device exhibits a very low offset drift of 14 ppm/°C .



    LEM LESR 6-NP/SP1 Key Specifications

    Parameter

    Value

    Rated current (IPN)

    6 A

    Measuring range (IPM)

    0 … ±20 A

    Output signal (VOUT)

    2.5 V ± 0.625 V (ratiometric)

    Sensitivity

    104.2 mV/A

    Supply voltage (VC)

    4.75 … 5.25 V

    Accuracy (XG)

    ±0.7%

    Linearity (EL)

    ±0.1%

    Response time (tr)

    0.4 µs

    Bandwidth (BW)

    DC … 300 kHz

    Insulation (Vd)

    4.3 kV

    Creepage and clearance

    7.55 mm

    Operating temp (TA)

    -40°C … +105°C

    Mounting

    PCB through-hole



    LEM LESR 6-NP/SP1 Key Advantages
