    LEM LF 2010-S/SPA0 LF Series Closed-Loop Current Transducer


    2000A Rated Current x ±3000A Measuring Range — High-Accuracy Sensor with MOLEX Connector for Industrial Applications

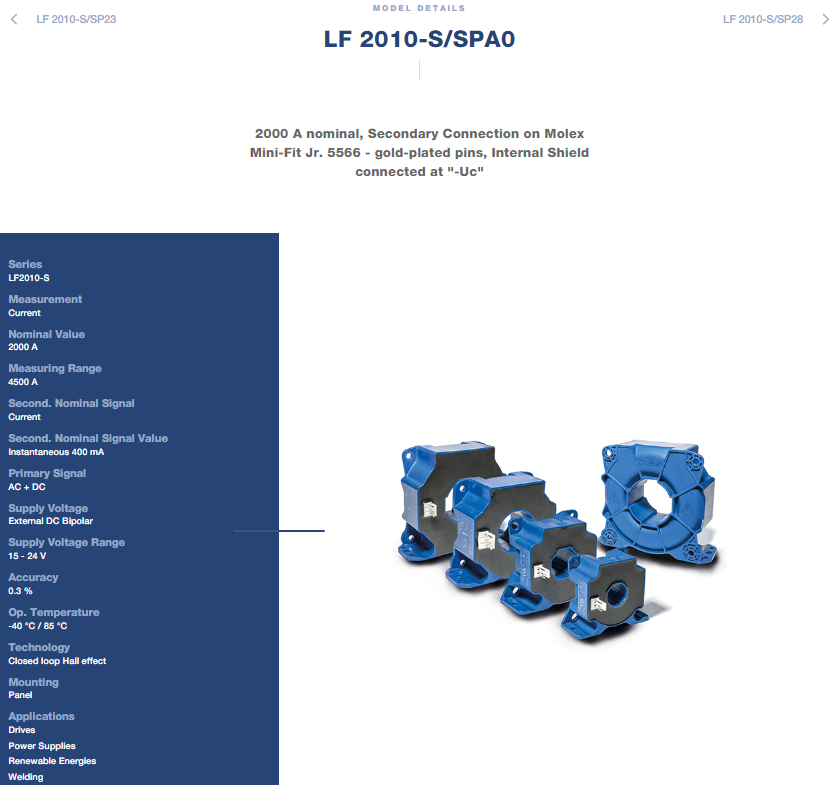

    LEM LF 2010-S/SPA0 Product Overview

    The LF 2010-S/SPA0 is a closed-loop Hall effect current transducer from LEM's LF series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary and secondary circuits . This panel-mount sensor features a 60 x 20 mm rectangular aperture (or 57 mm diameter) for the primary conductor crossing . The SPA0 variant provides connection to the secondary circuit via a Molex Mini-Fit Jr. 5566 connector with gold-plated pins, and includes an internal shield connected at “-Uc” .

    Rated for 2000 A nominal with a ±3000 A measuring range, it outputs a secondary current of 400 mA (instantaneous) with 0.3% accuracy and ±0.1% linearity . Sensitivity is 0.2 mA/A . Response time is 500 ns and bandwidth is DC to 150 kHz . Supply voltage range is ±14.25 V to ±25.2 V . Maximum supply current is 48 mA . Mass is 1500 g and operating temperature is -40°C to +85°C . Insulation test voltage is 6 kV with impulse withstand voltage of 23.2 kV, creepage and clearance as per dimensions drawing . The case material is rated V0 according to UL 94 .



    LEM LF 2010-S/SPA0 Key Specifications

    Parameter

    Value

    Rated current (IPN)

    2000 A

    Measuring range (IPM)

    0 … ±3000 A

    Output signal (ISN)

    400 mA (instantaneous)

    Sensitivity

    0.2 mA/A

    Supply voltage (VC)

    ±14.25 … ±25.2 V

    Accuracy (XG)

    ±0.3%

    Linearity (EL)

    ±0.1%

    Response time (tr)

    500 ns

    Bandwidth (BW)

    DC … 150 kHz

    Insulation test voltage (Vd)

    6 kV

    Impulse withstand voltage (ÛW)

    23.2 kV

    Aperture

    60 x 20 mm / 57 mm dia.

    Operating temp (TA)

    -40°C … +85°C

    Mass (m)

    1500 g

    Mounting

    Panel



    LEM LF 2010-S/SPA0 Key Advantages

    The LF 2010-S/SPA0 employs closed-loop Hall effect technology with a proprietary ASIC, delivering 0.3% accuracy and ±0.1% linearity while maintaining an exceptional offset drift of only 0.05% of Ipn over the full temperature range . The ±3000 A range provides generous headroom for measuring nominal currents up to 2000 A with transient overcurrent capability, while the 500 ns response time and 150 kHz bandwidth capture fast-changing switching waveforms with high fidelity . The 60 x 20 mm aperture accommodates large primary conductors, and the panel-mount design enables secure installation . The Molex Mini-Fit Jr. 5566 connector with gold-plated pins ensures reliable secondary circuit connections, while the internal shield provides enhanced noise immunity . The 6 kV insulation and 23.2 kV impulse withstand voltage guarantee robust safety isolation for demanding industrial applications .

    Why Choose the LEM LF 2010-S/SPA0?

    The LF 2010-S/SPA0 combines a 2000 A nominal rating with a ±3000 A measuring range and 0.3% accuracy in a panel-mount package featuring a convenient Molex Mini-Fit Jr. connector with gold-plated pins and internal shield . Manufactured by LEM, it delivers stable, accurate, and safe current measurement for demanding industrial power conversion, renewable energy, and motor control applications. The closed-loop Hall effect design offers fluxgate-level accuracy, excellent linearity, very low offset drift, and high immunity to external interference, making it a reliable choice for critical systems where measurement integrity is paramount . The SPA0 variant's connectorized interface with built-in shielding simplifies integration and ensures robust performance in electrically noisy industrial environments . The device complies with IEC 61010-1, IEC 61800-5-1, IEC 62109-1, and UL 508 standards .
