LF 205-P , LF205-P

HOT OFFER// Authorized Distributor
  • MacroQuest Part#LF 205-P
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $54.36 - $71.42
    / Pieces
    |
    Pieces(Min. Order)
    1-9 Pieces $71.42
    10-99 Pieces $57.14
    >=100 Pieces $54.36
    Quantity:
    In Stock
    $54.36
    DC: within 2 years
    (120 In Stock)
    Available
    $54.36
    LT: 8-12 weeks
    (3560 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

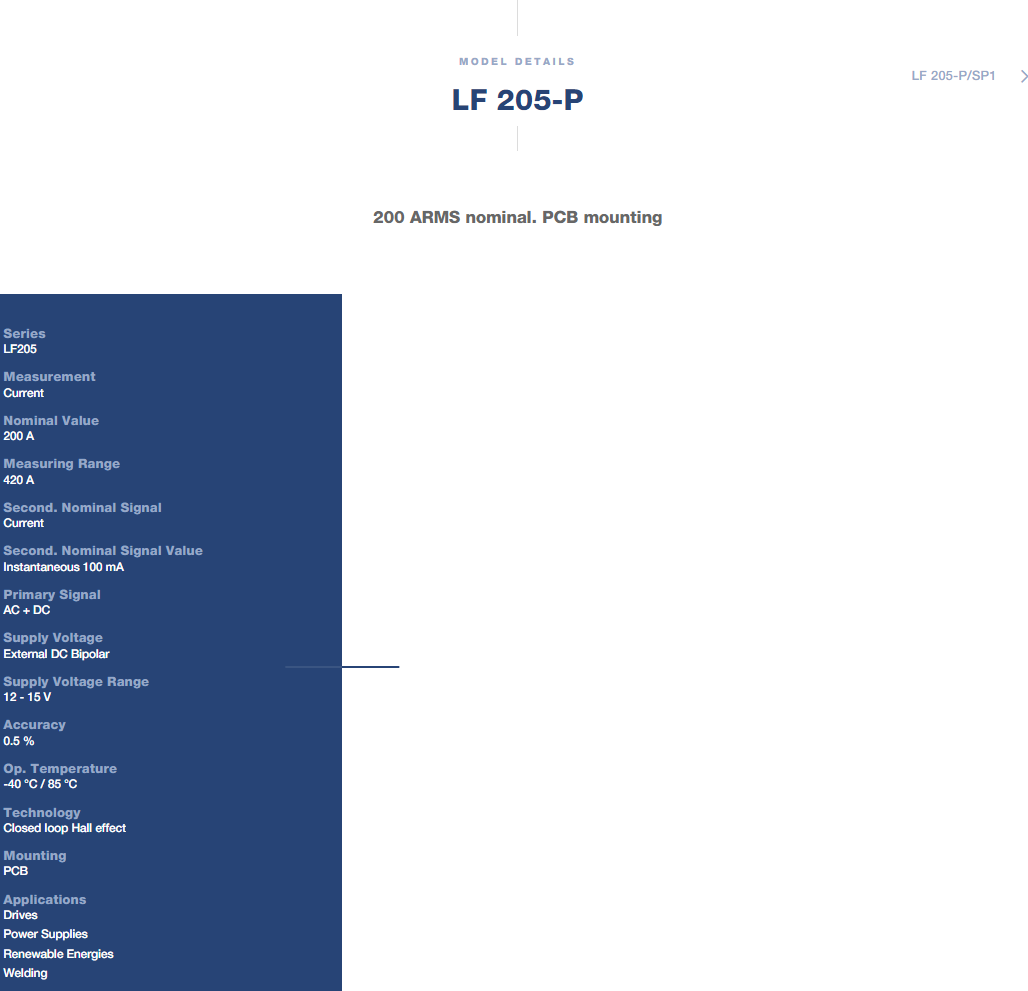

    LEM LF 205-P Closed-Loop Hall Effect Current Transducer



    LEM LF 205-P Product Overview

    The LF 205-P is a closed-loop Hall effect current transducer from LEM's LF series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary circuit (high power) and the secondary circuit (electronic circuit). The "P" suffix indicates a PCB mount version with through-hole mounting, making it suitable for direct integration onto printed circuit boards. The LF series is known for high accuracy, fast response, and robust design for demanding industrial environments.

    The sensor features a 17 × 11 mm aperture for the primary conductor crossing and is designed for PCB mount with a compact form factor. It provides an 100 mA instantaneous current output with a 1:5000 turns ratio. Accuracy is ±0.4%, with linearity ±0.1% and a response time of <1 µs.

    The LF 205-P operates on a ±15V to ±24V bipolar supply, with a DC~100 kHz frequency bandwidth. It features a 3 kV RMS insulation test voltage for high-voltage safety. The insulated plastic case is recognized according to UL 94-V0 and the sensor is designed for drives, power supplies, renewable energies, and welding applications.

    Based on the LF series architecture, the LF 205-P is part of a family that offers ±0.4% accuracy, <0.1% linearity, and a wide temperature range of -40°C to +85°C, making it suitable for high-precision current measurement in demanding industrial environments.



    LEM LF 205-P Key Technical Specifications

    Parameter

    Specification

    Nominal Current (IPN)

    500 A RMS

    Measuring Range (IPM)

    ±1500 A

    Output Signal (ISN)

    100 mA instantaneous current

    Turns Ratio (KN)

    1 : 5000

    Technology

    Closed-loop Hall Effect

    Accuracy (XG)

    ±0.4 %

    Linearity (EL)

    ±0.1 %

    Supply Voltage (VC)

    ±15V to ±24V DC bipolar

    Frequency Bandwidth

    DC ~ 100 kHz

    Response Time (tr)

    < 1 µs

    Insulation Test Voltage (Vd)

    3 kV RMS / 50Hz / 1 minute

    Aperture

    17 × 11 mm

    Operating Temperature (TA)

    -40°C to +85°C

    Mounting Type

    PCB Mount (through-hole)

    Polarization

    Bidirectional



    LEM LF 205-P Core Advantages

    The LF 205P employs closedloop Hall technology with active compensation, delivering ±0.4% accuracy and ±0.1% linearity across the full measuring range. This architecture fundamentally eliminates core saturation errors that degrade performance in openloop sensors. The sensor is fully bipolar and galvanically isolated through its reinforced plastic case recognized according to UL 94V0.

    The ±1500 A measuring range provides 3× overload capability, giving ample safety margin for traction system transients and fault conditions. The <1 µs response time and 100 kHz bandwidth capture fast IGBT switching transients and highfrequency current components essential for protection and control applications. The 17 × 11 mm aperture accommodates busbars and cables, and the PCB mount design enables easy integration onto circuit boards.

    The 3 kV RMS insulation test voltage ensures safety in highvoltage applications. The sensor features low temperature drift, wide frequency bandwidth, no insertion losses, high immunity to external interference, and current overload capability. The compact PCB mount design with throughhole mounting enables easy integration.



    LEM LF 205-P Target Applications

    The LF series is designed for highprecision measurement of DC, AC, and pulsed currents in demanding industrial and railway applications. Typical applications include:

    AC variable speed drives and servo motor drives
    Static converters for DC motor drives
    Battery supplied systems
    Uninterruptible Power Supplies (UPS)
    Switched Mode Power Supplies (SMPS)
    Power supplies for welding applications
    Windmill inverters
    Test and measurement equipment
    Renewable energy systems
    Solar inverters



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Myra
    Feb 11, 2026
    Excellent company!! Quick shimpent on an availibility of a very difficult part.
    Vien
    Jan 05, 2026
    Good quality and good service.
    Donald
    Dec 27, 2025
    Good and reliable company ,Elsa is honest
    Lisa
    Sep 15, 2025
    Big order went smoothly!
    Quentin
    Apr 03, 2025
    We have done so many transactions smoothely since last 3 years.
     1234
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
