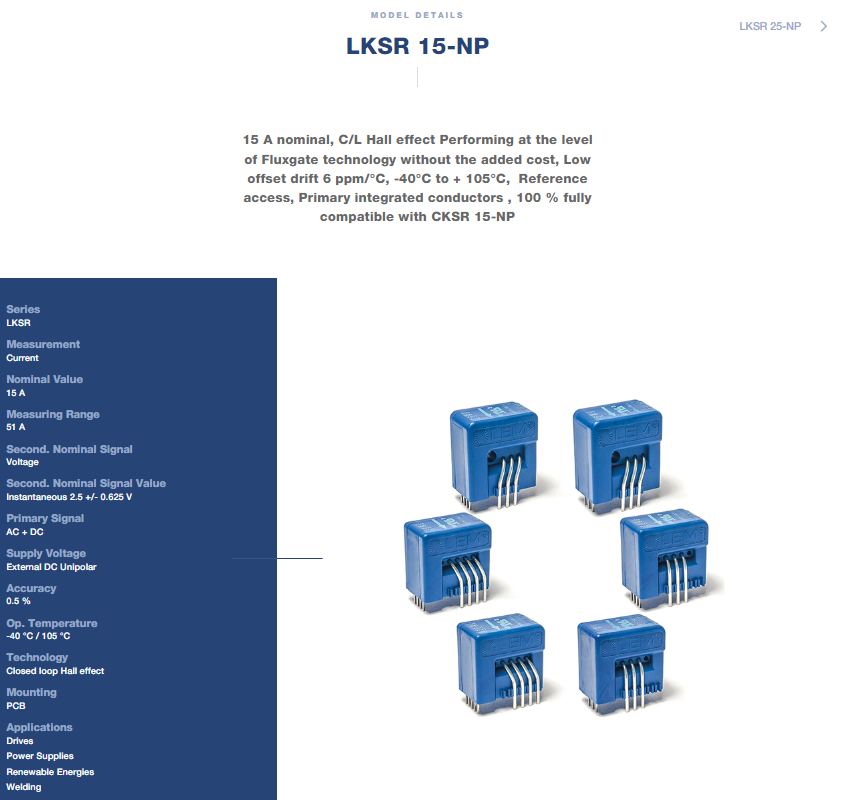

    LEM LKSR 15-NP LKSR Series Closed-Loop Current Transducer


    15A Rated Current x ±51A Measuring Range — High-Accuracy Sensor with Voltage Output for Industrial Applications



    LEM LKSR 15-NP Product Overview

    The LKSR 15-NP is a closed-loop Hall effect current transducer from LEM's LKSR series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary and secondary circuits. This PCB-mount sensor features a compact design with voltage output and a unipolar +5 V supply voltage, simplifying integration into modern electronic systems. The multi-range design allows flexible primary connection configurations, and the reference pin provides versatile signal adaptation options.

    Rated for 15 A nominal with a ±51 A measuring range, it outputs a ratiometric voltage of 2.5 V ± 0.625 V (instantaneous) with 0.45% accuracy and ±0.1% linearity. Sensitivity is 41.67 mV/A. Response time is 0.4 µs and bandwidth is DC to 300 kHz. Supply voltage is +5 V (4.75 to 5.25 V), with a maximum supply current of 27.5 mA. Operating temperature is -40°C to +105°C. The sensor provides reinforced insulation suitable for demanding industrial environments.



    LEM LKSR 15-NP Key Specifications

    Parameter

    Value

    Rated current (IPN)

    15 A

    Measuring range (IPM)

    0 … ±51 A

    Output signal (VOUT)

    2.5 V ± 0.625 V (ratiometric)

    Sensitivity

    41.67 mV/A

    Supply voltage (VC)

    4.75 … 5.25 V

    Accuracy (XG)

    ±0.45%

    Linearity (EL)

    ±0.1%

    Response time (tr)

    0.4 µs

    Bandwidth (BW)

    DC … 300 kHz

    Operating temp (TA)

    -40°C … +105°C

    Mounting

    PCB (through-hole)



    LEM LKSR 15-NP Key Advantages

    The LKSR 15-NP employs closed-loop Hall effect technology, delivering 0.45% accuracy and ±0.1% linearity while maintaining very low offset drift and excellent dv/dt immunity. The ±51 A range provides generous headroom for measuring nominal currents up to 15 A with transient overcurrent capability, while the 0.4 µs response time and 300 kHz bandwidth capture fast-changing switching and pulse waveforms with high fidelity. The PCB-mount design with through-hole terminals enables direct integration onto circuit boards, and the multi-range primary connection allows flexible scaling for different current levels. The unipolar +5 V supply simplifies power design, and the reference pin offers both input and output modes for enhanced system flexibility.



    LEM LKSR 15-NP Typical Applications

    AC variable speed drives and servo motor drives
    Static converters for DC motor drives
    Battery supplied applications
    Uninterruptible Power Supplies (UPS)
    Switched Mode Power Supplies (SMPS)
    Solar inverters
    Power supplies for welding applications



    Why Choose the LEM LKSR 15-NP?

    The LKSR 15-NP combines a 15 A nominal rating with a ±51 A measuring range and 0.45% accuracy in a compact, PCB-mount package. Manufactured by LEM, it delivers stable, accurate, and safe current measurement for industrial power conversion and motor control applications. The closed-loop Hall effect design offers excellent linearity, low thermal drift, and high immunity to external interference, making it a reliable choice for critical systems where measurement integrity is paramount. The LKSR series is 100% footprint compatible with the previous CKSR series, ensuring seamless integration into existing designs, while the unipolar supply voltage and voltage output simplify system architecture.



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Emogene
    Apr 03, 2026
    Great customer service, fast shipping
    Cheree
    Mar 08, 2026
    Impeccable service!
    Whitehead
    Dec 02, 2025
    Excellent performance, beautiful packaging and good protection of the parts
    Ronda
    Oct 22, 2024
    Great supplier. We have done several orders and all come in prisitine condition as stated.
    Bertha
    Aug 18, 2023
    EASY TO WORK WITH
     12
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
    pop_close
    pop_main
    Stay In The Know
    Enter your email to hear from us about Product list, Latest Products and Customer application examples!
