LPSR 15-NP , LPSR15-NP

HOT OFFER// Authorized Distributor
  • MacroQuest Part#LPSR 15-NP
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $10.11 - $18.57
    / Pieces
    |
    Pieces(Min. Order)
    1-14 Pieces $18.57
    15-74 Pieces $13.26
    75-149 Pieces $12.53
    150-749 Pieces $11.42
    >=750 Pieces $10.11
    Quantity:
    In Stock
    $10.11
    (0 In Stock)
    Available
    $10.11
    LT: 10-16weeks
    (2000 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

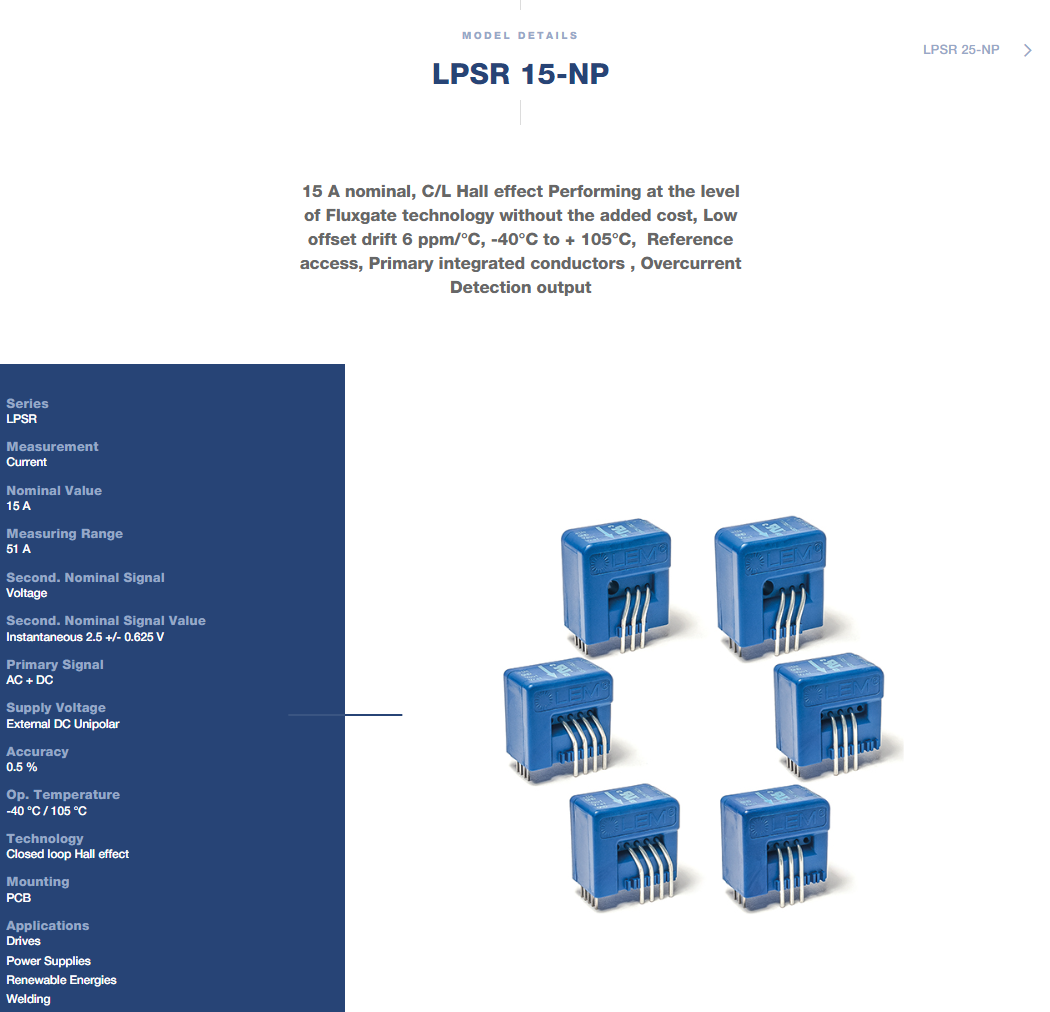

    LEM LPSR 15-NP Closed-Loop Hall Effect Current Transducer



    LEM LPSR 15-NP Product Overview

    The LPSR 15-NP is a closed-loop Hall effect current transducer from LEM's LPSR series, designed for electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary and secondary circuits. It delivers performance at the level of fluxgate technology without the added cost, featuring very low offset drift (6 ppm/°C) and high accuracy across a wide temperature range, making it suitable for industrial drives, power supplies, renewable energy, and welding applications.

    The sensor supports multiple primary turns (1 to 5 turns) via PCB layout, allowing flexible range adaptation without changing the sensor. This model is rated for 15 A nominal current with a measuring range of ±51 A, outputting a voltage signal (2.5V ± 0.625V) with 0.45% accuracy.

    The LPSR series includes reference pin access, primary integrated conductors, and an overcurrent detection output. It is housed in a UL 94-V0 flame-retardant case and operates on a single +5V supply over a temperature range of -40°C to +105°C. It offers direct replacement compatibility with the LTSR series.



    LEM LPSR 15-NP Key Technical Specifications

    Parameter

    Specification

    Nominal Current (IPN)

    15 A

    Measuring Range (IPM)

    ±51 A

    Primary Turns Configuration

    1 to 5 turns via PCB layout

    Output Signal

    Voltage (2.5V ± 0.625V)

    Sensitivity

    41.67 mV/A

    Accuracy

    0.45 %

    Linearity

    ±0.1 %

    Supply Voltage

    +5V DC (4.75V ~ 5.25V)

    Technology

    Closed-loop Hall Effect

    Response Time

    400 ns

    Frequency Bandwidth

    DC ~ 300 kHz

    Operating Temperature

    -40°C to +105°C

    Mounting Type

    PCB Mount (through-hole)

    Package / Case

    Module

    Polarization

    Bidirectional



    LEM LPSR 15-NP Core Advantages

    The LPSR 15-NP delivers closed-loop Hall effect performance that rivals fluxgate technology at a cost-effective price point, with low offset drift of 6 ppm/°C ensuring stable measurements across the wide -40°C to +105°C operating temperature range. The flexible primary turns configuration (1 to 5 turns) allows the same sensor to cover multiple current ranges (15A, 7.5A, 5A, 3.75A, or 3A) without changing the sensor or redesigning the PCB.

    The single +5V supply and ratiometric voltage output simplify power system design and integrate easily with standard digital and analog electronics platforms. The 400 ns fast response time and 300 kHz bandwidth capture fast current transients and high-frequency components essential for protection and control applications.

    The compact PCB mount design with integrated primary conductors enables easy soldering and secure connections. The LPSR series offers a reference pin for external reference input and includes an overcurrent detection output for enhanced system integration.



    LEM LPSR 15-NP Target Applications

    The LPSR series is designed for industrial and power electronics applications including AC variable speed drives and servo motor drives, static converters for DC motor drives, battery supplied applications, uninterruptible power supplies (UPS), switched mode power supplies (SMPS), power supplies for welding applications, and solar inverters and renewable energy systems.



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Xenia
    Apr 13, 2026
    EXCELLENT AND FAST DROPSHIPPER! I will be placing more orders.
    Rashida
    Nov 14, 2025
    Great Company. Thank you Alice for your support.
    Randal
    Sep 07, 2025
    Good and reliable company!
    Hilliard
    Feb 15, 2024
    Part was perfect
    Shalana
    Dec 12, 2023
    Thank you for your carefulness and fast logistics.
     123
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
