Hot Products

LPSR 25-NP , LPSR25-NP

HOT OFFER// Authorized Distributor
  • MacroQuest Part#LPSR 25-NP
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $10.11 - $18.57
    / Pieces
    |
    Pieces(Min. Order)
    1-14 Pieces $18.57
    15-74 Pieces $13.26
    75-149 Pieces $12.53
    150-749 Pieces $11.42
    >=750 Pieces $10.11
    Quantity:
    In Stock
    $10.11
    (0 In Stock)
    Available
    $10.11
    LT: 10-16weeks
    (2000 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

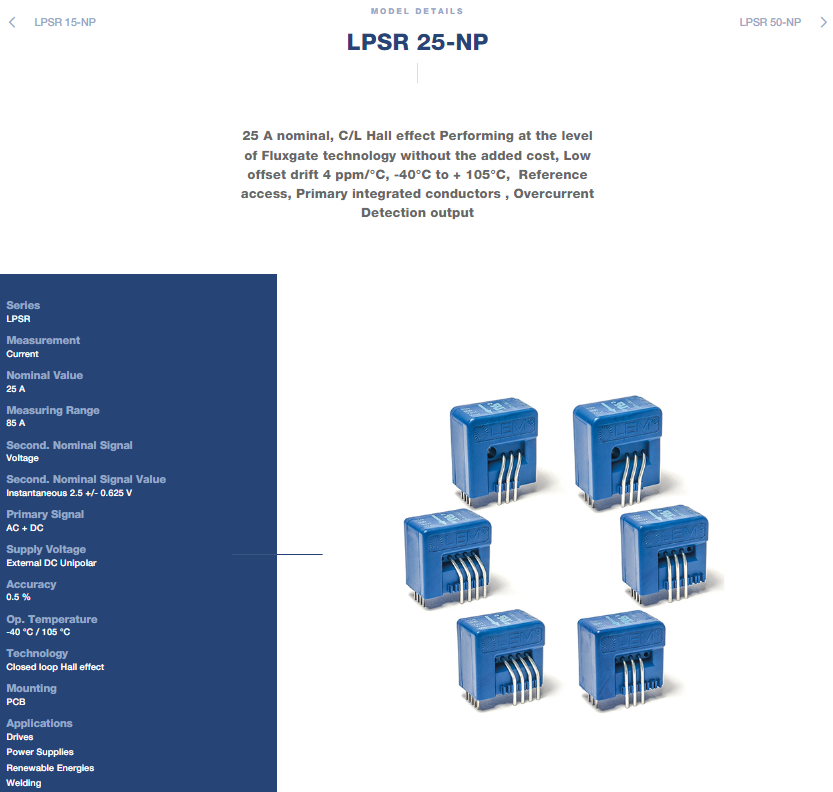

    LEM LPSR 25-NP LPSR Series Closed-Loop Current Transducer


    25A Rated Current x ±85A Measuring Range — Fluxgate-Level Accuracy in a Cost-Effective Closed-Loop Design



    LEM LPSR 25-NP Product Overview

    The LPSR 25-NP is a closed-loop Hall effect current transducer from LEM's LPSR series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary and secondary circuits . This PCB-mount sensor features an integrated primary conductor and delivers performance approaching that of fluxgate technology without the added cost . The design includes a reference access pin and an overcurrent detection output for enhanced system protection .

    Rated for 25 A nominal with an ±85 A measuring range, it outputs a ratiometric voltage of 2.5 V ± 0.625 V (instantaneous) with 0.5% accuracy and ±0.1% linearity . Response time is <0.4 µs and bandwidth is DC to 300 kHz . Supply voltage is +5 V (4.75 to 5.25 V) . Mass is light and operating temperature is -40°C to +105°C . Insulation test voltage is 4.3 kV with a creepage and clearance distance of 9.5 mm .



    LEM LPSR 25-NP Key Specifications

    Parameter

    Value

    Rated current (IPN)

    25 A

    Measuring range (IPM)

    0 … ±85 A

    Output signal (VOUT)

    2.5 V ± 0.625 V (ratiometric)

    Sensitivity

    25 mV/A

    Supply voltage (VC)

    4.75 … 5.25 V

    Accuracy (XG)

    ±0.5%

    Linearity (EL)

    ±0.1%

    Response time (tr)

    <0.4 µs

    Bandwidth (BW)

    DC … 300 kHz

    Insulation test voltage (Vd)

    4.3 kV

    Creepage and clearance

    9.5 mm

    Operating temp (TA)

    -40°C … +105°C

    Mounting

    PCB (through-hole)



    LEM LPSR 25-NP Key Advantages

    The LPSR 25-NP employs closed-loop Hall effect technology with a proprietary ASIC, delivering 0.5% accuracy and ±0.1% linearity while maintaining very low offset drift of 3 to 14 ppm/°C . The ±85 A range provides ample headroom for measuring nominal currents up to 25 A with transient overcurrent capability, while the <0.4 µs response time and 300 kHz bandwidth capture fast-changing switching and pulse waveforms with high fidelity . The multi-range capability allows four different primary connection configurations, enabling measurement of 1/2, 1/3, and 1/4 of IPN with enhanced resolution . The 4.3 kV insulation and 9.5 mm creepage distance ensure robust safety isolation, while the separate overcurrent detection output provides direct monitoring of abnormal current conditions at system level .



    LEM LPSR 25-NP Typical Applications

    AC variable speed drives and servo motor drives
    Static converters for DC motor drives
    Battery supplied applications
    Uninterruptible Power Supplies (UPS)
    Switched Mode Power Supplies (SMPS)
    Power supplies for welding applications
    Solar inverters



    Why Choose the LEM LPSR 25-NP?

    The LPSR 25-NP combines a 25 A nominal rating with an ±85 A measuring range and 0.5% accuracy in a compact, PCB-mount package . Manufactured by LEM, it delivers stable, accurate, and safe current measurement for industrial power conversion and motor control applications. The closed-loop Hall effect design offers fluxgate-like accuracy, excellent linearity, and low thermal drift, making it a reliable choice for critical systems where measurement integrity and protection are paramount. The integrated overcurrent detection and reference voltage access provide added functionality that simplifies system design and enhances safety .



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Quintin
    Jan 19, 2026
    Quick delivery and good quality
    Greta
    Dec 14, 2025
    Professional, easy to do business.
    Katy
    Jul 01, 2025
    Perfect Business Partner
    Maeve
    Jun 12, 2024
    Very reliable company
    York
    Oct 13, 2023
    Highly professional company
     12
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
