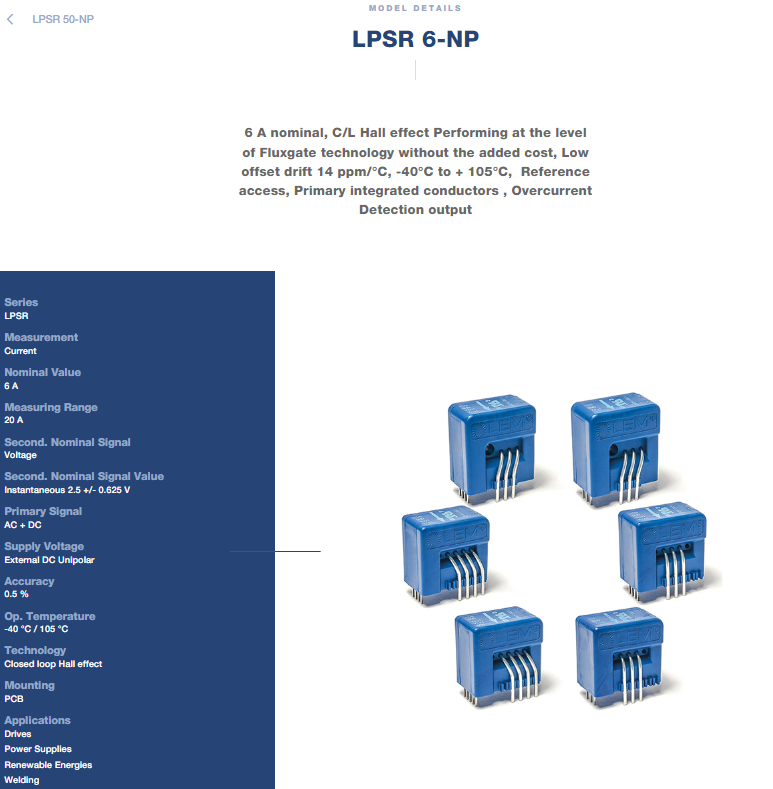

    LEM LPSR 6-NP LPSR Series Closed Loop Current Transducer

    LEM LPSR 6-NP Product Overview

    The LPSR 6-NP is a closed-loop Hall effect current transducer from LEM's LPSR Series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary circuit and the secondary circuit . This compact PCB-mount transducer features integrated primary conductors and is tailored for small-current measurement with integrated protection functionality . It delivers performance approaching fluxgate technology without the added cost .

    Rated for 6 A nominal with a measuring range of ±20 A, it outputs a ratiometric voltage signal of 2.5 ± 0.625 V with 0.45% accuracy . The sensitivity is 104.2 mV/A  with ±0.1% linearity . Response time is 0.4 µs and frequency bandwidth is 300 kHz . Supply voltage range is 4.75 V to 5.25 V DC . Operating temperature ranges from -40°C to +105°C . Insulation test voltage is 4.3 kV RMS at 50 Hz for 1 minute . The 9.5 mm creepage and clearance distance provides enhanced insulation for safety .



    LEM LPSR 6-NP Key Specifications

    Parameter

    Value

    Rated current (IPN)

    6 A

    Measuring range (IPM)

    ±20 A

    Output signal

    Voltage (2.5 ± 0.625 V)

    Supply voltage (VC)

    4.75 V to 5.25 V DC

    Sensitivity

    104.2 mV/A

    Accuracy (X)

    0.45 %

    Linearity (EL)

    ±0.1 %

    Response time (tr)

    0.4 µs

    Bandwidth (BW)

    300 kHz

    Insulation (Vd)

    4.3 kV RMS / 50 Hz / 1 min

    Operating temp (TA)

    -40°C to +105°C

    Mounting

    PCB (through hole)

    Technology

    Closed-loop Hall effect



    LEM LPSR 6-NP Key Advantages

    The LPSR 6-NP employs closed-loop Hall effect technology with LEM's proprietary ASIC, delivering 0.45% accuracy and ±0.1% linearity while providing galvanic isolation between primary and secondary circuits . The ±20 A measuring range provides ample headroom for overload conditions, while the 0.4 µs response time and 300 kHz bandwidth capture dynamic current signals with high fidelity.

    A key differentiator of the LPSR Series is its overcurrent detection output on a separate pin, allowing direct monitoring of abnormal current conditions at the system level . The reference voltage access pins (VREF IN & VREF OUT) enable easy connection to external reference voltage sources . The 4-pin primary footprint allows 4 different primary connection configurations, enabling measurement of 2 A or 3 A currents with higher resolution (using 1/3 or 1/2 of the rated current) . The extended -40°C to +105°C operating temperature range ensures reliable performance in harsh industrial environments . The 9.5 mm creepage and clearance distance with 4 primary pins provides higher insulation for safety compliance .



    LEM LPSR 6-NP Typical Applications

    AC variable speed and servo motor drives
    Static converters for DC motor drives
    Battery supplied applications
    Uninterruptible Power Supplies (UPS)
    Switched Mode Power Supplies (SMPS)
    Power supplies for welding applications
    Combiner box and MPPT systems
    Solar inverters



    Why Choose the LEM LPSR 6-NP?

    The LPSR 6-NP combines a 6 A rated current and ±20 A measuring range with ratiometric voltage output in a compact PCB-mount package. Manufactured by LEM, it delivers stable, accurate, and safe current measurement for industrial power and control applications where both measurement and protection are critical . The closed-loop Hall effect design provides fluxgate-like accuracy without the added cost, while the overcurrent detection output and multi-range configurability add valuable system-level functionality. The single +5 V supply and PCB mounting make it an ideal choice for space-constrained power electronics designs .



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Winslow
    Mar 26, 2026
    It's of good quality, I'm satisfied!
    Xenia
    Oct 25, 2025
    Professional company, friendly.
    Benita
    Jun 19, 2025
    A trusted partner
    Bekki
    Sep 16, 2024
    Great company, reliable and professional, easy to do business.
    Rosanna
    Mar 08, 2024
    I love this vendor! Shipping was fast to the US.
     123
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
    pop_close
    pop_main
    Stay In The Know
    Enter your email to hear from us about Product list, Latest Products and Customer application examples!
