LT 1005-S/SP29 , LT1005-S/SP29

HOT OFFER// Authorized Distributor
  • MacroQuest Part#LT 1005-S/SP29
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $342.71 - $498.12
    / Pieces
    |
    Pieces(Min. Order)
    1-9 Pieces $498.12
    10-49 Pieces $412.45
    50-99 Pieces $395.02
    100-499 Pieces $363.64
    >=500 Pieces $342.71
    Quantity:
    In Stock
    $342.71
    (0 In Stock)
    Available
    $342.71
    LT: 6-8 weeks
    (438 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

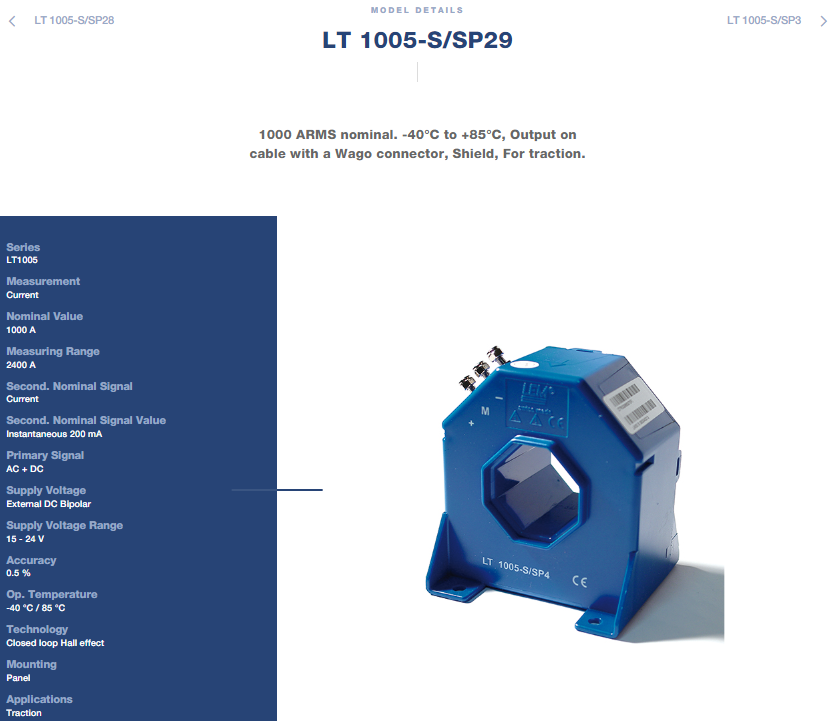

    LEM LT 1005-S/SP29 LT1005 Series Closed Loop Current Transducer

    LEM LT 1005-S/SP29 Product Overview

    The LT 1005-S/SP29 is a closed-loop Hall effect current transducer from LEM's LT1005 Series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary circuit and the secondary circuit . This panel-mount transducer features a 40.5 x 40.5 mm aperture for primary conductor crossing, a shield between primary and secondary, and secondary connection via a cable with a WAGO connector, making it specifically suitable for traction applications .

    Rated for 1000 A nominal with a measuring range of ±2400 A, it outputs a secondary current of 200 mA at nominal with ±0.5% accuracy and ±0.1% linearity . Response time is 1 µs and frequency bandwidth is DC to 150 kHz . Supply voltage range is ±15 V to ±24 V . Mass is 700 g and operating temperature ranges from -40°C to +85°C . The insulating plastic case is recognized according to UL 94-V0.



    LEM LT 1005-S/SP29 Key Specifications

    Parameter

    Value

    Rated current (IPN)

    1000 A

    Measuring range (IPM)

    ±2400 A

    Secondary nominal current (ISN)

    200 mA

    Conversion ratio (KN)

    1:5000

    Supply voltage (VC)

    ±15 V to ±24 V

    Accuracy (X) @ 25°C

    ±0.5 %

    Linearity error (EL)

    ±0.1 %

    Response time (tr) @ 90% of IPN

    1 µs

    Bandwidth (BW)

    DC to 150 kHz

    Aperture

    40.5 x 40.5 mm

    Operating temp (TA)

    -40°C to +85°C

    Mounting

    Panel (chassis mount)

    Secondary connection

    Cable with WAGO connector

    Shield

    Yes

    Case material

    UL 94-V0

    Applications

    Traction



    LEM LT 1005-S/SP29 Key Advantages

    The LT 1005-S/SP29 employs closed-loop Hall effect technology with an insulating plastic case recognized according to UL 94-V0, delivering excellent accuracy and very good linearity while providing galvanic isolation between primary and secondary circuits . The 40.5 x 40.5 mm aperture enables non-intrusive installation of primary conductors without disconnecting existing cables. The built-in shield provides enhanced immunity to external interference, critical for noisy traction environments . The ±2400 A measuring range accommodates significant overload conditions, while the 1 µs response time and 150 kHz bandwidth capture dynamic current signals in traction applications. The wide -40°C to +85°C operating temperature range ensures reliable performance in harsh railway environments. The cable with WAGO connector simplifies wiring in space-constrained installations .



    LEM LT 1005-S/SP29 Typical Applications

    Single or three phase inverters for railway traction
    Propulsion and braking choppers
    Propulsion converters for trains and locomotives
    Auxiliary converters for onboard power supply
    Battery chargers for railway rolling stock
    Railway fixed installations and trackside equipment
    Overcurrent protection and fault detection in traction systems
    Circuit breakers for railway infrastructure



    Why Choose the LEM LT 1005-S/SP29?

    The LT 1005-S/SP29 combines a 1000 A rated current and ±2400 A measuring range with a 200 mA closed-loop current output in a robust panel-mount package with a 40.5 x 40.5 mm aperture. Manufactured by LEM, it delivers stable, accurate, and safe current measurement specifically for railway traction applications. The closed-loop Hall effect design provides exceptional accuracy and linearity with low temperature drift, while the built-in shield and WAGO connector with cable output simplify installation and system integration . The extended -40°C to +85°C operating temperature range ensures reliable operation in demanding rail environments, making it an ideal choice for propulsion, braking, and auxiliary converter systems.



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Hogan
    Apr 05, 2026
    GREAT PARTS,GREAT SERVICE.
    Paulina
    Jan 08, 2026
    Perfect everything.
    Uriah
    Jun 06, 2025
    Good supplier, met my target price, quick ship
    Kathie
    May 31, 2025
    Excellent Company with good renown here.
    Rudolf
    May 21, 2024
    Good supplier, nice to work with!
     123
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
    pop_close
    pop_main
    Stay In The Know
    Enter your email to hear from us about Product list, Latest Products and Customer application examples!
