LT 1005-T , LT1005-T

Second. Nominal Signal[Instantaneous:Current 200 mA]
  • MacroQuest Part#LT 1005-T
  • ManufacturerLEM
  • Standard Lead TimeNA
  • Part StatusActive
    • $285.72 - $371.42
    / Pieces
    |
    Pieces(Min. Order)
    1-9 Pieces $371.42
    10-49 Pieces $346.28
    50-99 Pieces $314.32
    >=100 Pieces $285.72
    Quantity:
    In Stock
    $285.72
    DC: within 2 years
    (3 In Stock)
    Available
    $285.72
    LT: 6-8 weeks
    (200 In Stock)
    $0.00
    Selected List
    0
    No Selected Products
    Payment:
    PayPal
    T/T
    Bank Transfer
    Digital Commerce Bank
    SEPA Payment
    US Payment Account
    Deutsche Bank AG
    Deutsche Bank AG, Tokyo Account
    Credit Card/Debit Card
    Login to Order Request Quote
    Description FAQ Review
    Description

    LEM LT 1005-T LT1005 Series Closed Loop Current Transducer

    LEM LT 1005-T Product Overview

    The LT 1005-T is a closed-loop Hall effect current transducer from LEM's LT1005 Series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary circuit and the secondary circuit . This panel-mount transducer features an integrated primary busbar and is suitable for industrial and railway traction applications .

    Rated for 1000 A nominal with a measuring range of ±2000 A, it outputs a secondary current of 200 mA at nominal with ±0.4% accuracy and <0.1% linearity . Response time is <1 µs and frequency bandwidth is DC to 150 kHz . Supply voltage range is ±15 V to ±24 V DC . Mass is 1.2 kg and operating temperature ranges from -10°C to +85°C . Insulation test voltage is 12 kV RMS at 50 Hz for 1 minute . The device meets EN 50155 railway standards .

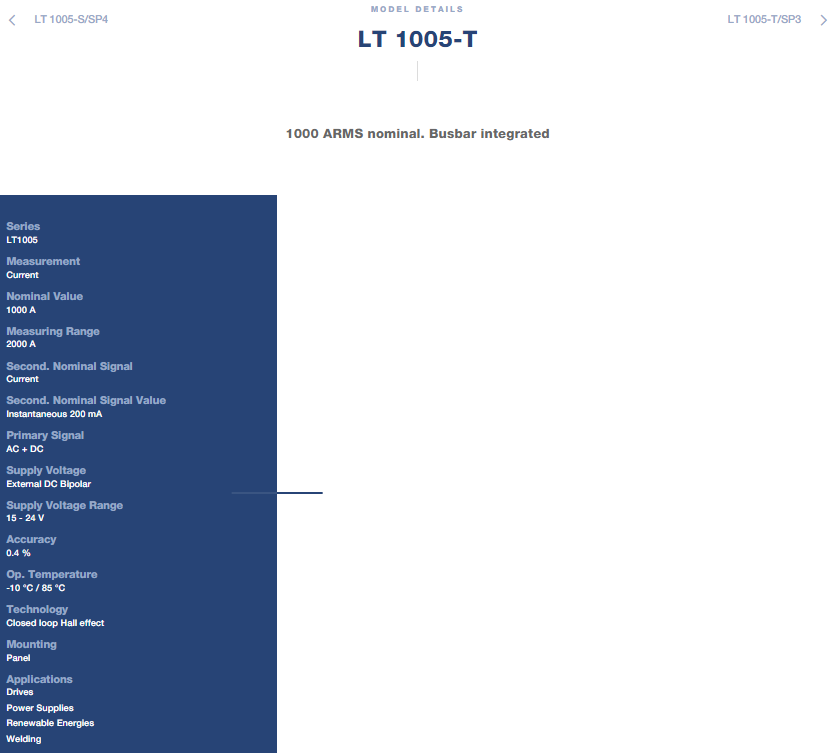

    LEM LT 1005-T Key Specifications

    Parameter

    Value

    Rated current (IPN)

    1000 A

    Measuring range (IPM)

    ±2000 A

    Secondary nominal current (ISN)

    200 mA

    Conversion ratio (KN)

    1:4000

    Supply voltage (VC)

    ±15 V to ±24 V

    Accuracy (X) @ 25°C

    ±0.4 %

    Linearity (EL)

    < 0.1 %

    Offset current (IO) @ 25°C

    ±0.25 mA typical

    Response time (tr)

    < 1 µs

    Bandwidth (BW)

    DC to 150 kHz

    Insulation (Vd)

    12 kV RMS / 50 Hz / 1 min

    Operating temp (TA)

    -10°C to +85°C

    Mass (m)

    1.2 kg

    Mounting

    Panel

    Secondary connection

    UNC 8 threaded studs

    Case material

    UL 94-V0

    Standards

    EN 50155



    LEM LT 1005-T Key Advantages

    The LT 1005-T employs closed-loop Hall effect technology with an insulating plastic case recognized according to UL 94-V0, delivering ±0.4% accuracy and <0.1% linearity while providing galvanic isolation between primary and secondary circuits . The integrated busbar simplifies installation and ensures reliable primary connections . The ±2000 A measuring range accommodates significant overload conditions, while the <1 µs response time and 150 kHz bandwidth capture dynamic current signals in drive and power conversion applications . The wide -10°C to +85°C operating temperature range ensures reliable performance in demanding industrial and railway environments . The design offers excellent accuracy, very good linearity, low temperature drift, high immunity to external interference, no insertion losses, and current overload capability . Secondary connections are made via UNC 8 threaded studs for secure wiring .



    LEM LT 1005-T Typical Applications

    AC variable speed drives and servo motor drives
    Static converters for DC motor drives
    Battery supplied applications
    Uninterruptible Power Supplies (UPS)
    Switched Mode Power Supplies (SMPS)
    Power supplies for welding applications
    Combiner box and MPPT systems
    Renewable energy systems



    Why Choose the LEM LT 1005-T?

    The LT 1005-T combines a 1000 A rated current and ±2000 A measuring range with a 200 mA closed-loop current output in a robust panel-mount package with an integrated busbar. Manufactured by LEM, it delivers stable, accurate, and safe current measurement for industrial and traction applications. The closed-loop Hall effect design provides exceptional accuracy and linearity with low temperature drift, while the integrated busbar simplifies installation and system integration. The wide frequency bandwidth and fast response time make it an ideal choice for dynamic current monitoring in motor drives, power supplies, and power conversion systems .



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Whittaker
    Mar 02, 2026
    Thanks for your prompt & reliable service.
    Harrison
    Sep 22, 2025
    It's comfortable doing business with you.
    Eranthe
    May 03, 2025
    The service provided by this company is exceptional, timely and professional, truly meeting the high standards that I expect.
    William
    Mar 31, 2025
    Very good cooperation
    Nuen
    Aug 12, 2024
    The quality is very good
     123
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
