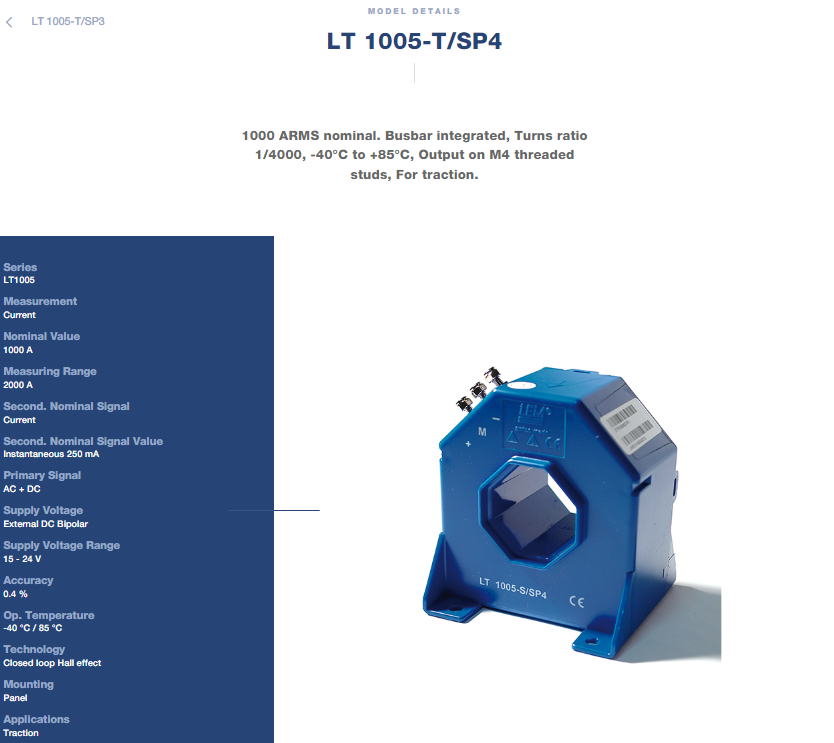

    LEM LT 1005-T/SP4 LT Traction Series Closed Loop Current Transducer

    LEM LT 1005-T/SP4 Product Overview

    The LT 1005-T/SP4 is a closed-loop Hall effect current transducer from LEM's LT Traction Series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary circuit and the secondary circuit. This panel-mount transducer features an integrated busbar and is specifically designed for railway traction applications.

    Rated for 1000 A nominal with a measuring range of ±2000 A, it outputs a secondary current of 250 mA at nominal with 0.4% accuracy and <0.1% linearity. The conversion ratio is 1:4000. Response time is <1 µs and frequency bandwidth is DC to 150 kHz. Supply voltage range is ±15 V to ±24 V. Mass is 1.2 kg and operating temperature ranges from -40°C to +85°C. Insulation test voltage is 12 kV RMS at 50 Hz for 1 minute. The device meets EN 50155 railway standards.



    LEM LT 1005-T/SP4 Key Specifications

    Parameter

    Value

    Rated current (IPN)

    1000 A

    Measuring range (IPM)

    ±2000 A

    Secondary nominal current (ISN)

    250 mA

    Conversion ratio (KN)

    1:4000

    Supply voltage (VC)

    ±15 V to ±24 V

    Accuracy (XG) @ IPN, 25°C

    ±0.4 %

    Linearity (EL)

    < 0.1 %

    Response time (tr) @ 90% of IPN

    < 1 µs

    Bandwidth (BW)

    DC to 150 kHz

    Insulation test voltage (Vd)

    12 kV RMS / 50 Hz / 1 min

    Operating temp (TA)

    -40°C to +85°C

    Mass (m)

    1.2 kg

    Mounting

    Panel

    Secondary connection

    M4 threaded studs

    Case material

    UL 94-V0

    Standards

    EN 50155



    LEM LT 1005-T/SP4 Key Advantages

    The LT 1005-T/SP4 employs closed-loop Hall effect technology with an insulating plastic case recognized according to UL 94-V0, delivering 0.4% accuracy and <0.1% linearity while providing galvanic isolation between primary and secondary circuits. The integrated busbar simplifies installation and ensures reliable primary connections. The ±2000 A measuring range accommodates significant overload conditions, while the <1 µs response time and 150 kHz bandwidth capture dynamic current signals in traction applications. The wide -40°C to +85°C operating temperature range ensures reliable performance in harsh railway environments. The 12 kV RMS insulation ensures safe operation and protection for downstream equipment. The design offers excellent accuracy, very good linearity, low temperature drift, optimized response time, high immunity to external interference, and no insertion losses. Secondary connections are made via M4 threaded studs for secure and reliable wiring. The device is potted for enhanced environmental protection.



    LEM LT 1005-T/SP4 Typical Applications

    Single or three phase inverters for railway traction
    Propulsion and braking choppers
    Propulsion converters for trains and locomotives
    Auxiliary converters for onboard power supply
    Battery chargers for railway rolling stock
    Railway fixed installations and trackside equipment
    Overcurrent protection and fault detection in traction systems
    Circuit breakers for railway infrastructure



    Why Choose the LEM LT 1005-T/SP4?

    The LT 1005-T/SP4 combines a 1000 A rated current and ±2000 A measuring range with a 250 mA closed-loop current output in a robust panel-mount package with an integrated busbar. Manufactured by LEM, it delivers stable, accurate, and safe current measurement specifically for railway traction applications. The closed-loop Hall effect design provides exceptional accuracy and linearity with low temperature drift, while the integrated busbar simplifies installation and system integration. Compliance with EN 50155 railway standards ensures reliable operation in demanding rail environments, making it an ideal choice for propulsion, braking, and auxiliary converter systems.



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Xenia
    Jan 26, 2026
    Great vendor, fast shipment excellent parts !
    Ines
    Jun 07, 2025
    Great value for money!!new and original.
    Marvin
    Sep 20, 2024
    smooth order handling! Thanks
    Tania
    Jun 14, 2024
    I am very satisfied, good
    Macy
    May 25, 2024
    Good Company&Business Partner
     123
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
