    LEM LT 4000-T LT4000 Series Closed Loop Current Transducer

    LEM LT 4000-T Product Overview

    The LT 4000-T is a closed-loop Hall effect current transducer from LEM's LT4000 Series, designed for the electronic measurement of DC, AC, and pulsed currents with galvanic isolation between the primary circuit (high power) and the secondary circuit (electronic circuit). This panel-mount transducer features an integrated primary busbar and is specifically designed for high-current industrial applications.

    Rated for 4000 A nominal with a measuring range of ±6000 A, it outputs a secondary current of 800 mA at nominal with ±0.5% accuracy and <0.1% linearity. The conversion ratio is 1:5000. Response time is less than 1 µs with a di/dt accurately followed >50 A/µs, and frequency bandwidth is DC to 100 kHz. Supply voltage range is ±24 V (±5%). Mass is 12.1 kg and operating temperature ranges from -25°C to +70°C. Insulation test voltage is 6 kV RMS at 50 Hz for 1 minute. The device features an integrated primary busbar for reliable high-current connections and an isolated plastic case recognized according to UL 94-V0.

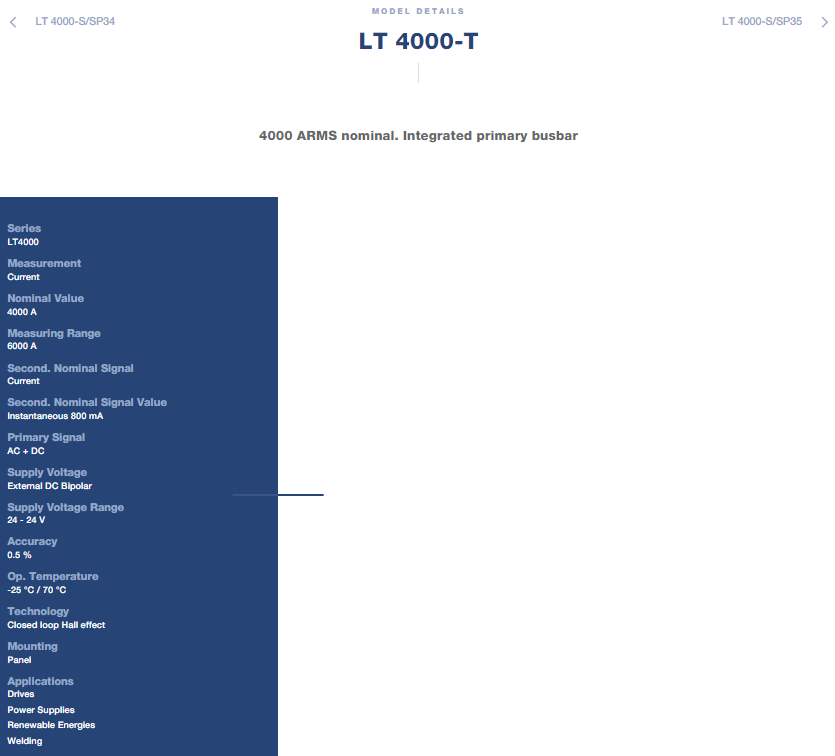

    LEM LT 4000-T Key Specifications

    Parameter

    Value

    Rated current (IPN)

    4000 A

    Measuring range (IPM)

    0 to ±6000 A

    Secondary nominal current (ISN)

    800 mA

    Conversion ratio (KN)

    1:5000

    Supply voltage (VC)

    ±24 V (±5%)

    Accuracy (XG) @ IPN, 25°C

    ±0.5 %

    Linearity (εL)

    < 0.1 %

    Offset current (IO) @ 25°C

    ±0.6 mA

    Thermal drift of IO (-25°C to +70°C)

    ±0.8 mA

    Response time (tr) @ 90% of IPmax

    < 1 µs

    Bandwidth (BW)

    DC to 100 kHz

    Insulation test voltage (Vd)

    6 kV RMS / 50 Hz / 1 min

    Secondary coil resistance @ 70°C

    57 Ω

    Operating temp (TA)

    -25°C to +70°C

    Storage temp (TS)

    -40°C to +85°C

    Mass (m)

    12.1 kg

    Mounting

    Panel (with integrated busbar)

    Standards

    EN 50178: 1997



    LEM LT 4000-T Key Advantages

    The LT 4000-T employs closed-loop Hall effect technology, delivering ±0.5% accuracy and <0.1% linearity while providing galvanic isolation between primary and secondary circuits. The integrated primary busbar simplifies installation and ensures reliable connections for high-current conductors. The ±6000 A measuring range accommodates significant overload conditions, while the <1 µs response time and 100 kHz bandwidth capture dynamic current signals in industrial drives and power conversion applications. The wide -25°C to +70°C operating temperature range ensures reliable performance in demanding industrial environments. The design offers very good linearity, low temperature drift, high immunity to external interference, and no insertion losses. The insulating plastic case is recognized according to UL 94-V0 for enhanced safety.



    LEM LT 4000-T Typical Applications

    AC variable speed drives and servo motor drives
    Static converters for DC motor drives
    Battery supplied applications
    Uninterruptible Power Supplies (UPS)
    Switched Mode Power Supplies (SMPS)
    Power supplies for welding applications
    Renewable energy systems
    Large industrial power conversion equipment



    Why Choose the LEM LT 4000-T?

    The LT 4000-T combines a 4000 A rated current and ±6000 A measuring range with a 800 mA closed-loop current output in a robust panel-mount package with an integrated busbar. Manufactured by LEM, it delivers stable, accurate, and safe current measurement for high-current industrial and renewable energy applications. The closed-loop Hall effect design provides exceptional accuracy and linearity with low temperature drift, while the integrated busbar simplifies installation and system integration. The fast response time and wide bandwidth make it an ideal choice for dynamic current monitoring in large motor drives, power supplies, and power conversion systems.



    FAQ
    Q
    What is the advantage of MacroQuest?
    A
    Our advantage is that we not only low prices, but we more suited to you.
    Our Keywords is
    New and original parts
    Fast Delivery
    Instock & available
    Short Leadtime
    30-Days returns
    ISO9001 Certification
    1 Year Warranty

    Q: I want to work with MacroQuest because of high quality. But I found your price too high and out of line with the prevailing market level, how should I do?
    A: MacroQuest has been devoted to offer a best price to our customers,if you want to buy it at a cheapper price. Please contact us directly to see if we can negotiate  a cheaper price rate. Or, send us an email with your T/P.
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q: Can MacroQuest offer NET terms?
    A: Yes we can. Please contact with your sales manager for more information.

    Q: How to Request a Quote?
    -A:You have three ways to request a quote:
    1.Choose an item using a search box or browsing through product categories.Click on "Request Quote" button on the Product page.
    2.Click here for feedback on our web.
    3.If you have a BOM list or want to email us directly, please contact:
    Simon Hsu
    simon@mymacroquest.com
    Alice Wang
    alice@mymacroquest.com

    Q：Are all the parts new and original?
    -A:Yes, all parts are new and original checked by our quality control department.

    Q：How long is your warranty?
    -A:We offer a 1 year warranty for form fit and function for MacroQuest stock.


    Q:  Can I use Credit Card/Debit Card payment for my orders on your website?
    -A:Yes, you can. you can pay on our company via Credit Card/Debit Card（Mastercard, Discover, Visa, American EXpress, Diners).

    Please select the first payment method-Paypal, then you will see Credit Card/Debit Card payment button in the lower right corner.



    My Account

    If you visit our website for the first time or do not have your login and password yet, please complete the new Customer Registration Form and register in our Customers’ database.
    If you have an account, enter your login and password and confirm these with the “Log in” button.
    If necessary, complete the contact person identification form.

    Log In / Registration
    Update Profile Information
    Change Password
    Update Addresses
    Update Payment Cards
    Update Order Preferences
    Update Product Notifications

    Product Information

    Choose an item using a search box or browsing through product categories. While searching, you can use your own previously entered product symbols/references.

    Searching for Products
    Pricing & Availability
    Packaging Options
    RoHS / Legislation
    Technical Support

    Placing Orders

    How to place an order if you have an account at MacroQuest?

    Checkout
    Invoicing & Payment
    Delivery Information
    Favourite
    Parts List (BOM) Upload
    Trade Account
    Quotes
    Quick Buy
    Saved Shopping Baskets
    Scheduled Orders
    Vouchers

    Viewing and Changing Orders

    The on-line orders system within the MacroQuest’s service works at real time, thanks to which it is immediately (at the moment of placing the order) possible to make a reservation for the selected product in the warehouse what it will be automatically noted in the on-line service.
    If you order a product, it will be reserved for you.
    You can make changes in quantity in the cart, by adding and removing items from the not closed order, before you direct them to realization with the “finish the order” button.

    Order Status & Tracking
    Request an Invoice
    Cancel an Order

    Returning a Product

    RMA# is required for all returns. They are issued for returns that are within 30 days of the initial purchase.

    Return Policy
    How to Return a Product


    Less
    Review
    Bryson
    Jan 25, 2026
    great shipping time, and great quality
    Vena
    Dec 07, 2025
    Honest and Excellent Company
    Madge
    Aug 04, 2025
    Easy transaction with seller, quick reply to queries.
    Kerry
    May 12, 2025
    Great, good quality
    April
    Oct 08, 2024
    Good reliable company!
     123
    Review
    ver_code
    1/3
    X
    Send your message to us
    elsa Alice
    Simon Alice elsa
